Countax C50-2Wd Fr730 - From 01-03-2022 - 23 Engine Assy C50

Description

Countax C Series

C50-2WD FR730 - Tractor

From 01-03-2022

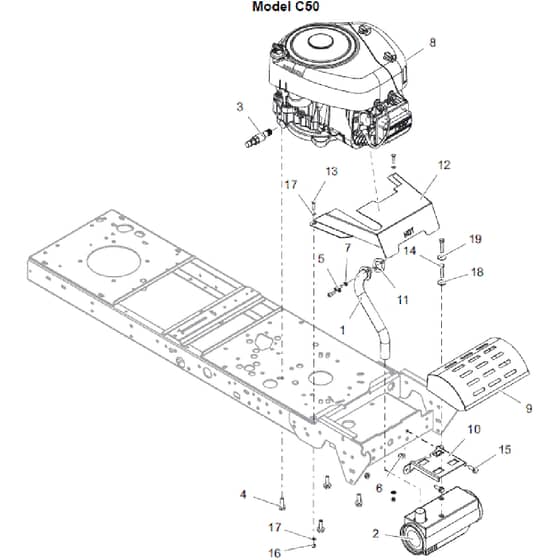

23 Engine Assy C50 Parts Diagram

	Part No.	Details
1	WE329600000 Available to backorder	Asm Exhaust Pipe Weldment B Alpha	£76.68 £63.90
2	WE401009900 Available to backorder	Asm Exhaust Box 2016	£259.92 £216.60
3	WE529473300 Available to backorder	Asm Engine Oil Drain Valve B	£33.20 £27.67
4	WE01848700 Available to backorder	38UNC X 1 14 Bolt BZP	£1.69 £1.41
5	WE02850900 Available to backorder	516UNC X 34 Socket Hd Ss	£0.67 £0.56
7	WE089420400 Available to backorder	M8 Spring Washer Single Coil Flat Sect.	£0.67 £0.56
8	WE159340400 Available to backorder	B 14.5Hp 31Q5070001H1 16 Amp Sgl Cyl	£726.95 £605.79
9	WE307199700 Available to backorder	2004 Countax Heatshield	£125.52 £104.60
11	WE528005200 Available to backorder	B Engine Gasket	£27.37 £22.81
12	WE549004700 Available to backorder	B Exhaust Shield B Series	£20.08 £16.73
13	WE028002900 Available to backorder	Bolt M6X25 Plated	£0.60 £0.50
14	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.00 £0.83
15	WE029428400 Available to backorder	M8X25Lg Hex Serrated Flange Screw	£1.39 £1.16
16	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
17	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.48 £0.40
18	8417 In stock	Washer M8 X 25 X 3 Unplated	£0.48 £0.40
19	WE08819800 In stock	Washer 516Id X 1Od Hd	£21.10 £17.58
