Countax C40M Mulcher - From 25-03-2019 - 24 Deck Bearing Housing

Description

Countax C Series

C40M MULCHER - Tractor

From 25-03-2019

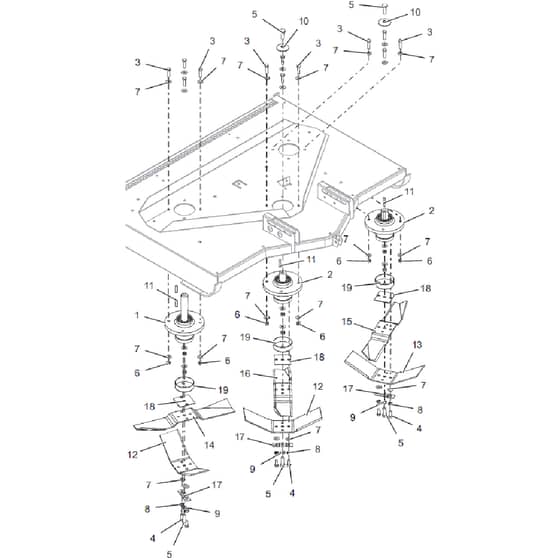

24 Deck Bearing Housing Parts Diagram

	Part No.	Details
1	WE40503507 In stock	Deck Bearing Housing Assy Long Shaft	£128.50 £107.08
2	WE40503607 In stock	Bearing Housing Assy Short Shaft	£119.30 £99.42
3	WE01935700 Available to backorder	M8 X 35mm Bolt Compressor 119	£1.28 £1.07
4	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.48 £0.40
5	8984 In stock	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.48 £0.40
6	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
7	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
8	6408 In stock	M8 Internally Serrated Shakeproof Washe	£0.48 £0.40
9	8412 In stock	M10 Internal Shakeproof Washer	£0.48 £0.40
10	WE08819900 In stock	Dome Washer 1.34Od X 38Id X 18Dome	£15.24 £12.70
11	WE09853401 Available to backorder	Key14Sq X 1 14 American Spec Rounded	£2.06 £1.72
12	WE16000100 In stock	15 Blade Bridge	£26.84 £22.37
13	WE16000300 Available to backorder	Blade 3 Hole	£25.46 £21.22
15	WE16000500 In stock	15 LH Hgm Blade	£26.28 £21.90
16	WE16000600 Available to backorder	12 Hgm Blade	£26.28 £21.90
17	WE27111200 In stock	Deck Pan Tab Washer	£4.18 £3.48
18	WE301903500 Available to backorder	Deck Locking Tab Washer	£22.39 £18.66
19	WE30831500 In stock	Deck Bearing Housing Slinger 2005	£11.96 £9.97
