Countax C40M Mulcher - From 25-03-2019 - 23 Deck Chains And Tension Assy

Description

Countax C Series

C40M MULCHER - Tractor

From 25-03-2019

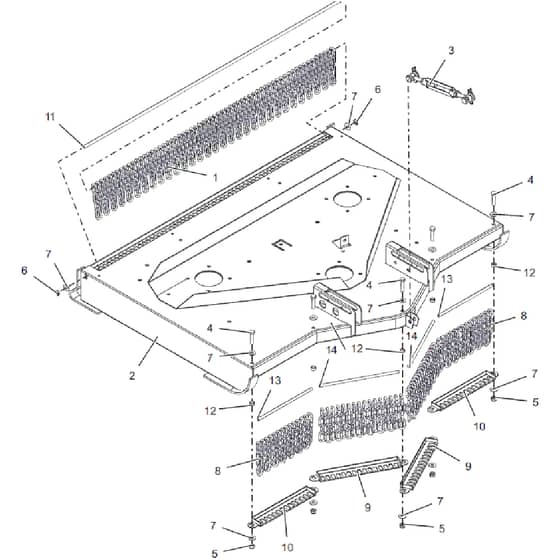

23 Deck Chains And Tension Assy Parts Diagram

	Part No.	Details
1	WE238000500 Available to backorder	36 Hgm Chain 7mm	£1.01 £0.84
2	WE327176400 Available to backorder	36 Hgm Deck Shell Assembly	£1,015.63 £846.36
4	WE01935700 Available to backorder	M8 X 35mm Bolt Compressor 119	£1.28 £1.07
5	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
6	WE07868700 Available to backorder	14 Starloc Washer	£0.56 £0.47
7	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
9	WE307178700 Available to backorder	Hgm Chain Support Long	£24.60 £20.50
11	WE313007200 Available to backorder	Hgm Rear Chain Rod	£51.66 £43.05
12	WE31302800 Available to backorder	Spacer 7mm X 516Id	£10.14 £8.45
13	WE318961100 Available to backorder	36 Hgm Chain Rod Short 7mm Dia	£10.80 £9.00
