Countax C40M Mulcher - From 25-03-2019 - 06 Body Link And Deck Tensioner

Name: Countax C40M Mulcher - From 25-03-2019 - 06 Body Link And Deck Tensioner
SKU: c40mmulcher_25032019_06-group
Price: 0.4 GBP
Availability: InStock

Part No. c40mmulcher_25032019_06-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C40M Mulcher - From 25-03-2019 - 06 Body Link And Deck Tensioner

Description

Countax C Series

C40M MULCHER - Tractor

From 25-03-2019

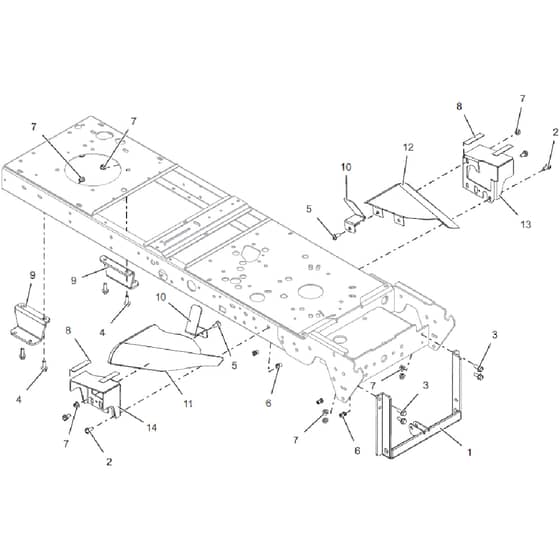

06 Body Link And Deck Tensioner Parts Diagram

	Part No.	Details
1	WE329700400 Available to backorder	Asm Deck Tension Cradle	£37.74 £31.45
2	WE019483500 Available to backorder	M8 X 16 Flange Bolt	£1.12 £0.93
3	WE019483600 In stock	M8 X 20 Flange Bolt	£0.48 £0.40
4	2175 In stock	M8X25 Flange Bolt	£0.48 £0.40
5	WE019485200 Available to backorder	M8X20 Flange Dome Head Screw Zinc & C	£0.68 £0.57
6	WE049382300 Available to backorder	M8 Hex Clench Nut	£0.88 £0.73
9	WE541140500 Available to backorder	Transaxle Mount Bracket	£37.51 £31.26
10	WE541148900 Available to backorder	Brkt Bonnet Side Panel Guide	£3.29 £2.74
11	WE549112259 Available to backorder	RH Body Link - Tractor 2013	£18.62 £15.52
12	WE549112359 Available to backorder	LH Body Link - MK4- Ariens Orange	£18.62 £15.52
13	WE549118100 Available to backorder	Body Link Rear LH Brkt	£32.81 £27.34
14	WE549118700 Available to backorder	Body Link Rear RH Brkt	£32.35 £26.96
