Countax C400 - From 01-01-2003 To 01-09-2003 - 22 He Rear Body

Name: Countax C400 - From 01-01-2003 To 01-09-2003 - 22 He Rear Body
SKU: c400_01012003_01092003_22-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C400 - From 01-01-2003 To 01-09-2003 - 22 He Rear Body

Description

Countax C Series

C400 - Tractor

From 01-01-2003 To 01-09-2003

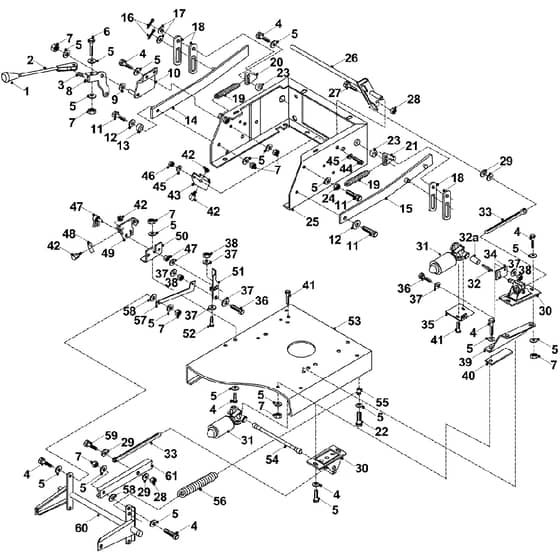

22 He Rear Body Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE14804800	Lever Knob	Out of stock	£8.16 £6.80
2	WE32708701	PTO Lever	Out of stock	£46.37 £38.64
3	WE25831100	Spring	In stock	£7.80 £6.50
4	2141	Set Screw	Out of stock	£0.64 £0.53
5	2192	Washer M8 X 21 X 1.6	In stock	£0.48 £0.40
6	WE01820700	Bolt 516UNF X 1.12 HT ZP	Out of stock	£0.53 £0.44
7	2094	Nyloc Nut 516 UNF	In stock	£0.36 £0.30
9	WE31305100	PTO Plate Spacer	Out of stock	£19.91 £16.59
10	WE32722500	PTO Engage Bridge	Out of stock	£20.90 £17.42
11	2183	Bolt 516UNF X 1.14 HT ZP	Out of stock	£0.54 £0.45
12	WE08925400	M8 X 40 X 3mm Heavy Guage Washer	Out of stock	£0.28 £0.23
13	WE183016900	Track Rod End Spacer 12.7Od X 10Id X 7	Out of stock	£10.21 £8.51
14	WE32720300	H.E. Sweeper Lift Arm RH	Out of stock	£103.44 £86.20
15	WE32721100	H.E. Sweper Lift Arm LH	In stock	Was £60.34 £50.28 Special Price £43.44 £36.20
16	2197	Split Pin 1 X 18 (Snowblade)	Out of stock	£0.48 £0.40
17	2114	Washer M12 X 24 X 1.6	Out of stock	£0.47 £0.39
18	WE30133500	H.E. Sweeper Lift Plate	Out of stock	£33.26 £27.72
20	WE32721300	Lift Triangle RH He	Out of stock	£25.16 £20.97
21	WE32721200	H.E. Sweeper Lift LH Triangle	Out of stock	£29.72 £24.77
23	WE31323500	H.E Lift Bar Spacer	Out of stock	£21.52 £17.93
24	WE04822200	Locknut 516UNF Hex ZP	Out of stock	£0.85 £0.71
25	WE327308500	Foot Control C Series Seatbox Manual	Out of stock	£153.00 £127.50
27	2065	Pull Rod Spring Sleeve 302601	In stock	£0.72 £0.60
28	2095	Nyloc Nut 38UNF	In stock	£0.48 £0.40
29	2110	Washer 38 T3 ZP	Out of stock	£0.14 £0.12
33	WE21921700	Drive Motor Lead Screw Assy	Out of stock	£23.90 £19.92
34	WE30133300	He Sweeper Anti Rotation Plate	Out of stock	£5.42 £4.52
36	WE02912200	M5 X 16 Sscrew	Out of stock	£0.42 £0.35
38	2047	Nut	In stock	£0.90 £0.75
39	WE30150200	Motor Mounting Plate	Out of stock	£7.46 £6.22
41	8905	Bolt M5 X 20mm	In stock	£0.40 £0.33
42	WE44908700	Limit Switch	Out of stock	£32.86 £27.38
43	WE30135500	He Sweeper Limit Switch Bracket	Out of stock	£5.34 £4.45
44	2106	Set Screw	In stock	£0.30 £0.25
45	2010	14 T4 Hp Washer	In stock	£0.35 £0.29
46	2185	Nyloc Nut14 UNF	Out of stock	£0.60 £0.50
50	WE30135900	Potentioniometer Mounting Plate	Out of stock	£5.93 £4.94
52	WE02913500	M5 X 25 Hex Head Sscrew Stainless Stee	Out of stock	£0.42 £0.35
53	WE32702400	Chassis Assy	Out of stock	£300.20 £250.17
54	WE44941400	He Flexible Drive Cable	Out of stock	£36.38 £30.32
55	WE31323400	Deck Spring Spacer	Out of stock	£3.05 £2.54
56	WE25885300	Deck Assist Spring	Out of stock	£13.19 £10.99
58	WE183529500	Cseries Deck Lift Pivot Spacer	Out of stock	£7.22 £6.02
59	8419	Bolt 38 X 1 14 UNF	In stock	£0.98 £0.82
60	WE327361700	2003 Rear Deck Hanging Brktcser Non He	Out of stock	£114.14 £95.12
