Countax C400 - From 01-01-2003 To 01-09-2003 - 10 PTO And Transmission Drive Post 90326

Name: Countax C400 - From 01-01-2003 To 01-09-2003 - 10 PTO And Transmission Drive Post 90326
SKU: c400_01012003_01092003_10-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C400 - From 01-01-2003 To 01-09-2003 - 10 PTO And Transmission Drive Post 90326

Description

Countax C Series

C400 - Tractor

From 01-01-2003 To 01-09-2003

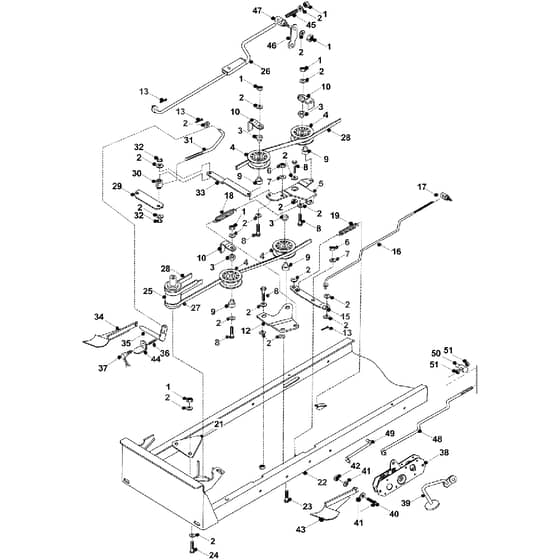

10 Pto And Transmission Drive Post 90326 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	2094	Nyloc Nut 516 UNF	In stock	£0.36 £0.30
2	2192	Washer M8 X 21 X 1.6	In stock	£0.48 £0.40
3	WE18831600	Spacer Jockey Wheel	In stock	£32.98 £27.48
4	WE20811500	PTO Jockey Pulley	In stock	£23.90 £19.92
6	2095	Nyloc Nut 38UNF	In stock	£0.48 £0.40
7	2110	Washer 38 T3 ZP	Out of stock	£0.14 £0.12
8	2186	Bolt 516UNF X 2 Zincclear UNF	Out of stock	£0.94 £0.78
9	WE31351100	Sweeper Jockey Cap	Out of stock	£29.33 £24.44
10	WE307187100	Belt Keeper	Out of stock	£14.53 £12.11
13	2197	Split Pin 1 X 18 (Snowblade)	Out of stock	£0.48 £0.40
15	WE27103800	Back Plate Assy 4.3 Bushel Sc	Out of stock	£4.68 £3.90
16	WE32708701	PTO Lever	Out of stock	£46.37 £38.64
17	WE18806100	Trunion (PTO Engage)	Out of stock	£7.46 £6.22
18	WE25812201	Brake Return Spring	Out of stock	£10.43 £8.69
19	WE25849600	Belt Tension Spring	Out of stock	£12.48 £10.40
21	WE329592500	C Series Clutch Plate Assembly	Out of stock	£46.22 £38.52
22	WE32702400	Chassis Assy	Out of stock	£300.20 £250.17
24	2141	Set Screw	Out of stock	£0.64 £0.53
25	WE31330500	Engine Pulleymag Stop Clutch	Out of stock	£243.48 £202.90
26	WE327020101	Foot Control C Series Brake Rod Assembly	In stock	£27.04 £22.53
27	WE2281110A	Transmission Belt	In stock	£58.21 £48.51
28	WE228001000	Transmission Belt	Out of stock	£62.64 £52.20
32	2012	19mm External Circlip C1A140019	In stock	£0.23 £0.19
34	WE327023701	Hydro Brake Pedal From 1101	Out of stock	£43.76 £36.47
36	WE25813801	Safety Switch Spring	In stock	£7.75 £6.46
37	WE44813400	Pull Safety Switch	Out of stock	£44.16 £36.80
38	WE401002100	Pedal Cassette Kit To Replace 405006000	Out of stock	£128.24 £106.87
39	WE327020600	99 Cseries Reverse Pedal	Out of stock	£47.12 £39.27
40	WE01820700	Bolt 516UNF X 1.12 HT ZP	Out of stock	£0.53 £0.44
43	WE327020000	99 Cseries Throttle Pedal	Out of stock	£53.21 £44.34
45	WE25808300	Brake Rod Spring	Out of stock	£2.51 £2.09
46	WE30138500	Brake Extension Plate	Out of stock	£32.14 £26.78
47	WE183017400	99 Cseries Brake Rod Trunnion	Out of stock	£8.36 £6.97
48	WE327021100	C Series Foot Control Forrev Rod Assy	Out of stock	£67.88 £56.57
49	WE327175600	D1850A2050 Fwd & Rev Cassette Rod Assy	Out of stock	£38.90 £32.42
50	WE183017300	Foot Control C Series Fwdrev Trunnion	Out of stock	£8.24 £6.87
51	2111	M8 Nyloc Nut	In stock	£0.28 £0.23
