Countax C40 - From 25-03-2019 - 21 Guarding Assy

Name: Countax C40 - From 25-03-2019 - 21 Guarding Assy
SKU: c40_25032019_21-group
Price: 0.4 GBP
Availability: InStock

Part No. c40_25032019_21-group

Description

Countax C Series

C40 - Tractor

From 25-03-2019

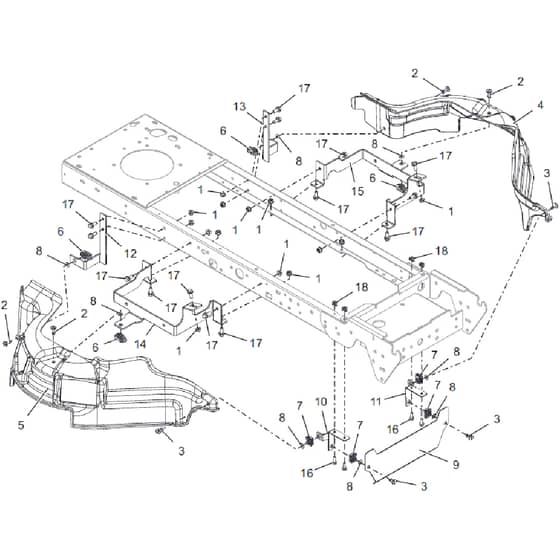

21 Guarding Assy Parts Diagram

	Part No.	Details
2	WE148020900 Available to backorder	Stud Slot Head 16.5mm Long	£3.35 £2.79
3	WE148996800 In stock	Stud ¼ Turn Slot Hd Dzus D1004050030	£7.76 £6.47
4	WE148996900 Available to backorder	MK4 Tractor Guard LH	£229.80 £191.50
5	WE148997000 Available to backorder	MK4 Tractor Guard RH	£229.80 £191.50
7	WE149499900 In stock	Dzus Receptacle	£4.50 £3.75
8	WE149500000 Available to backorder	Dzus 14 Turn Retain Washer	£2.06 £1.72
9	WE549007400 Available to backorder	Clutch Guard Front	£22.01 £18.34
10	WE549007500 Available to backorder	Upper Clutch Guard	£19.46 £16.22
11	WE549007600 Available to backorder	Clutch Guard Lower	£12.19 £10.16
12	WE549219300 Available to backorder	Brkt RH Rear Plastic Guard Mount	£29.57 £24.64
13	WE549219400 Available to backorder	Brkt LH Rear Plastic Guard Mount	£39.71 £33.09
14	WE549219600 Available to backorder	Frame RH Side Guard	£61.80 £51.50
16	WE019484600 Available to backorder	M6 X 20 Flange Bolts(Non Serrated)	£1.99 £1.66
17	WE019483600 In stock	M8 X 20 Flange Bolt	£0.48 £0.40
18	WE049381900 Available to backorder	M6 X 3mm Captive Nut	£1.19 £0.99
