Countax C40 - From 25-03-2019 - 16 Deck Lift Rear Cradel

Name: Countax C40 - From 25-03-2019 - 16 Deck Lift Rear Cradel
SKU: c40_25032019_16-group
Price: 0.28 GBP
Availability: InStock

Description

Countax C Series

C40 - Tractor

From 25-03-2019

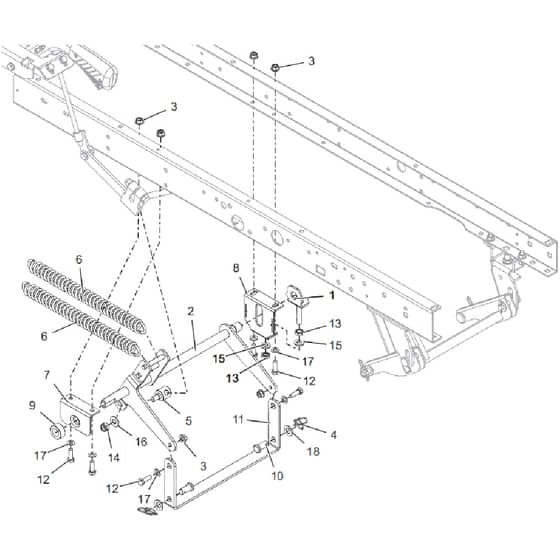

16 Deck Lift Rear Cradel Parts Diagram

	Part No.	Details
1	WE328961400 Out of stock	Diesel & Kawasaki Rear Deck Adjust Brkt	£34.04 £28.37
2	WE329600200 Out of stock	Assy 2013 Rear Deck Hanging Bracket	£218.52 £182.10
3	WE049383700 Out of stock	M8 Flange Nut	£0.83 £0.69
4	2195 In stock	Rue Clip	£1.21 £1.01
5	WE189497500 Out of stock	2002 Tractor Deck Level Trunion	£16.79 £13.99
6	WE25885300 Out of stock	Deck Assist Spring	£13.19 £10.99
7	WE302080300 Out of stock	Bracket Right Hand Rear Hanging	£13.85 £11.54
8	WE302080500 Out of stock	Brkt Left Hand Rear Hanging	£31.38 £26.15
9	WE31323500 Out of stock	H.E Lift Bar Spacer	£21.52 £17.93
10	WE31337200 In stock	Deck Lift Pin (Rear)	£14.06 £11.72
11	WE549129100 Out of stock	Brkt Rear Deck Lift Link	£44.88 £37.40
12	WE019479700 Out of stock	M8 X 25 Hex Set Screw Self Colour	£6.37 £5.31
13	2173 In stock	M10 Locknut	£0.38 £0.32
14	2038 In stock	M10 Nyloc Nut	£0.72 £0.60
15	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.34 £0.28
16	WE088004500 Out of stock	M10 X 24 X 2 Tl Washer	£0.89 £0.74
17	WE08819500 Out of stock	Washer 516 T3 Lp Zinc Plated	£1.36 £1.13
18	2114 Out of stock	Washer M12 X 24 X 1.6	£0.47 £0.39
