Countax C300 - From 01-01-2004 To 01-01-2009 - 5 PTO And Transmission Drive

Description

Countax C Series

C300 - Tractor

From 01-01-2004 To 01-01-2009

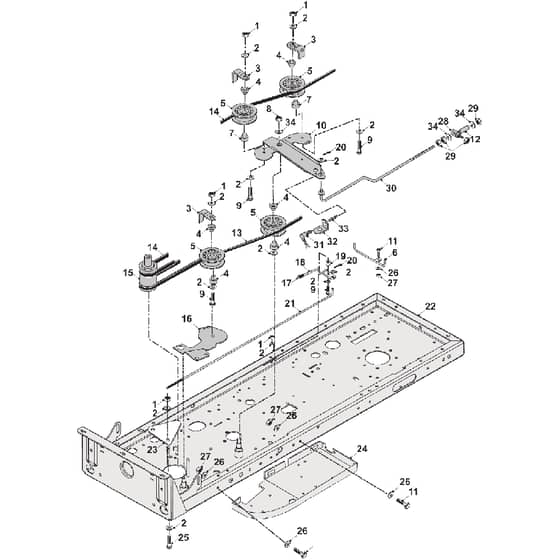

5 Pto And Transmission Drive Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
2	WE08819500 Available to backorder	Washer 516 T3 Lp Zinc Plated	£1.25 £1.04
3	WE307187100 Available to backorder	Belt Keeper	£13.34 £11.12
4	WE18831600 Available to backorder	Spacer Jockey Wheel	£43.90 £36.58
5	WE20811500 In stock	PTO Jockey Pulley	£23.06 £19.22
6	WE328955500 Available to backorder	C & Ww PTO Rear Belt Guide	£17.18 £14.32
7	WE31351100 Available to backorder	Sweeper Jockey Cap	£42.56 £35.47
8	2038 In stock	M10 Nyloc Nut	£0.72 £0.60
9	8416 In stock	Bolt M8 X 50mm	£1.19 £0.99
10	WE328955100 Available to backorder	2003 C Series Jockey Pulley Plate Assy	£77.33 £64.44
11	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
12	WE174008900 Available to backorder	MK3 Park Brake Engage Rod Sleeve	£21.32 £17.77
13	WE2281110A In stock	Transmission Belt	£56.12 £46.77
14	WE229503401 In stock	PTO Belt	£55.82 £46.52
15	WE31330500 Available to backorder	Engine Pulleymag Stop Clutch	£242.87 £202.39
16	WE307187000 Available to backorder	Tractor PTO Jockey Pulley Plate	£51.53 £42.94
18	WE327361800 Available to backorder	Deck Tension Lever C Series He 03	£35.74 £29.78
19	WE18833700 Available to backorder	Pivot (Deck Overlock)	£5.78 £4.82
20	2197 Available to backorder	Split Pin 1 X 18 (Snowblade)	£0.47 £0.39
21	WE318963201 Available to backorder	C Series PTO Rod	£72.62 £60.52
22	WE327023302 Available to backorder	Chassis Cseries	£516.00 £430.00
23	WE329592500 Available to backorder	C Series Clutch Plate Assembly	£46.22 £38.52
24	WE327177300 Available to backorder	Cseries LH Angled Running Board Assy 01	£78.54 £65.45
28	WE187186100 Available to backorder	MK3 Park Brake Engage Rod Trunnion	£8.24 £6.87
30	WE318952401 Available to backorder	C Series Hbrake Engage Rod 10mm Longer	£69.48 £57.90
31	WE44813400 Available to backorder	Pull Safety Switch	£40.54 £33.78
33	WE25812201 Available to backorder	Brake Return Spring	£9.58 £7.98
34	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.34 £0.28
