Countax C300 - From 01-01-2003 To 31-12-2007 - 08 He Dh Wiring Loom

Description

Countax C Series

C300 - Tractor

From 01-01-2003 To 31-12-2007

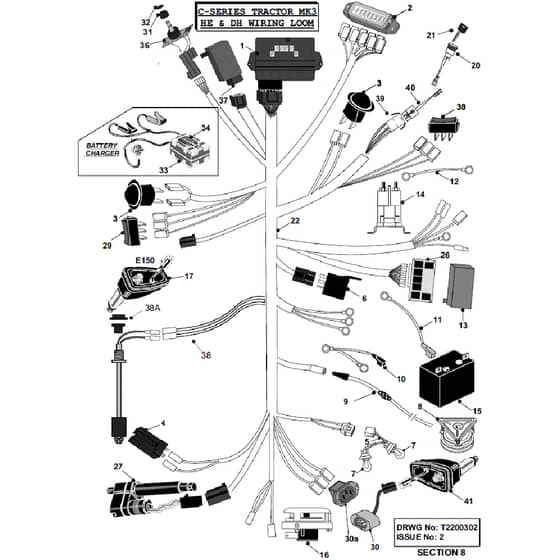

08 He Dh Wiring Loom Parts Diagram

	Part No.	Details
1	WE448017005 In stock	Kawasaki Engine Pcb Only (1b)	£259.19 £215.99
1	WE448009402 Available to backorder	Main Pcb + Fuel 20902 40915 (1a)	£248.76 £207.30
1	WE448002000 Available to backorder	P.C.B Board Hour Meter Only	£298.56 £248.80
2	WE301139400 Available to backorder	2002 Fusebox Holder	£27.17 £22.64
3	WE449879200 In stock	Wproof Single Pole Round Rocker Switch	£10.33 £8.61
4	WE449666602 Available to backorder	Psn Sensor N O Strong Magnet	£109.80 £91.50
5	WE448010400 Available to backorder	2003 Cseries Headlight Loom	£23.94 £19.95
6	WE449562700 In stock	Electric Relay 12V 30A With Diode	£18.70 £15.58
7	WE448008500 Available to backorder	Bulb C Series 2002 Py21W	£6.14 £5.12
8	WE44936100 In stock	Elec.Clutch Magstop	£486.89 £405.74
9	WE44947500 In stock	Clutch Loom Warner (9a)	£14.71 £12.26
10	WE448010000 Available to backorder	18 Battery Lead	£25.66 £21.38
11	WE44812402 Available to backorder	Earth Lead 2003 ( 1400032 )	£23.22 £19.35
12	WE44812500 Available to backorder	Start Lead 3923	£14.35 £11.96
13	WE148016700 Available to backorder	Ww He Pcb Case	£29.77 £24.81
14	WE44814801 Available to backorder	Starter Solenoid	£28.24 £23.53
15	WE458141201 Available to backorder	Lucas 12V Sealed Battery Lslc3412	£218.76 £182.30
16	WE44949500 Available to backorder	Seat Switch (Milsco Seat 97)	£60.60 £50.50
17	WE448007700 Available to backorder	Actuator Cw Potentiometer	£336.00 £280.00
17	WE448015700 Available to backorder	Actuator Hiwin (17b)	£454.04 £378.37
17	WE448008601 Available to backorder	La12 Actuator 121P0011001220 (17a)	£581.11 £484.26
20	WE44812900 In stock	Ignition Switch ( 6Q463 )	£58.38 £48.65
20	WE448010700 In stock	Ww Ign Switch (A018323Fm2) (20a)	£119.80 £99.83
20	WE449683300 Available to backorder	C Series Ignition Switch 2007 (20b)	£37.98 £31.65
21	WE528006900 In stock	Apem Ignition Key 2D138MK (21a)	£26.77 £22.31
21	WE52813000 In stock	Key Accurate (101)	£12.78 £10.65
22	WE449872700 Available to backorder	He Loom 08 ( 1400108 )	£287.88 £239.90
22	WE449663100 Available to backorder	C Dial Height Loom Start Switch 2006 (22a)	£221.04 £184.20
26	WE448009200 Available to backorder	He Pcb For La10 Actuators & Net 2003	£187.08 £155.90
26	WE448017200 Available to backorder	He Pcb C & A 18 Way Connector 2004 (26a)	£254.28 £211.90
27	WE449559500 Available to backorder	Actuator C Series Swpr (27a)	£384.38 £320.32
29	WE449879100 In stock	Wproof Double Pole Round Rocker Switch	£18.83 £15.69
30	WE448004800 Available to backorder	Net Empting Actuator Loom A2050	£62.76 £52.30
31	WE148010601 Available to backorder	Collet Knob 31mm Dia ( A3131069 )	£21.86 £18.22
36	WE449561501 Available to backorder	Dial Height Switch Pcb 04	£311.88 £259.90
37	WE449560602 Available to backorder	Dial Height 15 Pcb La12 0804 (37a)	£215.40 £179.50
37	WE449560702 Available to backorder	Dial Height Pcb Hiwin Actuator 0804 (37b)	£215.40 £179.50
37	WE449559602 Available to backorder	Deck Height Pcb 90	£216.00 £180.00
37	WE448017104 In stock	Dial Height Pcb Hiwin C Ww 06 0804 (37c)	£188.33 £156.94
38	WE449665300 Available to backorder	Fuel Level Sender 208mm Long 16mm Hole	£47.94 £39.95
38	WE149510900 Available to backorder	Fuel Level Sensor Seal Kit (38a)	£38.83 £32.36
39	WE449683400 Available to backorder	C Series Ignition Switch Loom (1400098 ) (39a)	£9.58 £7.98
39	WE449563200 In stock	Ignition Switch Subloom Cw Microswitch	£35.54 £29.62
41	WE449662200 Available to backorder	Act 1200N Hiwin Las 1110012	£591.98 £493.32
