Countax C300 - From 01-01-2003 To 01-09-2003 - 22 He Rear Body

Name: Countax C300 - From 01-01-2003 To 01-09-2003 - 22 He Rear Body
SKU: c300_01012003_01092003_22-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C300 - From 01-01-2003 To 01-09-2003 - 22 He Rear Body

Description

Countax C Series

C300 - Tractor

From 01-01-2003 To 01-09-2003

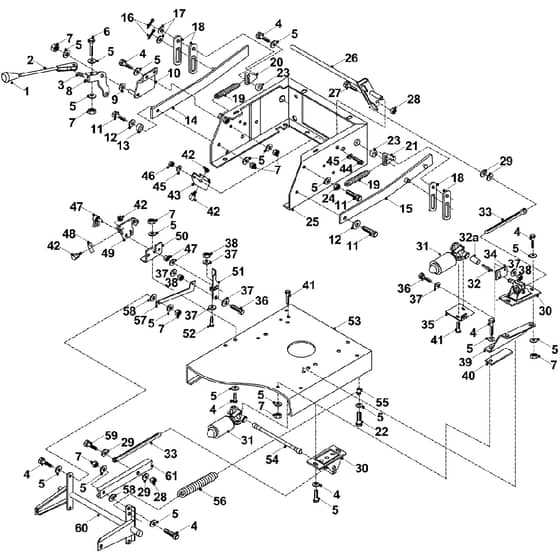

22 He Rear Body Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE14804800 Available to backorder	Lever Knob	£7.48 £6.23
2	WE32708701 Available to backorder	PTO Lever	£50.02 £41.68
3	WE25831100 Available to backorder	Spring	£7.52 £6.27
4	2141 In stock	Set Screw	£0.64 £0.53
5	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
6	WE01820700 Available to backorder	Bolt 516UNF X 1.12 HT ZP	£0.53 £0.44
7	2094 Available to backorder	Nyloc Nut 516 UNF	£0.26 £0.22
9	WE31305100 Available to backorder	PTO Plate Spacer	£57.76 £48.13
10	WE32722500 Available to backorder	PTO Engage Bridge	£20.90 £17.42
11	2183 Available to backorder	Bolt 516UNF X 1.14 HT ZP	£0.48 £0.40
12	WE08925400 Available to backorder	M8 X 40 X 3mm Heavy Guage Washer	£0.48 £0.40
13	WE183016900 Available to backorder	Track Rod End Spacer 12.7Od X 10Id X 7	£12.68 £10.57
14	WE32720300 Available to backorder	H.E. Sweeper Lift Arm RH	£132.48 £110.40
15	WE32721100 Available to backorder	H.E. Sweper Lift Arm LH	£113.03 £94.19
16	2197 Available to backorder	Split Pin 1 X 18 (Snowblade)	£0.47 £0.39
17	2114 In stock	Washer M12 X 24 X 1.6	£0.47 £0.39
18	WE30133500 Available to backorder	H.E. Sweeper Lift Plate	£30.56 £25.47
20	WE32721300 Available to backorder	Lift Triangle RH He	£25.16 £20.97
21	WE32721200 Available to backorder	H.E. Sweeper Lift LH Triangle	£29.72 £24.77
23	WE31323500 Available to backorder	H.E Lift Bar Spacer	£19.76 £16.47
24	WE04822200 Available to backorder	Locknut 516UNF Hex ZP	£0.85 £0.71
25	WE327308500 Available to backorder	Foot Control C Series Seatbox Manual	£159.41 £132.84
27	2065 In stock	Pull Rod Spring Sleeve 302601	£0.70 £0.58
28	2095 In stock	Nyloc Nut 38UNF	£0.48 £0.40
29	2110 Available to backorder	Washer 38 T3 ZP	£0.14 £0.12
33	WE21921700 Available to backorder	Drive Motor Lead Screw Assy	£23.90 £19.92
34	WE30133300 Available to backorder	He Sweeper Anti Rotation Plate	£5.42 £4.52
38	2047 In stock	Nut	£0.90 £0.75
39	WE30150200 Available to backorder	Motor Mounting Plate	£7.46 £6.22
41	8905 In stock	Bolt M5 X 20mm	£0.40 £0.33
42	WE44908700 Available to backorder	Limit Switch	£32.86 £27.38
43	WE30135500 Available to backorder	He Sweeper Limit Switch Bracket	£6.40 £5.33
44	2106 In stock	Set Screw	£0.30 £0.25
45	2010 In stock	14 T4 Hp Washer	£0.35 £0.29
46	2185 Available to backorder	Nyloc Nut14 UNF	£0.60 £0.50
50	WE30135900 Available to backorder	Potentioniometer Mounting Plate	£5.93 £4.94
52	WE02913500 Available to backorder	M5 X 25 Hex Head Sscrew Stainless Stee	£0.42 £0.35
53	WE32702400 Available to backorder	Chassis Assy	£257.28 £214.40
54	WE44941400 Available to backorder	He Flexible Drive Cable	£36.38 £30.32
55	WE31323400 Available to backorder	Deck Spring Spacer	£3.05 £2.54
56	WE25885300 Available to backorder	Deck Assist Spring	£19.90 £16.58
58	WE183529500 Available to backorder	Cseries Deck Lift Pivot Spacer	£11.14 £9.28
59	8419 In stock	Bolt 38 X 1 14 UNF	£0.68 £0.57
60	WE327361700 Available to backorder	2003 Rear Deck Hanging Brktcser Non He	£113.86 £94.88
