Countax C300 - From 01-01-1996 To 01-01-2003 - 28 Powered Grass Collector Net

Name: Countax C300 - From 01-01-1996 To 01-01-2003 - 28 Powered Grass Collector Net
SKU: c300_01011996_01012003_28-group
Price: 0.28 GBP
Availability: InStock

Part No. c300_01011996_01012003_28-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C300 - From 01-01-1996 To 01-01-2003 - 28 Powered Grass Collector Net

Description

Countax C Series

C300 - Tractor

From 01-01-1996 To 01-01-2003

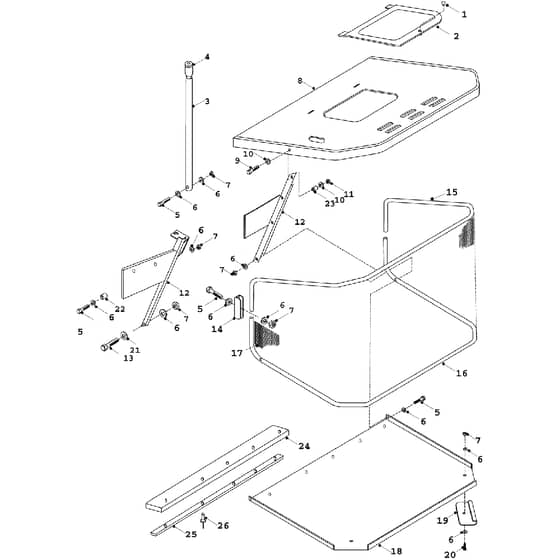

28 Powered Grass Collector Net Parts Diagram

	Part No.	Details
1	8999 In stock	M8 X 30 Roofing Bolt	£0.48 £0.40
2	WE08819800 In stock	Washer 516Id X 1Od Hd	£21.10 £17.58
3	WE307025600 Available to backorder	B	£65.16 £54.30
4	WE10811600 In stock	Bearing (PTO Housing)	£17.52 £14.60
5	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
6	WE228001200 In stock	Belt A49 Super Ii	£27.20 £22.67
7	8420 In stock	M10 X 25 Sscrew BZP	£0.48 £0.40
8	WE08819900 In stock	Dome Washer 1.34Od X 38Id X 18Dome	£15.24 £12.70
9	WE32727600 Available to backorder	3 Pulley (Non Keyed)	£24.25 £20.21
10	WE31306200 Available to backorder	PTO End Spacer	£36.54 £30.45
11	WE327816100 Available to backorder	300L PGC Main Body Welded Assy	£907.68 £756.40
12	WE30117500 Available to backorder	Sweeper Bearing Cap	£7.20 £6.00
13	2047 In stock	Nut	£0.34 £0.28
14	7274 In stock	M5 X 16mm Pozi Pan	£0.48 £0.40
15	WE32121800 In stock	Slinger	£16.93 £14.11
16	WE31323900 In stock	Brush Stock Spindle (Short)	£39.13 £32.61
17	WE327845100 Available to backorder	2008 Bag Ear Weld Assy	£43.01 £35.84
18	WE14833000 In stock	Bristle Boss	£2.20 £1.83
19	WE14936301 In stock	Webbed Yellow PGC Bristle	£1.52 £1.27
20	WE17400200 In stock	Brush Stock	£34.27 £28.56
21	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
22	2010 Available to backorder	14 T4 Hp Washer	£0.48 £0.40
23	WE14834100 In stock	Brush Drive Moulding Small	£4.57 £3.81
24	WE14832900 In stock	Brush Drive Moulding Large	£4.60 £3.83
25	8411 In stock	M6 X 45mm Hex Head Bright Zinc Plate	£0.48 £0.40
26	WE14804800 Available to backorder	Lever Knob	£7.74 £6.45
