Countax C300 - From 01-01-1996 To 01-01-2003 - 27 Powered Grass Collector

Name: Countax C300 - From 01-01-1996 To 01-01-2003 - 27 Powered Grass Collector
SKU: c300_01011996_01012003_27-group
Price: 0.28 GBP
Availability: InStock

Part No. c300_01011996_01012003_27-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C300 - From 01-01-1996 To 01-01-2003 - 27 Powered Grass Collector

Description

Countax C Series

C300 - Tractor

From 01-01-1996 To 01-01-2003

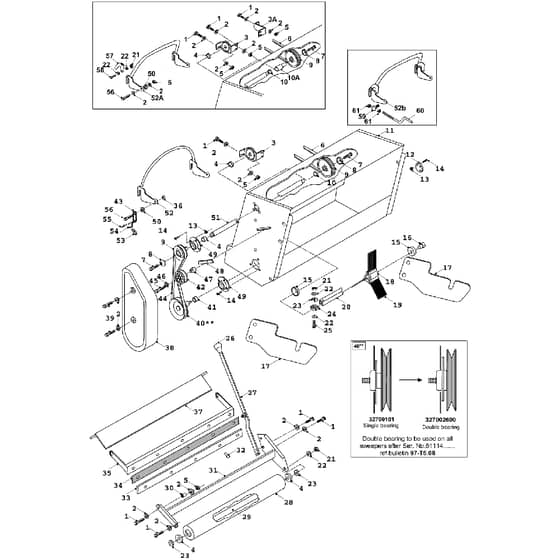

27 Powered Grass Collector Parts Diagram

	Part No.	Details
1	WE01902300 Available to backorder	Bolt M8X25mm	£0.40 £0.33
2	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
4	WE10811600 In stock	Bearing (PTO Housing)	£17.52 £14.60
5	2094 In stock	Nyloc Nut 516 UNF	£0.48 £0.40
6	WE228000300 Available to backorder	Belt Rdr97 A50 Super 2 (Rdrpgc)	£24.26 £20.22
7	2189 Available to backorder	Bolt 38 X 34 HT	£0.94 £0.78
8	WE08819900 In stock	Dome Washer 1.34Od X 38Id X 18Dome	£15.24 £12.70
9	WE32727600 Available to backorder	3 Pulley (Non Keyed)	£24.25 £20.21
10	WE31306200 Available to backorder	PTO End Spacer	£36.54 £30.45
10	WE183003900 Available to backorder	Tractor Sweeper Input Pulley Extension (10A)	£3.88 £3.23
12	WE30117500 Available to backorder	Sweeper Bearing Cap	£7.20 £6.00
13	2047 In stock	Nut	£0.34 £0.28
14	7274 In stock	M5 X 16mm Pozi Pan	£0.48 £0.40
15	WE32121800 In stock	Slinger	£16.93 £14.11
16	WE31323900 In stock	Brush Stock Spindle (Short)	£39.13 £32.61
17	WE30147000 In stock	Bag Ear	Was £40.37 £33.64 Special Price £11.99 £9.99
18	WE14833000 In stock	Bristle Boss	£2.20 £1.83
19	WE40835601 Available to backorder	Tractor Brush (Complete)	£127.20 £106.00
20	WE17400200 In stock	Brush Stock	£34.27 £28.56
21	2185 Available to backorder	Nyloc Nut14 UNF	£0.48 £0.40
22	2010 Available to backorder	14 T4 Hp Washer	£0.48 £0.40
23	WE14834100 In stock	Brush Drive Moulding Small	£4.57 £3.81
24	WE14832900 In stock	Brush Drive Moulding Large	£4.60 £3.83
25	WE01832400 Available to backorder	Bolt 14 X 1 34	£1.44 £1.20
26	WE14804800 Available to backorder	Lever Knob	£7.74 £6.45
28	WE32731900 In stock	Rollerpgccseries	£186.46 £155.38
29	WE183024400 In stock	C Series Sweeper 2000 Internal Shaft 200	£62.52 £52.10
30	WE31329200 Available to backorder	Cseries Roller Plate Bush	£33.17 £27.64
31	WE327172400 Available to backorder	Roller Carrier C Series 2000 Assembly	£130.56 £108.80
32	WE12860100 In stock	Rivet 4.8 X 16mm Alloy Pop 10314816	£0.35 £0.29
33	WE30146800 Available to backorder	PGC Scraper Plate	£6.72 £5.60
34	WE14937101 Available to backorder	Venturie PGC Rubber C Series Net	£4.24 £3.53
37	WE327016500 In stock	C Series Swp Flap Plate	Was £53.62 £44.68 Special Price £38.71 £32.26
38	WE148005400 In stock	Belt Guard C & 205	£65.05 £54.21
39	WE01821200 In stock	Bolt 516 X 2.34	£1.21 £1.01
41	WE10845500 In stock	Bearing 6203Zz	£14.17 £11.81
42	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
44	WE22832800 In stock	Belt Sweeper Vtype A36	£23.96 £19.97
45	2186 Available to backorder	Bolt 516UNF X 2 Zincclear UNF	£1.08 £0.90
46	WE31351100 Available to backorder	Sweeper Jockey Cap	£44.03 £36.69
47	WE31350400 Available to backorder	Sweeper Jockey Spacer	£13.39 £11.16
48	WE30121900 Available to backorder	Bearing Shield	£4.04 £3.37
49	WE27106601 In stock	Bearing Housing 17mm	£30.67 £25.56
50	8418 In stock	Nylon Washer	£0.48 £0.40
51	WE183005700 Available to backorder	98 Model Cseries PGC Idler Shaft	£116.76 £97.30
52	WE307177800 Available to backorder	Universal Sweeper Locking Plate April 01 (52B)	£41.86 £34.88
52	WE32733100 Available to backorder	Cseries Sweeper Locking Lever (97) (52A)	£95.52 £79.60
56	2183 In stock	Bolt 516UNF X 1.14 HT ZP	£0.58 £0.48
56	WE35937601 Available to backorder	Sweeper Height Decal 2003	£14.94 £12.45
57	WE30150300 Available to backorder	RH PGC Lever Lock	£11.63 £9.69
58	WE01844700 Available to backorder	Bolt 14X1In	£0.73 £0.61
59	WE183003800 In stock	PGC Belt Tension Adjust Trunnion	£33.49 £27.91
61	2190 Available to backorder	14 UNC Nut	£0.48 £0.40
