Countax C300 - From 01-01-1996 To 01-01-2003 - 21 He Rear Body

Description

Countax C Series

C300 - Tractor

From 01-01-1996 To 01-01-2003

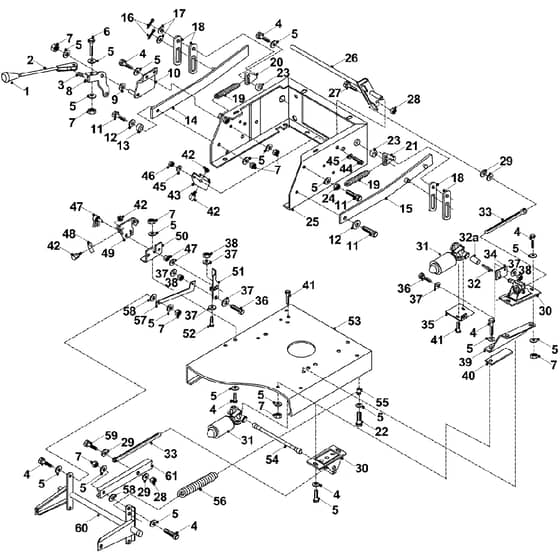

21 He Rear Body Assembly Parts Diagram

	Part No.	Details
1	WE14804800 Available to backorder	Lever Knob	£7.74 £6.45
2	WE32708701 Available to backorder	PTO Lever	£51.74 £43.12
3	WE25831100 Available to backorder	Spring	£7.78 £6.48
4	2141 In stock	Set Screw	£0.38 £0.32
5	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
6	WE01820700 Available to backorder	Bolt 516UNF X 1.12 HT ZP	£0.54 £0.45
7	2094 In stock	Nyloc Nut 516 UNF	£0.48 £0.40
9	WE31305100 Available to backorder	PTO Plate Spacer	£59.75 £49.79
10	WE32722500 Available to backorder	PTO Engage Bridge	£21.62 £18.02
11	2183 In stock	Bolt 516UNF X 1.14 HT ZP	£0.58 £0.48
13	WE183016900 Available to backorder	Track Rod End Spacer 12.7Od X 10Id X 7	£13.12 £10.93
14	WE32720300 Available to backorder	H.E. Sweeper Lift Arm RH	£132.48 £110.40
15	WE32721100 Available to backorder	H.E. Sweper Lift Arm LH	£109.32 £91.10
16	2197 In stock	Split Pin 1 X 18 (Snowblade)	£0.48 £0.40
17	2114 In stock	Washer M12 X 24 X 1.6	£0.48 £0.40
18	WE30133500 Available to backorder	H.E. Sweeper Lift Plate	£31.61 £26.34
20	WE32721300 Available to backorder	Lift Triangle RH He	£26.02 £21.68
21	WE32721200 Available to backorder	H.E. Sweeper Lift LH Triangle	£30.73 £25.61
23	WE31323500 Available to backorder	H.E Lift Bar Spacer	£20.44 £17.03
24	WE04822200 Available to backorder	Locknut 516UNF Hex ZP	£0.88 £0.73
25	WE327308500 Available to backorder	Foot Control C Series Seatbox Manual	£159.36 £132.80
27	2065 In stock	Pull Rod Spring Sleeve 302601	£0.84 £0.70
28	2095 In stock	Nyloc Nut 38UNF	£0.48 £0.40
29	2110 In stock	Washer 38 T3 ZP	£0.48 £0.40
33	WE21921700 Available to backorder	Drive Motor Lead Screw Assy	£24.72 £20.60
34	WE30133300 Available to backorder	He Sweeper Anti Rotation Plate	£5.60 £4.67
38	2047 In stock	Nut	£0.34 £0.28
39	WE30150200 Available to backorder	Motor Mounting Plate	£7.72 £6.43
41	8905 In stock	Bolt M5 X 20mm	£0.48 £0.40
42	WE44908700 Available to backorder	Limit Switch	£33.98 £28.32
43	WE30135500 Available to backorder	He Sweeper Limit Switch Bracket	£6.62 £5.52
44	2106 In stock	Set Screw	£0.48 £0.40
45	2010 Available to backorder	14 T4 Hp Washer	£0.48 £0.40
46	2185 Available to backorder	Nyloc Nut14 UNF	£0.48 £0.40
50	WE30135900 Available to backorder	Potentioniometer Mounting Plate	£6.13 £5.11
52	WE02913500 Available to backorder	M5 X 25 Hex Head Sscrew Stainless Stee	£0.43 £0.36
53	WE32702400 Available to backorder	Chassis Assy	£288.24 £240.20
54	WE44941400 Available to backorder	He Flexible Drive Cable	£37.63 £31.36
55	WE31323400 Available to backorder	Deck Spring Spacer	£3.16 £2.63
56	WE25885300 Available to backorder	Deck Assist Spring	£19.55 £16.29
58	WE183529500 Available to backorder	Cseries Deck Lift Pivot Spacer	£11.52 £9.60
59	8419 In stock	Bolt 38 X 1 14 UNF	£0.72 £0.60
60	WE327361700 Available to backorder	2003 Rear Deck Hanging Brktcser Non He	£113.88 £94.90
