Countax C300 - From 01-01-1996 To 01-01-2003 - 13 K55 Tuff Torq Transmission Mk1 Pre 90326

Name: Countax C300 - From 01-01-1996 To 01-01-2003 - 13 K55 Tuff Torq Transmission Mk1 Pre 90326
SKU: c300_01011996_01012003_13-group
Price: 0.32 GBP
Availability: InStock

Part No. c300_01011996_01012003_13-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C300 - From 01-01-1996 To 01-01-2003 - 13 K55 Tuff Torq Transmission Mk1 Pre 90326

Description

Countax C Series

C300 - Tractor

From 01-01-1996 To 01-01-2003

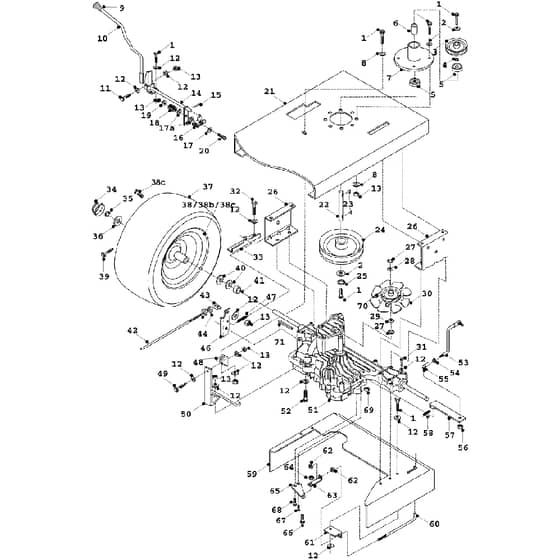

13 K55 Tuff Torq Transmission Mk1 Pre 90326 Parts Diagram

	Part No.	Details
1	2141 In stock	Set Screw	£0.38 £0.32
2	WE08819800 In stock	Washer 516Id X 1Od Hd	£21.10 £17.58
3	WE20870800 Available to backorder	3 Pulley (Capitol)	£70.68 £58.90
4	WE31306200 Available to backorder	PTO End Spacer	£36.54 £30.45
5	WE10811600 In stock	Bearing (PTO Housing)	£17.52 £14.60
6	WE31334800 Available to backorder	Spacer PTO Centre	£24.62 £20.52
7	WE40835800 Available to backorder	PTO Bearing Housing MK3 Comp.	£279.96 £233.30
9	WE14804800 Available to backorder	Lever Knob	£7.74 £6.45
10	WE32702600 Available to backorder	Gear Change Lever Assy	£82.68 £68.90
11	2188 In stock	Bolt 516 UNF X 1 34 BZP	£0.71 £0.59
12	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
13	2094 In stock	Nyloc Nut 516 UNF	£0.48 £0.40
14	WE32724300 Available to backorder	Tuff Torq Gear Crossover Assy	£94.68 £78.90
15	2197 In stock	Split Pin 1 X 18 (Snowblade)	£0.48 £0.40
16	WE30137800 Available to backorder	Friction Plate (Tuff Torq Hydro)	£42.49 £35.41
18	WE25808300 Available to backorder	Brake Rod Spring	£2.59 £2.16
21	WE32702450 Available to backorder	Tractor Chassis New Colour	£313.80 £261.50
22	WE31306000 Available to backorder	PTO Shaft	£94.80 £79.00
23	WE09823900 In stock	Key No 61	£0.48 £0.40
24	WE20870702 Available to backorder	7 PTO Pulley	£86.52 £72.10
25	6408 In stock	M8 Internally Serrated Shakeproof Washe	£0.48 £0.40
26	WE30131600 In stock	Manualhydro Gearbox Bracket	£25.52 £21.27
28	2097 In stock	Washer M14 Form A	£0.48 £0.40
30	WE40505401 In stock	K55 Pulley & Fan Kit	£77.93 £64.94
31	2029 In stock	Bolt 516UNF X 2.12 HT ZP	£0.91 £0.76
32	WE01854700 Available to backorder	Bolt 516X3 12In UNF	£1.12 £0.93
33	WE30138600 Available to backorder	Brake Stop Plate	£8.54 £7.12
34	WE14811800 In stock	Hub Cap (Moulded)	£6.90 £5.75
35	2012 In stock	19mm External Circlip C1A140019	£0.48 £0.40
36	WE30127800 Available to backorder	Hub Cap Washer	£1.61 £1.34
37	WE19802302 Available to backorder	P322 18X9508 Wanda	£124.80 £104.00
38	WE198001300 Available to backorder	2050 Rear Wheel Hub Hukey01 (38b)	£69.48 £57.90
38	WE08823500 Available to backorder	Starloc Washer 516Id X 58Od	£0.61 £0.51
38	WE198002200 Available to backorder	Studs For 20 Wheel Rim 2000 (38c)	£8.59 £7.16
39	WE14889200 Available to backorder	Wheel Valve	£11.30 £9.42
40	WE089423700 Available to backorder	Transaxle Washer 46 X 20 X 2	£1.99 £1.66
41	WE31324900 Available to backorder	17mm Wheel Spacer	£40.26 £33.55
42	WE32723900 Available to backorder	Discontinued	£22.46 £18.72
43	WE18325000 Available to backorder	Brake Rod Trunnion (Hydro)	£7.78 £6.48
44	2110 In stock	Washer 38 T3 ZP	£0.48 £0.40
46	WE30138500 Available to backorder	Brake Extension Plate	£33.24 £27.70
47	WE25813801 Available to backorder	Safety Switch Spring	£10.31 £8.59
48	WE30137700 Available to backorder	Torque Bracket	£19.34 £16.12
49	2146 In stock	Set Screw	£0.50 £0.42
50	WE32724400 Available to backorder	Torque Arm (Tuff Torq)	£38.44 £32.03
52	2186 Available to backorder	Bolt 516UNF X 2 Zincclear UNF	£1.08 £0.90
53	WE31325400 Available to backorder	Speed Select Rod (Tuff Torq Hydro)	£20.11 £16.76
55	WE32879600 Available to backorder	Rider M8 Gear Select Ball Joint	£22.70 £18.92
56	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
57	WE31206000 Available to backorder	Speed Control Arm (Tuff Torq)	£24.55 £20.46
58	WE05916800 Available to backorder	M6 Roll Pin	£1.94 £1.62
60	WE18322800 Available to backorder	Dump Valve Rod Tuff Torq	£9.74 £8.12
61	WE30138700 Available to backorder	Discontinued When Stock Gone	£2.16 £1.80
62	2030 In stock	14 UNC Nyloc	£0.48 £0.40
64	2185 Available to backorder	Nyloc Nut14 UNF	£0.48 £0.40
66	2106 In stock	Set Screw	£0.48 £0.40
68	WE01848700 Available to backorder	38UNC X 1 14 Bolt BZP	£1.69 £1.41
69	WE04917100 Available to backorder	M4 Nyloc Nut	£0.48 £0.40
70	WE22912300 In stock	Transmission Belt	£45.35 £37.79
71	2199 In stock	Keyrear Wheel	£2.75 £2.29
