Countax C25 4Wd Kawasaki Engine - From 01-01-2011 To 01-12-2013 - 3 Console

Name: Countax C25 4Wd Kawasaki Engine - From 01-01-2011 To 01-12-2013 - 3 Console
SKU: c254wdkawasakiengine_01012011_01122013_3c-group
Price: 0.16 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C25 4Wd Kawasaki Engine - From 01-01-2011 To 01-12-2013 - 3 Console

Description

Countax C Series

C25 4WD KAWASAKI ENGINE - Tractor

From 01-01-2011 To 01-12-2013

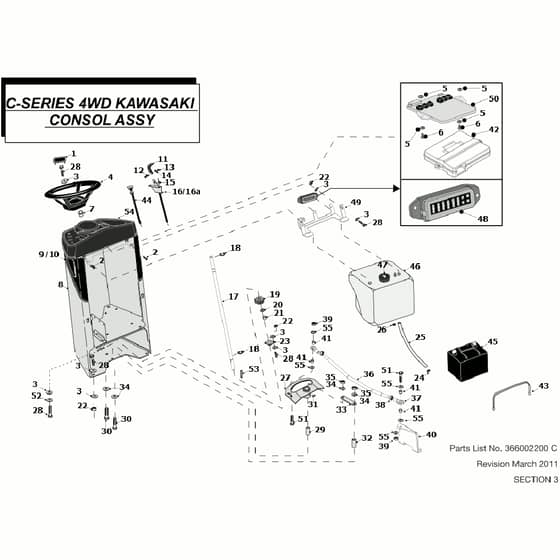

3 Console Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	2035 In stock	M5 X 16mm Flang Butt Hd Sckt Drive Scre	£0.41 £0.34
3	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
4	WE149591300 Available to backorder	Steering Wheel Assy (2013)	£164.62 £137.18
5	WE08952500 Available to backorder	M4 Washer Steel Flat Form C	£0.40 £0.33
6	WE029427000 Available to backorder	8 X 58 Pozi Pan Steel Hilo Screw	£0.53 £0.44
7	WE149588800 Available to backorder	Steering Column Upper Bush	£3.34 £2.78
8	WE327807101 Available to backorder	C Series Consol Welded Assembly 2008	£409.20 £341.00
9	WE148986300 Available to backorder	Cda Series Knee Pad RH	£62.54 £52.12
11	WE14810400 Available to backorder	Control Knob (Throttle Cable)	£16.28 £13.57
12	2045 In stock	M4 X 12 Pozi Pan Ss Zinc Plated	£0.19 £0.16
13	WE04826400 Available to backorder	M4 Nyloc T	£0.36 £0.30
15	WE12824400 Available to backorder	Pop Rivet 4.8mm X 10mm	£1.25 £1.04
16	WE528004600 Available to backorder	Wtwin	£50.66 £42.22
16	WE529471000 Available to backorder	Throttle Control Capro A2550 (16a)	£75.95 £63.29
18	WE07823800 Available to backorder	Circlip 58 External	£1.50 £1.25
19	WE213112100 In stock	Steering Gear 2050 Cser Wwk1850	£105.60 £88.00
20	WE08822700 Available to backorder	Washer 58 T3 Lp	£0.96 £0.80
21	WE18401500 Available to backorder	Steering Rod Spacer	£23.40 £19.50
22	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
23	WE10801700 In stock	Column Lower Bearing	£25.40 £21.17
24	WE11867100 Available to backorder	Hose Clip (Spring Type)	£0.90 £0.75
25	WE14803200 Available to backorder	Fuel Feed Pipe 80059	£11.52 £9.60
26	WE11856900 Available to backorder	Jubilee Clip (Fuel Tank Hose)	£2.40 £2.00
27	WE327877200 Available to backorder	4Wd Steering Quadrant Assembly	£267.36 £222.80
28	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
29	WE31337400 Available to backorder	Steering Rack Pivot	£24.52 £20.43
30	WE018005300 Available to backorder	M10 X 65mm Hex Head Bolt BZP	£0.67 £0.56
31	WE11808600 Available to backorder	Grease Nipple	£0.92 £0.77
32	WE31337500 Available to backorder	Steering Support Boss	£30.10 £25.08
34	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.34 £0.28
35	2038 In stock	M10 Nyloc Nut	£0.72 £0.60
36	WE183520400 Available to backorder	C Series 4Wd Steering Rod	£134.54 £112.12
37	WE108728000 Available to backorder	M12 Rod Joint 2050	£34.94 £29.12
39	WE049381100 Available to backorder	M12 Nyloc Nut	£0.48 £0.40
40	WE328961600 Available to backorder	4Wd Steering Arm Assembly	£40.56 £33.80
41	WE183012800 Available to backorder	2050 Steering Link Rod Spacer	£7.98 £6.65
42	WE149552000 Available to backorder	Pcb Case 2 Part	£9.46 £7.88
43	WE149499500 In stock	Battery Strap	£30.94 £25.78
44	WE529469800 Available to backorder	Choke Cable	£130.44 £108.70
45	WE458141201 Available to backorder	Lucas 12V Sealed Battery Lslc3412	£205.32 £171.10
46	WE14803000 Available to backorder	Fuel Tank Without Hole	£143.44 £119.53
47	WE01538400 In stock	Fuel Cap	£16.98 £14.15
48	WE301139400 Available to backorder	2002 Fusebox Holder	£26.26 £21.88
49	WE307205800 Available to backorder	Fuel Tank Bracket With Dialaheight	£21.12 £17.60
50	WE448017005 Available to backorder	Kawasaki Engine Pcb Only	£247.67 £206.39
51	WE019478800 Available to backorder	M12 X 60mm Bolt (Zinc)	£0.89 £0.74
52	6408 In stock	M8 Internally Serrated Shakeproof Washe	£1.34 £1.12
53	WE09823900 In stock	Key No 61	£1.22 £1.02
54	WE148986100 Available to backorder	Dashboard 2008	£13.88 £11.57
55	2114 In stock	Washer M12 X 24 X 1.6	£0.47 £0.39
