Countax C100-2Wd Fr730 - From 01-03-2022 - 21 Deck Lift Rear Cradle

Name: Countax C100-2Wd Fr730 - From 01-03-2022 - 21 Deck Lift Rear Cradle
SKU: c1002wdfr730_01032022_21-group
Price: 0.32 GBP
Availability: InStock

Part No. c1002wdfr730_01032022_21-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C100-2Wd Fr730 - From 01-03-2022 - 21 Deck Lift Rear Cradle

Description

Countax C Series

C100-2WD FR730 - Tractor

From 01-03-2022

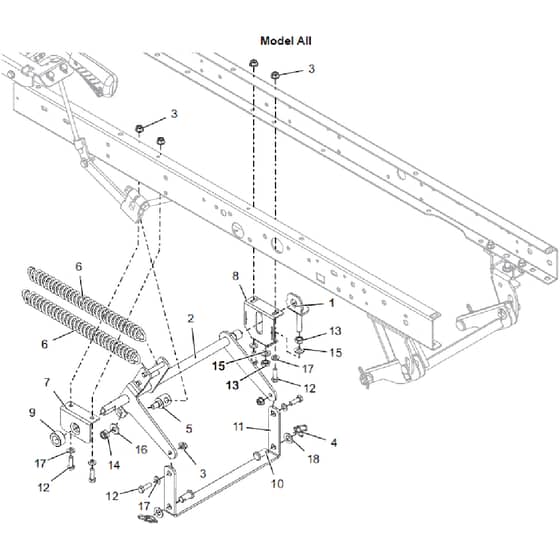

21 Deck Lift Rear Cradle Parts Diagram

	Part No.	Details
1	WE328961400 Available to backorder	Diesel & Kawasaki Rear Deck Adjust Brkt	£35.21 £29.34
2	WE329600200 Available to backorder	Assy 2013 Rear Deck Hanging Bracket	£278.76 £232.30
4	2195 In stock	Rue Clip	£1.25 £1.04
5	WE189497500 Available to backorder	2002 Tractor Deck Level Trunion	£26.23 £21.86
6	WE25885300 Available to backorder	Deck Assist Spring	£19.55 £16.29
7	WE302080300 Available to backorder	Bracket Right Hand Rear Hanging	£14.33 £11.94
8	WE302080500 Available to backorder	Brkt Left Hand Rear Hanging	£29.81 £24.84
9	WE31323500 Available to backorder	H.E Lift Bar Spacer	£20.44 £17.03
10	WE31337200 In stock	Deck Lift Pin (Rear)	£14.56 £12.13
11	WE549129100 Available to backorder	Brkt Rear Deck Lift Link	£43.99 £36.66
13	2173 In stock	M10 Locknut	£0.48 £0.40
14	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
15	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
16	2539 In stock	M10 X 24 X 2 Tl Washer	£0.48 £0.40
18	2114 In stock	Washer M12 X 24 X 1.6	£0.48 £0.40
