Countax B65 4Wd - From 09-09-2019 - 19 Pedals

Name: Countax B65 4Wd - From 09-09-2019 - 19 Pedals
SKU: b654wd_09092019_19-group
Price: 0.32 GBP
Availability: InStock

Part No. b654wd_09092019_19-group

Description

Countax B Series

B65 4WD - Tractor

From 09-09-2019

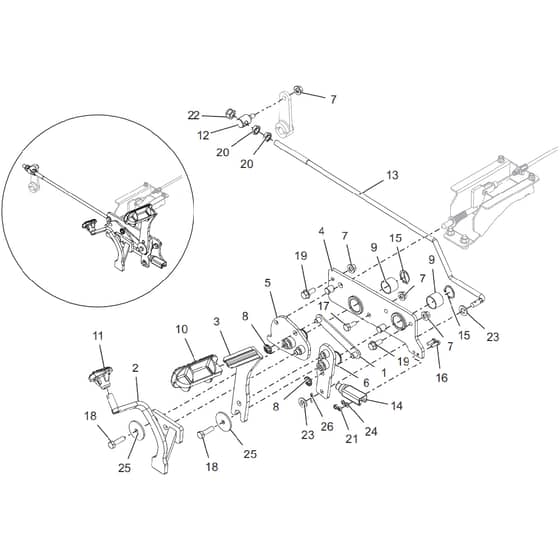

19 Pedals Parts Diagram

	Part No.	Details
1	WE307194300 Available to backorder	2003 Pedal Cassette Link	£64.56 £53.80
2	WE329603800 Available to backorder	Asm Reversel Pedal	£48.56 £40.47
3	WE329603900 Available to backorder	Asm Forward Pedal Top	£18.25 £15.21
4	WE329604200 Available to backorder	Asm Pedal Cassette	£83.88 £69.90
5	WE329604400 Available to backorder	Asm Reverse Pedal Bottom	£24.25 £20.21
6	WE329604500 Available to backorder	Asm Fwd Pedal Bottom	£48.62 £40.52
8	WE089418300 Available to backorder	38 Starlock Washer	£1.49 £1.24
9	WE109011700 Available to backorder	Chassis Pedal Boss Brg	£9.46 £7.88
10	WE148013700 Available to backorder	C Series Fwd Large Pedal Rubber 2002	£15.67 £13.06
11	WE148013800 In stock	C Series Small Rev Pedal Rubber 2002	£14.30 £11.92
12	WE186009500 Available to backorder	Trunnion Pedal Drive	£22.12 £18.43
14	WE449880800 In stock	Plunger Switch Nonc	£20.96 £17.47
15	WE078001500 Available to backorder	Circlip Fwdrev Pedal 24mm	£1.12 £0.93
17	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.48 £0.40
18	WE01935700 Available to backorder	M8 X 35mm Bolt Compressor 119	£1.28 £1.07
19	WE019483600 In stock	M8 X 20 Flange Bolt	£0.48 £0.40
20	2173 In stock	M10 Locknut	£0.48 £0.40
21	WE048001800 Available to backorder	M5 Half Nut Black Finish	£0.94 £0.78
22	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
23	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
26	2202 Available to backorder	18 X 12 Split Pin	£0.48 £0.40
