Countax B65 4Wd - From 09-09-2019 - 10 Body Link Deck Tensioners

Name: Countax B65 4Wd - From 09-09-2019 - 10 Body Link Deck Tensioners
SKU: b654wd_09092019_10-group
Price: 0.4 GBP
Availability: InStock

Part No. b654wd_09092019_10-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax B65 4Wd - From 09-09-2019 - 10 Body Link Deck Tensioners

Description

Countax B Series

B65 4WD - Tractor

From 09-09-2019

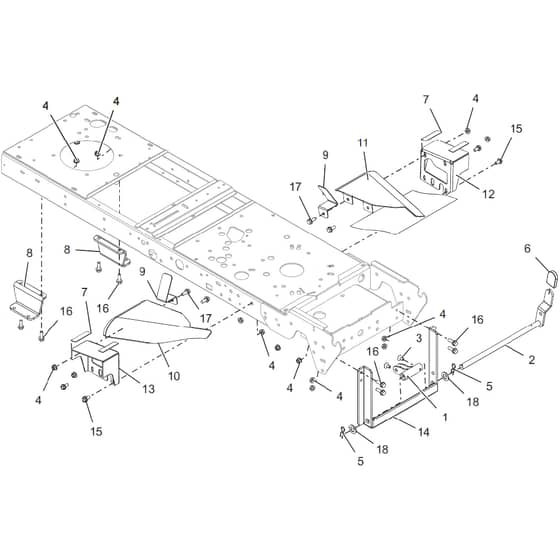

10 Body Link Deck Tensioners Parts Diagram

	Part No.	Details
1	WE329651000 Available to backorder	Asm Weld Sleeve 36 Hgm Deck Tens. MK4	£54.52 £45.43
2	WE329651100 Available to backorder	36 Hgm Deck Tensioner	£67.08 £55.90
3	WE029425400 In stock	M8 X 16 Csink Screw	£0.48 £0.40
5	WE06849100 In stock	2mm R Clip	£0.48 £0.40
6	WE149589500 Available to backorder	30mm X 6mmx40mm Pvc Flat Sleeve	£3.43 £2.86
8	WE541140500 Available to backorder	Transaxle Mount Bracket	£37.51 £31.26
9	WE541148900 Available to backorder	Brkt Bonnet Side Panel Guide	£3.29 £2.74
10	WE549112200 Available to backorder	RH Body Link Tractor 2013	£57.85 £48.21
11	WE549112300 Available to backorder	LH Body Link Tractor 2013	£79.32 £66.10
12	WE549118100 Available to backorder	Body Link Rear LH Brkt	£32.81 £27.34
13	WE549118700 Available to backorder	Body Link Rear RH Brkt	£32.35 £26.96
14	WE549122000 Available to backorder	36 Hgm Deck Tensioner Cradle	£116.04 £96.70
15	WE019483500 Available to backorder	M8 X 16 Flange Bolt	£1.12 £0.93
16	2175 In stock	M8X25 Flange Bolt	£0.48 £0.40
17	WE019483600 In stock	M8 X 20 Flange Bolt	£0.48 £0.40
18	WE088002600 Available to backorder	Zinc Plated M16 Washer Form B	£0.95 £0.79
