Countax B60 Mk4 - - 01 300 Litre Pgc

Name: Countax B60 Mk4 - - 01 300 Litre Pgc
SKU: countax_pgc_b60mk4___01-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Countax B Series

B60 MK4 - Power Grass Collector

From To -

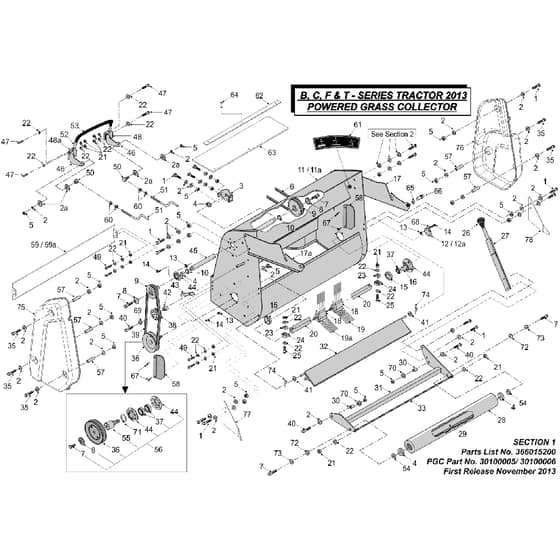

01 300 Litre Pgc Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.58 £0.48
2	8418 In stock	Nylon Washer (2a)	£1.26 £1.05
2	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
3	WE307025600 Out of stock	Zzc Series Idler Shaft Plate &	£62.64 £52.20
4	WE10811600 In stock	Bearing (PTO Housing)	£16.90 £14.08
5	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
6	WE228000200 Out of stock	PTO Belt	£28.69 £23.91
7	8420 In stock	M10 X 25 S.Screw BZP	£1.45 £1.21
8	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£14.76 £12.30
9	WE32727600 Out of stock	3 Pulley (Non Keyed)	£24.25 £20.21
11	WE327816100 Out of stock	300L PGC Main Body Welded Assy	£1,080.56 £900.47
11	WE327816159 Out of stock	300L PGC Main Body Welded Assy (11a)	£382.86 £319.05
12	WE30117500 Out of stock	Sweeper Bearing Cap	£7.20 £6.00
13	2047 In stock	Nut	£0.90 £0.75
14	7274 In stock	M5 X 16mm Pozi Pan	£0.40 £0.33
15	WE32121800 In stock	Slinger	£16.33 £13.61
16	WE31323900 In stock	Brush Stock Spindle (Short)	£37.78 £31.48
17	WE327845200 Out of stock	2008 Bag Ear Weld Assy (17a)	£60.22 £50.18
17	WE327845100 Out of stock	2008 Bag Ear Weld Assy	£43.01 £35.84
18	WE14833000 In stock	Bristle Boss	£2.11 £1.76
19	WE14936301 In stock	Webbed Yellow PGC Bristle	£1.72 £1.43
19	WE14898101 In stock	Yellow Sweeper Bristles Non We (19a)	£1.72 £1.43
20	WE17400200 In stock	Brush Stock	£33.08 £27.57
21	7578 In stock	Nut M6 Nyloc	£0.29 £0.24
22	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.64 £0.53
23	WE14834100 In stock	Brush Drive Moulding Small	£4.40 £3.67
24	WE14832900 In stock	Brush Drive Moulding Large	£4.42 £3.68
25	2482 In stock	M6 X 50 Bolt Hex Head BZP	£0.48 £0.40
26	WE14804800 Out of stock	Lever Knob	£7.75 £6.46
27	WE327171800 Out of stock	Sweep Roller Height Handle Ass	£148.01 £123.34
28	WE32731900 In stock	Roller-PGC-C-Series	£186.44 £155.37
29	WE183024400 Out of stock	C Series Sweeper 2000 Internal	£68.12 £56.77
30	WE183024300 Out of stock	A.C.D Sweeper 2000 Pivot Boss	£12.19 £10.16
31	WE327172400 Out of stock	Roller Carrier C Series 2000 A	£135.05 £112.54
32	WE327016500 In stock	C Series Swp - Flap Plate	£55.48 £46.23
33	WE528004401 Out of stock	C Series Sweeper Roller Scrape	£13.93 £11.61
34	WE148005400 In stock	Belt Guard C & 20.5	£68.48 £57.07
35	WE028662700 Out of stock	Bolt M8X65mm	£0.62 £0.52
36	WE209044100 In stock	Pulley 5 Sweeper	£60.26 £50.22
37	WE10845500 In stock	Bearing 6203Zz	£18.06 £15.05
38	WE20811500 In stock	PTO Jockey Pulley	£23.84 £19.87
39	WE22832800 Out of stock	Grass Collector Belt	£24.36 £20.30
40	8416 In stock	Bolt M8 X 50mm	£2.56 £2.13
41	WE08819500 Out of stock	Washer 5.16 T3 Lp Zinc Plated	£1.36 £1.13
42	WE31350400 Out of stock	Sweeper Jockey Spacer	£13.38 £11.15
43	WE30121900 Out of stock	Bearing Shield	£3.92 £3.27
44	WE27106601 In stock	Bearing Housing 17mm	£29.60 £24.67
45	WE183005700 Out of stock	98 Model C-Series PGC Idler Sh	£120.82 £100.68
46	WE307024500 Out of stock	Locking Handle Plate	£18.65 £15.54
47	2184 Out of stock	M6X16mm Set Screw	£1.74 £1.45
48	WE30149800 Out of stock	L.H PGC Lever Lock	£11.42 £9.52
48	WE30150300 Out of stock	R.H PGC Lever Lock (48a)	£11.62 £9.68

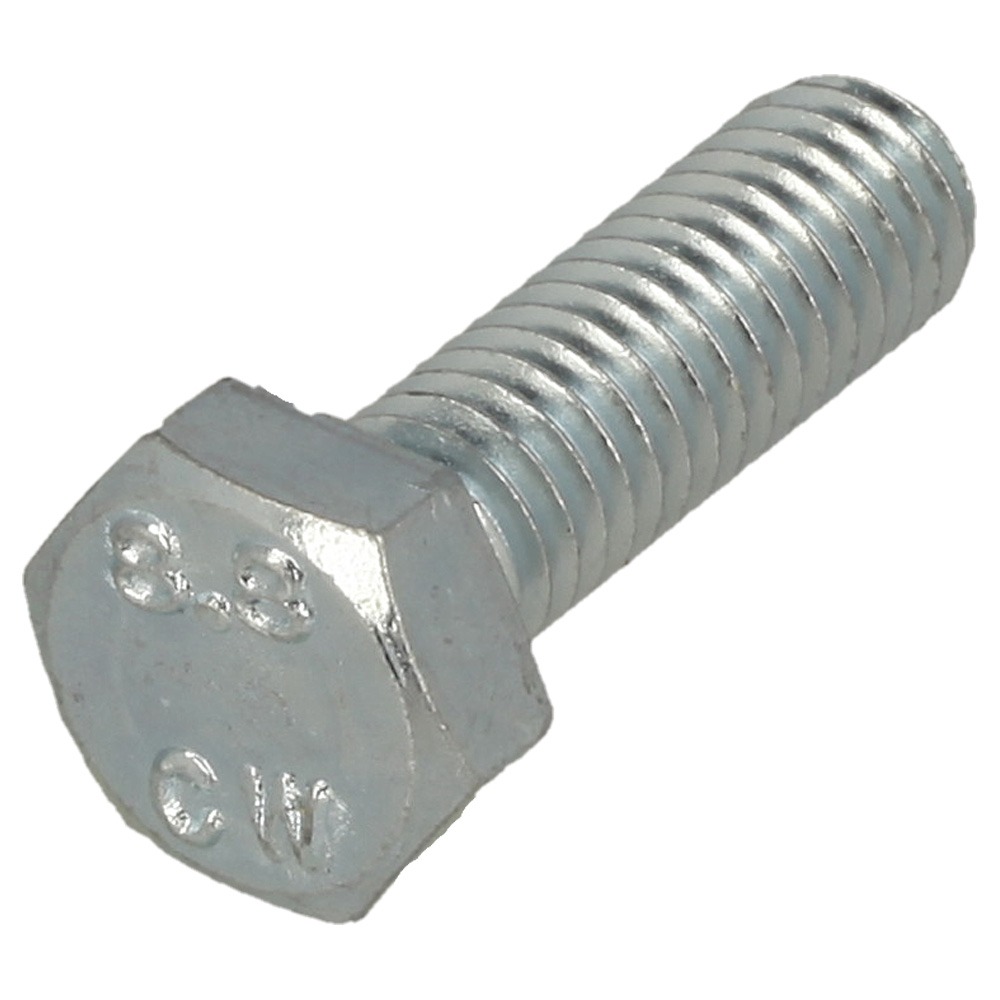

49	2148 Out of stock	Bolt M6 X 20mm (Vac) ( Af037	£0.28 £0.23
50	WE183003800 In stock	PGC Belt Tension Adjust Trunni	£9.83 £8.19
52	WE178966300 Out of stock	2002 PGC Locking Handle	£60.46 £50.38
53	WE149496600 Out of stock	Sweeper Black Grip 22Lx0.5Idx0	£20.30 £16.92
54	WE31330002 Out of stock	Roller Shaft Spacer	£22.32 £18.60
55	WE189497400 In stock	2002 Brush Stock Spindle Long	£29.40 £24.50
57	WE31337600 In stock	Scuff Wheel Hub. Belt Guard Sp	£46.79 £38.99
58	WE307030100 Out of stock	C Series Sweeper 2000 Side Pan	£8.53 £7.11
59	WE307247600 Out of stock	Adjustable C Series Throwplate	£81.92 £68.27
61	WE35937601 Out of stock	Sweeper Height Decal 2003	£14.93 £12.44
62	WE541113000 Out of stock	Sweeper & Combi Deck Flap Stri	£25.68 £21.40
63	WE148005200 Out of stock	2050 PGC Sweeper Air Chute Rub	£17.20 £14.33
64	WE12860100 Out of stock	Rivet 4.8 X 16mm Alloy Pop 103	£1.36 £1.13
65	WE183025600 Out of stock	C Series.Westwood Sweeper Ball	£27.25 £22.71
66	WE183010300 In stock	Q.R. Ball End Shaft	£5.92 £4.93
67	WE12824400 Out of stock	Pop Rivet 4.8mm X 10mm	£1.36 £1.13
69	WE31351100 Out of stock	Sweeper Jockey Cap	£44.03 £36.69
70	8417 In stock	Washer M8 X 25 X 3 Unplated	£1.00 £0.83
71	2112 Out of stock	Circlip (PGC Pulley & Shaft)	£0.60 £0.50
72	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.34 £0.28
73	WE088002900 Out of stock	M10 Single Coil Spring Washer	£0.54 £0.45
74	2202 Out of stock	1.8 X 1.2 Split Pin	£0.48 £0.40
75	WE149591900 In stock	PGC Left Hand Plastic Cover	£83.15 £69.29

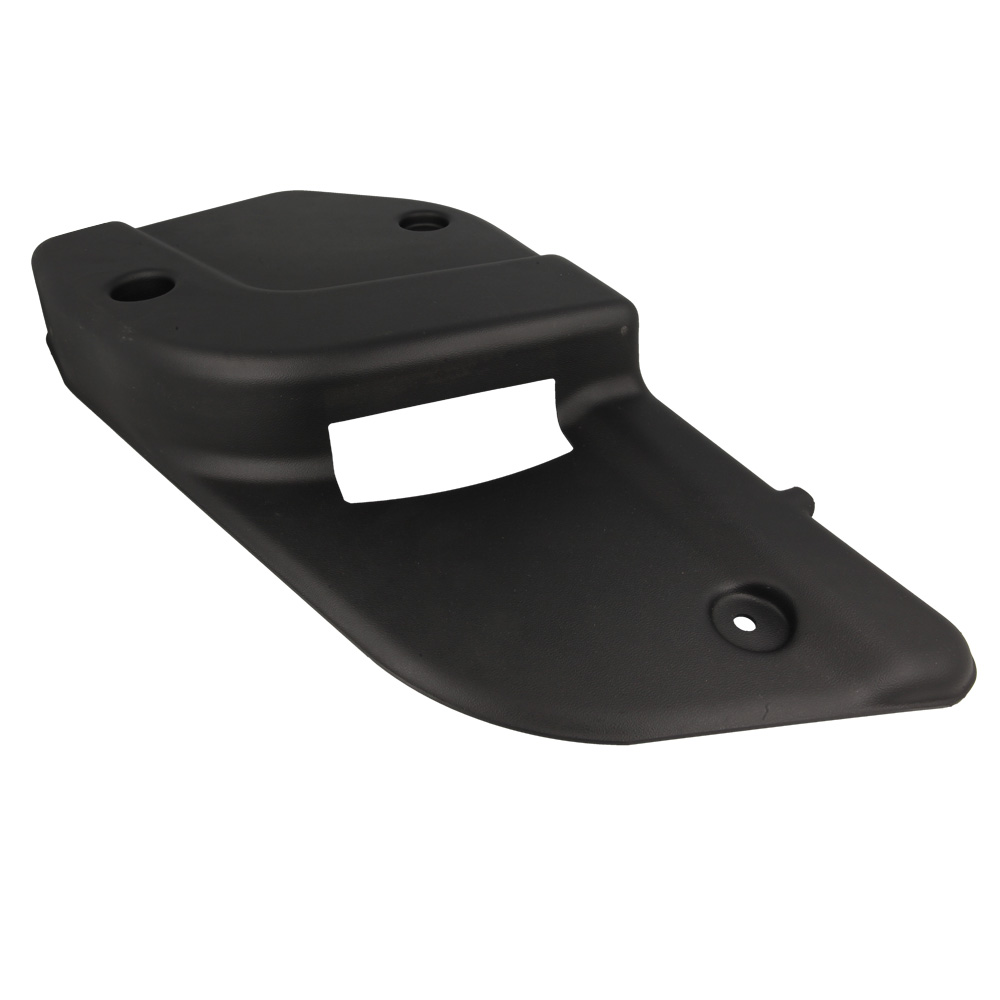

76	WE149592000 Out of stock	PGC Right Hand Plastic Cover	£80.34 £66.95
77	WE542020000 Out of stock	PGC Grass Deflector Left Hand	£14.44 £12.03
78	WE542020100 Out of stock	PGC Grass Deflector Right Hand	£13.34 £11.12
