Countax B60 - From A0328984 06-04-2016 - 6 Rear Body

Name: Countax B60 - From A0328984 06-04-2016 - 6 Rear Body
SKU: b60_a032898406042016_6r-group
Price: 0.32 GBP
Availability: InStock

Part No. b60_a032898406042016_6r-group

Description

Countax B Series

B60 - Tractor

From A0328984 06-04-2016

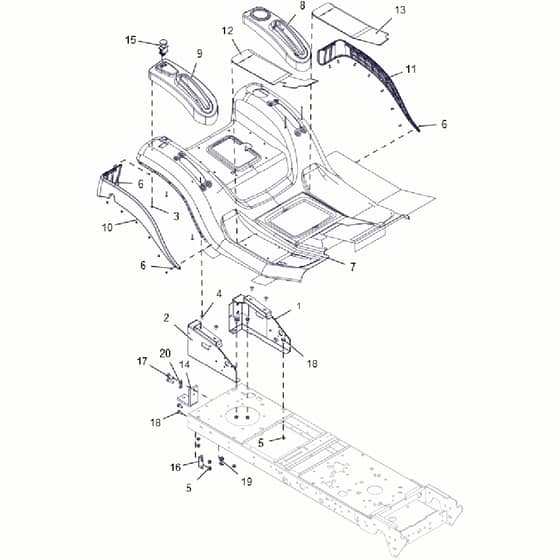

6 Rear Body Parts Diagram

	Part No.	Details
1	WE329652300 Available to backorder	Asm LH Seatbox Welded	£99.48 £82.90
2	WE329652400 Available to backorder	Asm RH Seatbox Welded	£99.48 £82.90
3	WE019484300 Available to backorder	5X25 Cross Rec. Raised Cheese Head Thre	£0.48 £0.40
4	WE049383200 Available to backorder	M8 Flange Head Sheet Metal Nutsert	£0.88 £0.73
6	WE128000100 Available to backorder	Rivet For Mulch Deck Liner	£1.00 £0.83
7	WE148992700 Available to backorder	Rear Body Moulding Countax (2013)	£552.82 £460.68
8	WE148995800 Available to backorder	Cupholderhandbrake Moulding	£70.08 £58.40
9	WE148995900 Available to backorder	Deck Lift Moulding	£70.56 £58.80
10	WE149591600 Available to backorder	Moulding RH Underbody Cseries (2013)	£103.44 £86.20
11	WE149591800 Available to backorder	Moulding LH Underbody Cseries (2013)	£111.12 £92.60
12	WE149592400 Available to backorder	Plate RH Rubber Foot	£9.85 £8.21
13	WE149592500 Available to backorder	Plate Rubber Foot LH	£9.85 £8.21
14	WE29200101 Available to backorder	Tow Bracket	£86.88 £72.40
15	WE449880100 In stock	Switch PTO (6204341)	£21.31 £17.76
16	WE549004800 Available to backorder	Deck Lift Spring Anchor	£2.15 £1.79
17	8984 In stock	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.48 £0.40
18	WE019483600 In stock	M8 X 20 Flange Bolt	£0.48 £0.40
19	WE049381600 Available to backorder	M10 Flanged Nyloc Nut	£0.41 £0.34
20	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
