Countax B60 4Trac - From 09-09-2019 - 11 Pgc Lift

Description

Countax B Series

B60 4TRAC - Tractor

From 09-09-2019

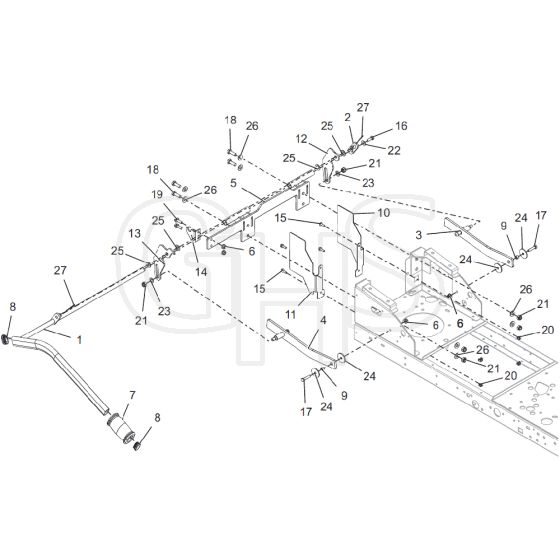

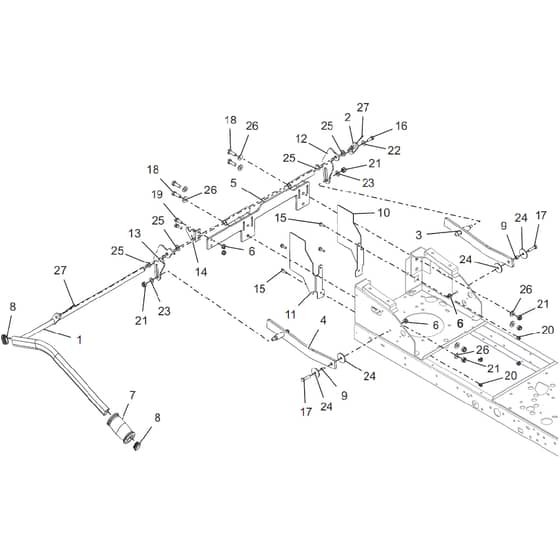

11 Pgc Lift Parts Diagram

	Part No.	Details
1	WE327005000 Available to backorder	PGC Handle Cross Bar Welded Assembly	£206.40 £172.00
2	WE32704800 In stock	PTO Pivot End	£43.37 £36.14
3	WE327056100 Available to backorder	Left Hand Sweeper Link Arm Assembly	£85.56 £71.30
4	WE327056200 In stock	Right Hand Sweeper Link Arm Assembly	£135.82 £113.18
5	WE329652500 Available to backorder	Asm PGC Lift Support	£336.96 £280.80
7	WE148996400 Available to backorder	Foam Grip Fg50 (Component Force)	£10.61 £8.84
8	WE149494500 In stock	Oval Tube Insert Blk Oti21	£1.16 £0.97
9	WE18302700 Available to backorder	Spacer	£10.37 £8.64
10	WE542020800 Available to backorder	Brktlh PTO Guard	£31.21 £26.01
11	WE542020900 Available to backorder	Brkt RH PTO Guard	£31.21 £26.01
12	WE50100090 Available to backorder	MK4PGC Lift Link Kit	£43.58 £36.32
14	WE549219500 Available to backorder	Brkt PGC Lift Handle Support	£2.36 £1.97
15	WE019484600 Available to backorder	M6 X 20 Flange Bolts(Non Serrated)	£1.99 £1.66
17	WE01935700 Available to backorder	M8 X 35mm Bolt Compressor 119	£1.28 £1.07
18	8984 In stock	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.48 £0.40
19	WE029428400 Available to backorder	M8X25Lg Hex Serrated Flange Screw	£1.39 £1.16
20	WE049381900 Available to backorder	M6 X 3mm Captive Nut	£1.19 £0.99
21	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
22	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
23	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
25	2114 In stock	Washer M12 X 24 X 1.6	£0.48 £0.40
26	2539 In stock	M10 X 24 X 2 Tl Washer	£0.48 £0.40
27	2197 In stock	Split Pin 1 X 18 (Snowblade)	£0.48 £0.40
