Countax B60 4Trac - From 09-09-2019 - 05 Chasis Front Axle

Countax B60 4Trac - From 09-09-2019 - 05 Chasis Front Axle
Countax B60 4Trac - From 09-09-2019 - 05 Chasis Front Axle

Description

Countax B Series

B60 4TRAC - Tractor

From 09-09-2019

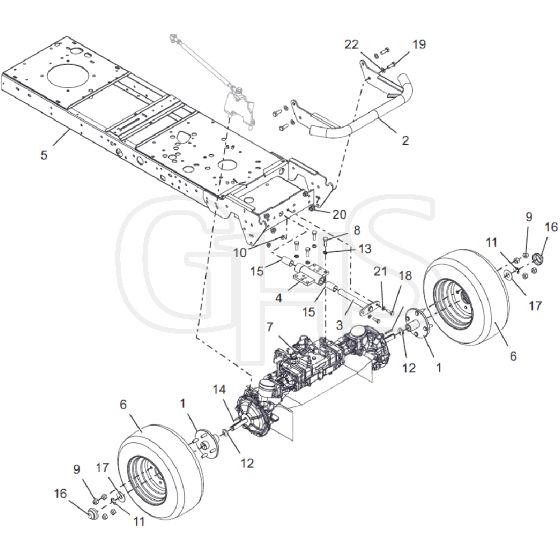

05 Chasis Front Axle Parts Diagram

Ref. Img. Part No. Details
  1 C4Wdwheel Hub Asm With M12 Studs WE198003200
C4Wdwheel Hub Asm With M12 Studs
Out of stock
£77.38 £64.48

  2 Bull Bar Assy Welded WE327815300
Bull Bar Assy Welded
Out of stock
£304.08 £253.40

  3 Alpha Axle Pin Asm WE329599100
Alpha Axle Pin Asm
Out of stock
£44.84 £37.37

  4 4Wd Butterfly Assembly WE329600700
4Wd Butterfly Assembly
Out of stock
£30.36 £25.30

  5 Asm Chassis WE329605800
Asm Chassis
Out of stock
£272.86 £227.38

  6 Wheel Assy 16 Wanda 4Wd Cseries 2013 WE405111200
Wheel Assy 16 Wanda 4Wd Cseries 2013
Out of stock
£27.94 £23.28

  7 Kxh7N Hfwd Transmission WE480000100
Kxh7N Hfwd Transmission
Out of stock
£1,560.00 £1,300.00

  8 Screw Hex Hd Din933 M10 X 30 Grade 10. 8984
Screw Hex Hd Din933 M10 X 30 Grade 10.
In stock
£0.94 £0.78

  9 2050 Wheel Nut WE048000800
2050 Wheel Nut
Out of stock
£3.74 £3.12

  10 M8 Flange Nut WE049383700
M8 Flange Nut
Out of stock
£0.83 £0.69

  11 19mm External Circlip C1A140019 2012
19mm External Circlip C1A140019
In stock
£0.23 £0.19

  12 32 X 20 X 1mm Galv Washer WE081258200
32 X 20 X 1mm Galv Washer
Out of stock
£6.50 £5.42

  13 M10 Single Coil Spring Washer WE088002900
M10 Single Coil Spring Washer
Out of stock
£0.54 £0.45

  14 316 Square Key 40mm Long WE09912600
316 Square Key 40mm Long
Out of stock
£6.36 £5.30

  15 Axle Bearing Plastic Igus Psm222545 WE109011600
Axle Bearing Plastic Igus Psm222545
Out of stock
£17.41 £14.51

  16 Hub Cap (Moulded) WE14811800
Hub Cap (Moulded)
Out of stock
£6.79 £5.66

  17 Hub Cap Washer WE30127800
Hub Cap Washer
Out of stock
£1.79 £1.49

  18 M8 X 25 Hex Set Screw Self Colour WE019479700
M8 X 25 Hex Set Screw Self Colour
Out of stock
£6.37 £5.31

  20 M10 Flanged Nyloc Nut WE049381600
M10 Flanged Nyloc Nut
Out of stock
£0.40 £0.33

  21 Washer 516 T3 Lp Zinc Plated WE08819500
Washer 516 T3 Lp Zinc Plated
Out of stock
£1.36 £1.13

  22 Washer 10.8Id X 20.7Od X 2mm Thk 7282
Washer 10.8Id X 20.7Od X 2mm Thk
In stock
£0.34 £0.28


Description

Countax B Series

B60 4TRAC - Tractor

From 09-09-2019

05 Chasis Front Axle Parts Diagram
