Countax B255 4Wd - From 09-09-2019 - 21 Deck Lift Front Cradle

Name: Countax B255 4Wd - From 09-09-2019 - 21 Deck Lift Front Cradle
SKU: b2554wd_09092019_21-group
Price: 0.32 GBP
Availability: InStock

Part No. b2554wd_09092019_21-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax B255 4Wd - From 09-09-2019 - 21 Deck Lift Front Cradle

Description

Countax B Series

B255 4WD - Tractor

From 09-09-2019

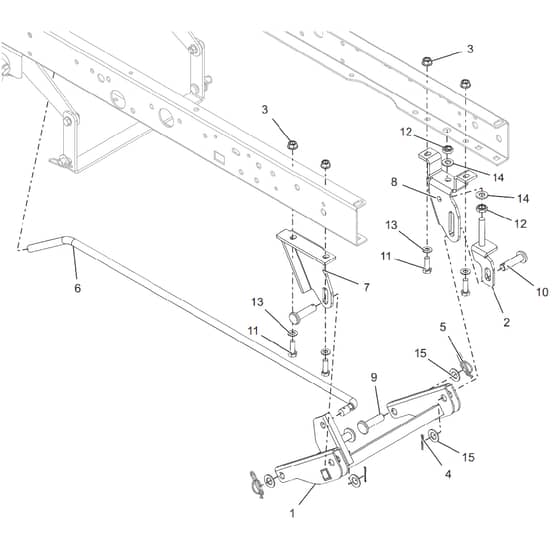

21 Deck Lift Front Cradle Parts Diagram

	Part No.	Details
1	WE328969400 In stock	Asm Front Cradle	Was £156.96 £130.80 Special Price £118.61 £98.84
2	WE329600900 Available to backorder	Deck Adjustment Brkt Asm	£25.09 £20.91
4	2197 In stock	Split Pin 1 X 18 (Snowblade)	£0.48 £0.40
5	2195 In stock	Rue Clip	£1.25 £1.04
9	WE31336800 In stock	Deck Lift Pin (Front)	£38.65 £32.21
10	WE31339401 In stock	Deck Swing Lift Pin 12 X 46.5mm	£21.05 £17.54
12	2173 In stock	M10 Locknut	£0.48 £0.40
14	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
15	2114 In stock	Washer M12 X 24 X 1.6	£0.48 £0.40
