Countax B250 - From A0328984 06-04-2016 - 22 Engine B250

Name: Countax B250 - From A0328984 06-04-2016 - 22 Engine B250
SKU: b250_a032898406042016_22-group
Price: 0.4 GBP
Availability: InStock

Part No. b250_a032898406042016_22-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax B250 - From A0328984 06-04-2016 - 22 Engine B250

Description

Countax B Series

B250 - Tractor

From A0328984 06-04-2016

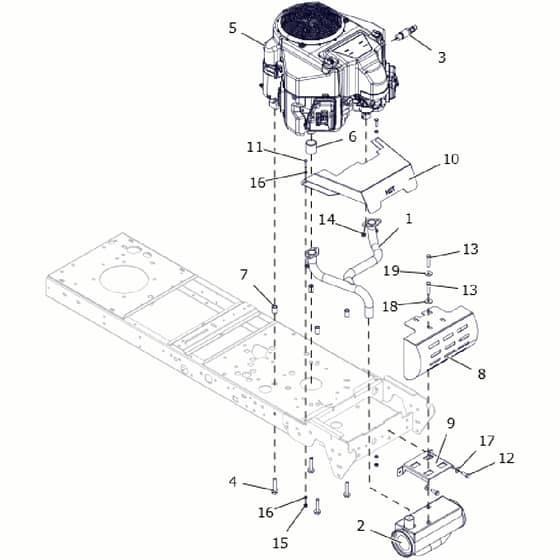

22 Engine B250 Parts Diagram

	Part No.	Details
1	WE329599800 Available to backorder	Exhaust Assy Kaw730	£107.52 £89.60
2	WE401009900 Available to backorder	Asm Exhaust Box 2016	£259.92 £216.60
3	WE529473400 Available to backorder	Asm Engine Oil Drain Valve Kawasaki	£13.87 £11.56
4	WE018993400 In stock	3.8 UNC X 2 Sae Grade 5	£1.06 £0.88
5	WE159339700 Available to backorder	26 Hp Kawasaki Fr730Vas50M	£2,067.55 £1,722.96
6	WE186006000 Available to backorder	K730 Engine Pulley Spacer	£49.68 £41.40
7	WE186006100 Available to backorder	4Wd Engine Mount Spcr	£22.66 £18.88
8	WE307199700 Available to backorder	2004 Countax Heatshield	£125.52 £104.60
10	WE549005700 Available to backorder	Heat Shieldkawasaki	£50.81 £42.34
11	WE028002900 Available to backorder	Bolt M6X25 Plated	£0.60 £0.50
13	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.00 £0.83
14	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
15	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
16	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.48 £0.40
17	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
18	8417 In stock	Washer M8 X 25 X 3 Unplated	£0.48 £0.40
19	WE08819800 In stock	Washer 516Id X 1Od Hd	£21.10 £17.58
