Countax B250 - From 01-10-2014 To 01-07-2015 - 5 Rear Body

Description

Countax B Series

B250 - Tractor

From 01-10-2014 To 01-07-2015

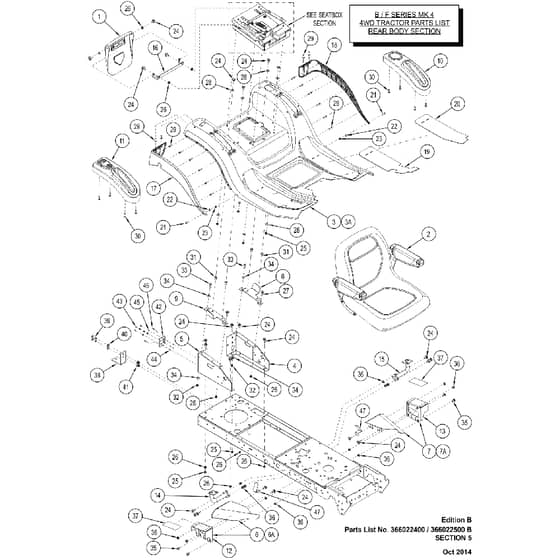

5 Rear Body Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE149496300 Available to backorder	PTO Flap Tractor He (Plastic)	£57.82 £48.18
2	WE405463500 Available to backorder	Kita25 Seat Conversion Milsco To Seat	£417.60 £348.00
3	WE148992759 Available to backorder	2012 Rear Body Moulding Ariens Orange (3A)	£507.60 £423.00
3	WE148992700 Available to backorder	Rear Body Moulding Countax (2013)	£614.40 £512.00
4	WE329598500 Available to backorder	LH Seat Box Asm	£153.36 £127.80
5	WE329598400 Available to backorder	RH Seat Box Asm	£134.34 £111.95
6	WE327815570 Available to backorder	Asmbody Link RH	£50.86 £42.38
6	WE327815559 Available to backorder	Asmbody Link RH Ariens Orange (6A)	£50.86 £42.38
7	WE327815459 Available to backorder	Asmbody Link LH Ariens Orange (7A)	£25.43 £21.19
7	WE327815470 Available to backorder	Asmbody Link LH Cntx Red	£50.86 £42.38
8	WE549118400 Available to backorder	LH Rear Body Fixing Bracket	£10.92 £9.10
9	WE549111400 Available to backorder	RH Rear Body Fixing Bracket	£10.92 £9.10
10	WE148995800 Available to backorder	Cupholderhandbrake Moulding	£70.10 £58.42
11	WE148995900 Available to backorder	Deck Lift Moulding	£70.58 £58.82
12	WE549118700 Available to backorder	Body Link Rear RH Brkt	£31.28 £26.07
13	WE549118100 Available to backorder	Body Link Rear LH Brkt	£31.70 £26.42
14	WE329599300 Available to backorder	Brkt RH Body Front Tractor 2013	£28.88 £24.07
15	WE329599200 Available to backorder	Brkt LH Body Front Tractor 2013	£28.88 £24.07
16	WE329601400 Available to backorder	PTO Flap Bracket Hinge	£9.50 £7.92
17	WE149591600 Available to backorder	Moulding RH Underbody Cseries (2013)	£103.40 £86.17
18	WE149591800 Available to backorder	Moulding LH Underbody Cseries (2013)	£111.06 £92.55
19	WE149592400 Available to backorder	Plate RH Rubber Foot	£9.52 £7.93
20	WE149592500 Available to backorder	Plate Rubber Foot LH	£9.52 £7.93
21	WE029427700 Available to backorder	M4 X 16mm Pozi Pan Set Screw	£0.48 £0.40
22	WE08952500 Available to backorder	M4 Washer Steel Flat Form C	£0.40 £0.33
23	WE04826400 Available to backorder	M4 Nyloc T	£0.36 £0.30
24	WE019483600 In stock	M8 X 20 Flange Bolt	£2.00 £1.67
25	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
27	WE019483700 Available to backorder	M8 X 30 Flange Bolt	£1.54 £1.28
28	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
29	WE128000100 Available to backorder	Rivet For Mulch Deck Liner	£0.96 £0.80
30	WE019484300 Available to backorder	5X25 Cross Rec. Raised Cheese Head Thre	£0.48 £0.40
31	WE049383200 Available to backorder	M8 Flange Head Sheet Metal Nutsert	£0.85 £0.71
32	2038 In stock	M10 Nyloc Nut	£0.72 £0.60
33	8984 Available to backorder	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.94 £0.78
34	2539 In stock	M10 X 24 X 2 Tl Washer	£0.47 £0.39
35	6872 In stock	M8 X 16 Mscrew BZP	£0.70 £0.58
38	WE29200101 Available to backorder	Tow Bracket	£86.90 £72.42
40	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.34 £0.28
41	WE049381600 Available to backorder	M10 Flanged Nyloc Nut	£0.40 £0.33
42	WE549122800 Available to backorder	Plt Cpc Plastic Connec Tor Mount	£2.74 £2.28
44	WE04912700 Available to backorder	M3 Nyloc Nut He Tractor	£0.54 £0.45
45	WE019485400 Available to backorder	M3 Form A Washer	£0.48 £0.40
46	WE12860100 Available to backorder	Rivet 4.8 X 16mm Alloy Pop 10314816	£1.25 £1.04
47	WE541148900 Available to backorder	Brkt Bonnet Side Panel Guide	£3.18 £2.65
