Countax B250 - From 01-10-2014 To 01-07-2015 - 2 Chassis Front Axle

Name: Countax B250 - From 01-10-2014 To 01-07-2015 - 2 Chassis Front Axle
SKU: b250_01102014_01072015_2c-group
Price: 0.32 GBP
Availability: InStock

Part No. b250_01102014_01072015_2c-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax B250 - From 01-10-2014 To 01-07-2015 - 2 Chassis Front Axle

Description

Countax B Series

B250 - Tractor

From 01-10-2014 To 01-07-2015

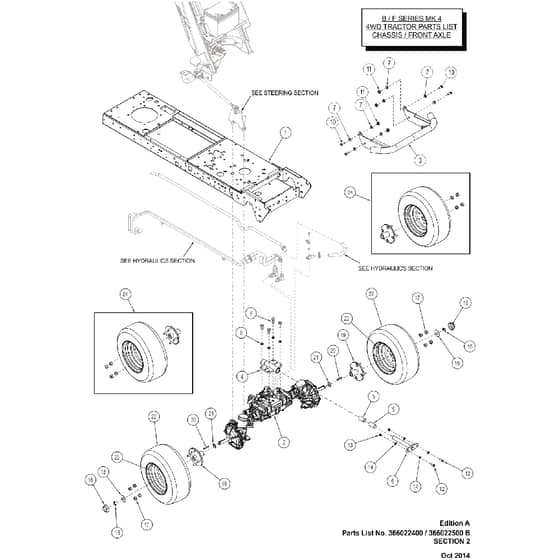

2 Chassis Front Axle Parts Diagram

	Part No.	Details
1	WE329594400 Available to backorder	Assy Chassis Front 4Wd	£495.43 £412.86
2	WE480000100 Available to backorder	Kxh7N Hfwd Transmission	£1,289.66 £1,074.72
3	WE327815300 Available to backorder	Bull Bar Assy Welded	£327.04 £272.53
4	WE329600700 Available to backorder	4Wd Butterfly Assembly	£31.40 £26.17
5	WE109011600 Available to backorder	Axle Bearing Plastic Igus Psm222545	£27.20 £22.67
6	WE329599100 Available to backorder	Alpha Axle Pin Asm	£46.38 £38.65
7	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
8	8984 In stock	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.48 £0.40
9	10125 In stock	M10 Single Coil Spring Washer	£0.48 £0.40
10	8420 In stock	M10 X 25 Sscrew BZP	£0.48 £0.40
13	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
15	2012 In stock	19mm External Circlip C1A140019	£0.48 £0.40
16	WE14811800 In stock	Hub Cap (Moulded)	£6.90 £5.75
17	WE048000800 In stock	2050 Wheel Nut	£3.56 £2.97
18	WE30127800 Available to backorder	Hub Cap Washer	£1.61 £1.34
20	WE09912600 Available to backorder	316 Square Key 40mm Long	£6.36 £5.30
21	WE081258200 Available to backorder	32 X 20 X 1mm Galv Washer	£6.72 £5.60
22	WE199503900 Available to backorder	Tyre 16 Wanda	£70.20 £58.50
23	WE198004300 In stock	18 X 6.50 Wheel Rim	Was £79.64 £66.37 Special Price £35.99 £29.99
24	WE405111200 Available to backorder	Wheel Assy 16 Wanda 4Wd Cseries 2013	£26.60 £22.17
