Countax B250 - From 01-10-2014 To 01-07-2015 - 15 Kawasaki Engine Assy

Countax B250 - From 01-10-2014 To 01-07-2015 - 15 Kawasaki Engine Assy
Countax B250 - From 01-10-2014 To 01-07-2015 - 15 Kawasaki Engine Assy

Description

Countax B Series

B250 - Tractor

From 01-10-2014 To 01-07-2015

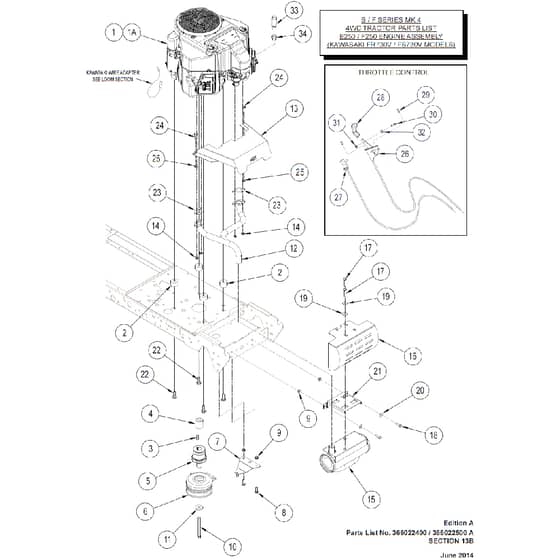

15 Kawasaki Engine Assy Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 26Hp Kawasaki Fs730Vas51M WE159338501
26Hp Kawasaki Fs730Vas51M
 Out of stock
£2,070.72 £1,725.60

  1 26 Hp Kawasaki Fr730Vas50M WE159339700
26 Hp Kawasaki Fr730Vas50M
 Out of stock
£2,376.00 £1,980.00

  2 4Wd Engine Mount Spcr WE186006100
4Wd Engine Mount Spcr
 Out of stock
£21.96 £18.30

  3 Key14Sq X 1 14 American Spec Rounded WE09853401
Key14Sq X 1 14 American Spec Rounded
 Out of stock
£2.00 £1.67

  4 K730 Engine Pulley Spacer WE186006000
K730 Engine Pulley Spacer
 Out of stock
£7.13 £5.94

  5 4Wd Pulley Asm WE329600600
4Wd Pulley Asm
 Out of stock
£66.60 £55.50

  6 Elec.Clutch Magstop WE44936100
Elec.Clutch Magstop
 In stock
£299.16 £249.30

  7 Asm Clutch Retainer Front WE328969500
Asm Clutch Retainer Front
 Out of stock
£83.28 £69.40

  8 M8X25 Flange Bolt 2175
M8X25 Flange Bolt
 In stock
£0.41 £0.34

  9 M8 Flange Nut WE049383700
M8 Flange Nut
 Out of stock
£0.83 £0.69

  10 716 UNF X 4.5 Bolt 2201
716 UNF X 4.5 Bolt
 Out of stock
£3.95 £3.29

  11 Engine Pulley Cap WE18312200
Engine Pulley Cap
 Out of stock
£18.74 £15.62

  12 Exhaust Welded Assy Frfs540 WE329599900
Exhaust Welded Assy Frfs540
 Out of stock
£175.80 £146.50

  13 Heat Shieldkawasaki WE549005700
Heat Shieldkawasaki
 Out of stock
£52.80 £44.00

  14 M8 Nyloc Nut 2111
M8 Nyloc Nut
 In stock
£0.28 £0.23

  15 Exhaust C500H C600H WE401007001
Exhaust C500H C600H
 Out of stock
£208.20 £173.50

  16 2004 Countax Heatshield WE307199700
2004 Countax Heatshield
 Out of stock
£66.24 £55.20

  17 M8X40mm Bright Zinc Plate Bolt WE018003200
M8X40mm Bright Zinc Plate Bolt
 Out of stock
£0.71 £0.59

  18 M8 X 25 Hex Set Screw Self Colour WE019479700
M8 X 25 Hex Set Screw Self Colour
 Out of stock
£6.37 £5.31

  19 Washer M8 X 25 X 3 Unplated 8417
Washer M8 X 25 X 3 Unplated
 In stock
£1.00 £0.83

  20 Washer M8 X 21 X 1.6 2192
Washer M8 X 21 X 1.6
 In stock
£0.48 £0.40

  22 3.8 UNC X 2 Sae Grade 5 WE018993400
3.8 UNC X 2 Sae Grade 5
 Out of stock
£1.50 £1.25

  23 B Engine Gasket WE528005200
B Engine Gasket
 Out of stock
£28.81 £24.01

  24 M6 X 20 Flange Bolts(Non Serrated) WE019484600
M6 X 20 Flange Bolts(Non Serrated)
 Out of stock
£1.93 £1.61

  25 M6 Nyloc Flange Nut WE049383800
M6 Nyloc Flange Nut
 Out of stock
£0.46 £0.38

  26 Wtwin WE528004600
Wtwin
 Out of stock
£27.66 £23.05

  27 Choke Cable WE529469800
Choke Cable
 Out of stock
£86.77 £72.31

  28 Control Knob (Throttle Cable) WE14810400
Control Knob (Throttle Cable)
 Out of stock
£13.99 £11.66

  29 Pop Rivet 4.8mm X 10mm WE12824400
Pop Rivet 4.8mm X 10mm
 Out of stock
£1.36 £1.13

  30 M4 X 12 Pozi Pan Ss Zinc Plated 2045
M4 X 12 Pozi Pan Ss Zinc Plated
 In stock
£0.19 £0.16

  31 M4 Nyloc T WE04826400
M4 Nyloc T
 Out of stock
£0.36 £0.30

  33 Oil Drainage Valve WE52851200
Oil Drainage Valve
 Out of stock
£26.02 £21.68

  34 Haexagon Adaptor M20 To 38 Taper WE183013902
Haexagon Adaptor M20 To 38 Taper
 Out of stock
£15.04 £12.53


Description

Countax B Series

B250 - Tractor

From 01-10-2014 To 01-07-2015

15 Kawasaki Engine Assy Parts Diagram
