Countax B250 - From 01-02-2014 To 01-06-2014 - 5 Rear Body

Description

Countax B Series

B250 - Tractor

From 01-02-2014 To 01-06-2014

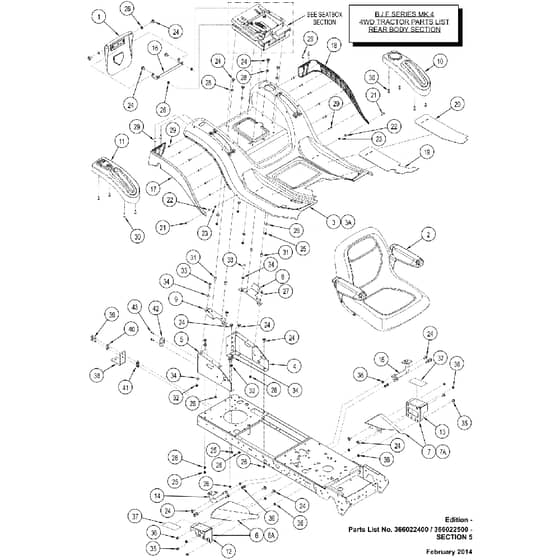

5 Rear Body Parts Diagram

	Part No.	Details
1	WE149496300 Available to backorder	PTO Flap Tractor He (Plastic)	£59.81 £49.84
2	WE405463500 Available to backorder	Kita25 Seat Conversion Milsco To Seat	£376.07 £313.39
3	WE148992700 Available to backorder	Rear Body Moulding Countax (2013)	£552.82 £460.68
3	WE148992759 Available to backorder	2012 Rear Body Moulding Ariens Orange (3A)	£456.67 £380.56
4	WE329598500 Available to backorder	LH Seat Box Asm	£153.36 £127.80
5	WE329598400 Available to backorder	RH Seat Box Asm	£134.40 £112.00
6	WE327815559 Available to backorder	Asmbody Link RH Ariens Orange (6A)	£52.61 £43.84
6	WE327815570 Available to backorder	Asmbody Link RH	£52.61 £43.84
7	WE327815470 Available to backorder	Asmbody Link LH Cntx Red	£52.61 £43.84
7	WE327815459 Available to backorder	Asmbody Link LH Ariens Orange (7A)	£26.30 £21.92
8	WE549118400 Available to backorder	LH Rear Body Fixing Bracket	£11.29 £9.41
9	WE549111400 Available to backorder	RH Rear Body Fixing Bracket	£11.29 £9.41
10	WE148995800 Available to backorder	Cupholderhandbrake Moulding	£70.08 £58.40
11	WE148995900 Available to backorder	Deck Lift Moulding	£70.56 £58.80
12	WE549118700 Available to backorder	Body Link Rear RH Brkt	£32.35 £26.96
13	WE549118100 Available to backorder	Body Link Rear LH Brkt	£32.81 £27.34
14	WE329599300 Available to backorder	Brkt RH Body Front Tractor 2013	£29.88 £24.90
15	WE329599200 Available to backorder	Brkt LH Body Front Tractor 2013	£29.88 £24.90
16	WE329601400 Available to backorder	PTO Flap Bracket Hinge	£9.82 £8.18
17	WE149591600 Available to backorder	Moulding RH Underbody Cseries (2013)	£103.44 £86.20
18	WE149591800 Available to backorder	Moulding LH Underbody Cseries (2013)	£111.12 £92.60
19	WE149592400 Available to backorder	Plate RH Rubber Foot	£9.85 £8.21
20	WE149592500 Available to backorder	Plate Rubber Foot LH	£9.85 £8.21
21	WE029427700 Available to backorder	M4 X 16mm Pozi Pan Set Screw	£0.48 £0.40
22	WE08952500 Available to backorder	M4 Washer Steel Flat Form C	£0.41 £0.34
23	WE04826400 Available to backorder	M4 Nyloc T	£0.37 £0.31
24	WE019483600 In stock	M8 X 20 Flange Bolt	£0.48 £0.40
25	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
27	WE019483700 Available to backorder	M8 X 30 Flange Bolt	£1.58 £1.32
28	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
29	WE128000100 Available to backorder	Rivet For Mulch Deck Liner	£1.00 £0.83
30	WE019484300 Available to backorder	5X25 Cross Rec. Raised Cheese Head Thre	£0.48 £0.40
31	WE049383200 Available to backorder	M8 Flange Head Sheet Metal Nutsert	£0.88 £0.73
32	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
33	8984 In stock	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.48 £0.40
34	2539 In stock	M10 X 24 X 2 Tl Washer	£0.48 £0.40
35	6872 In stock	M8 X 16 Mscrew BZP	£0.48 £0.40
38	WE29200101 Available to backorder	Tow Bracket	£86.88 £72.40
40	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
41	WE049381600 Available to backorder	M10 Flanged Nyloc Nut	£0.41 £0.34
42	WE549001100 Available to backorder	Seat Box Vl Connector Plate	£0.48 £0.40
43	2198 In stock	Self Drilling Screw Hex Head 4.8 X 16	£0.60 £0.50
