Countax B250 - From 01-02-2014 To 01-06-2014 - 11 Deck Lift

Name: Countax B250 - From 01-02-2014 To 01-06-2014 - 11 Deck Lift
SKU: b250_01022014_01062014_11-group
Price: 0.32 GBP
Availability: InStock

Part No. b250_01022014_01062014_11-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax B250 - From 01-02-2014 To 01-06-2014 - 11 Deck Lift

Description

Countax B Series

B250 - Tractor

From 01-02-2014 To 01-06-2014

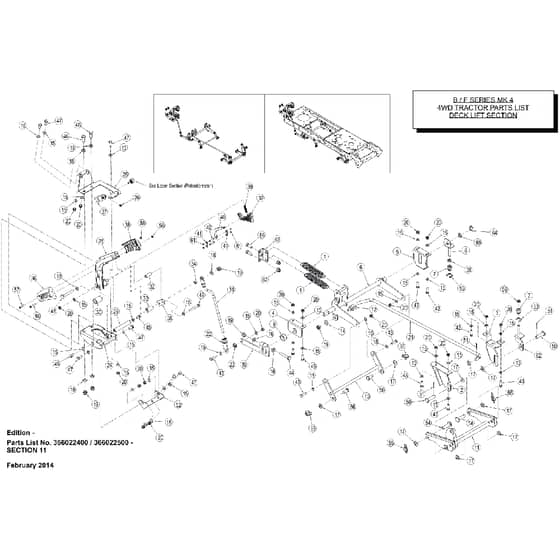

11 Deck Lift Parts Diagram

	Part No.	Details
1	WE25885300 Available to backorder	Deck Assist Spring	£19.55 £16.29
4	WE302080300 Available to backorder	Bracket Right Hand Rear Hanging	£14.33 £11.94
5	WE302080500 Available to backorder	Brkt Left Hand Rear Hanging	£29.81 £24.84
6	WE329600200 Available to backorder	Assy 2013 Rear Deck Hanging Bracket	£278.76 £232.30
7	WE189501800 Available to backorder	Deck Level Hex Adjuster Nut Nov 04	£16.74 £13.95
8	WE328961400 Available to backorder	Diesel & Kawasaki Rear Deck Adjust Brkt	£35.21 £29.34
9	WE31323500 Available to backorder	H.E Lift Bar Spacer	£20.44 £17.03
10	WE301965400 Available to backorder	Ad Manual Deck Lift Lower Linkage Arm	£61.00 £50.83
11	WE328969400 In stock	Asm Front Cradle	Was £156.96 £130.80 Special Price £118.61 £98.84
12	WE189497500 Available to backorder	2002 Tractor Deck Level Trunion	£26.23 £21.86
13	WE549129100 Available to backorder	Brkt Rear Deck Lift Link	£43.99 £36.66
14	2539 In stock	M10 X 24 X 2 Tl Washer	£0.48 £0.40
16	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
17	2114 In stock	Washer M12 X 24 X 1.6	£0.48 £0.40
19	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
20	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
22	WE327806100 Available to backorder	Manual Deck Lift Adjuster Rod Plate Asse	£57.89 £48.24
23	WE183529500 Available to backorder	Cseries Deck Lift Pivot Spacer	£11.52 £9.60
24	WE328969300 Available to backorder	Asm Manual Deck Lift Carry Plate Welded	£61.92 £51.60
25	WE541146100 Available to backorder	Brkt Deck Lift Attachment Top	£22.40 £18.67
26	2035 In stock	M5 X 16mm Flang Butt Hd Sckt Drive Scre	£0.48 £0.40
27	WE329600400 Available to backorder	Welded Assypotentiometer Pivot	£10.30 £8.58
28	WE329599400 Available to backorder	Asm Deck Lift Handle	£40.39 £33.66
29	WE186003000 Available to backorder	Deck Handle Cross Shaft	£10.90 £9.08
30	WE183864100 Available to backorder	Spacer Deck Lift Handle Cross Shaft	£10.94 £9.12
31	WE329598200 Available to backorder	Yoke Rod Welded Asm	£85.68 £71.40
32	WE186005600 Available to backorder	Spacer Deck Lift Support Brkk	£18.79 £15.66
33	WE186005000 Available to backorder	Spacer Deck Lift	£5.09 £4.24
34	WE183016900 Available to backorder	Track Rod End Spacer 12.7Od X 10Id X 7	£13.12 £10.93
35	WE549119300 Available to backorder	Brkt Deckt Lift Support	£5.21 £4.34
36	WE149550400 Available to backorder	Deck Lift RH Handle Cover Black	£17.86 £14.88
37	WE149550601 Available to backorder	Manual Deck Lift Handle Trigger	£29.77 £24.81
38	WE149550500 Available to backorder	Deck Lift LH Handle Cover Black	£17.86 £14.88
39	WE259405900 Available to backorder	Manual Deck Lift Handle Spring 2008	£1.00 £0.83
40	WE327878100 Available to backorder	Deck Lift Handle Link Welded Assembly	£60.77 £50.64
41	WE301965300 Available to backorder	Manual Deck Lift Slide Plate	£12.25 £10.21
42	WE183528801 Available to backorder	Manual Deck Lift Link Slide Pin	£6.46 £5.38
44	WE018002400 Available to backorder	M10 X 55 Hex Head Bolt	£0.73 £0.61
45	6872 In stock	M8 X 16 Mscrew BZP	£0.48 £0.40
46	8420 In stock	M10 X 25 Sscrew BZP	£0.48 £0.40
47	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.48 £0.40
48	WE018005300 Available to backorder	M10 X 65mm Hex Head Bolt BZP	£0.68 £0.57
49	7530 In stock	Bolt M8 X 60mm	£0.48 £0.40
50	WE31339401 In stock	Deck Swing Lift Pin 12 X 46.5mm	£21.05 £17.54
51	2197 In stock	Split Pin 1 X 18 (Snowblade)	£0.48 £0.40
52	WE541146000 Available to backorder	Brkt Deck Lift Attachment Bottom	£11.52 £9.60
53	2012 In stock	19mm External Circlip C1A140019	£0.48 £0.40
54	WE31336800 In stock	Deck Lift Pin (Front)	£38.65 £32.21
55	2195 In stock	Rue Clip	£1.25 £1.04
56	WE31337200 In stock	Deck Lift Pin (Rear)	£14.56 £12.13
57	WE028004000 Available to backorder	M5 X 30mm Csk Socket Head Screw Black	£1.12 £0.93
58	WE048001800 Available to backorder	M5 Half Nut Black Finish	£0.94 £0.78
59	2173 In stock	M10 Locknut	£0.48 £0.40
60	2107 Available to backorder	M5 X 35 Csk Socket Head Screw Black	£0.48 £0.40
61	WE07986100 Available to backorder	4mm Eclip D15004mm	£0.65 £0.54
62	WE329600900 Available to backorder	Deck Adjustment Brkt Asm	£25.09 £20.91
63	WE549004800 Available to backorder	Deck Lift Spring Anchor	£2.15 £1.79
64	WE078000800 Available to backorder	E Clip M12 Plated	£0.91 £0.76
65	WE089423700 Available to backorder	Transaxle Washer 46 X 20 X 2	£1.99 £1.66
66	WE019483600 In stock	M8 X 20 Flange Bolt	£0.48 £0.40
