Countax B250 - From 01-02-2014 To 01-06-2014 - 10 Handbrake

Description

Countax B Series

B250 - Tractor

From 01-02-2014 To 01-06-2014

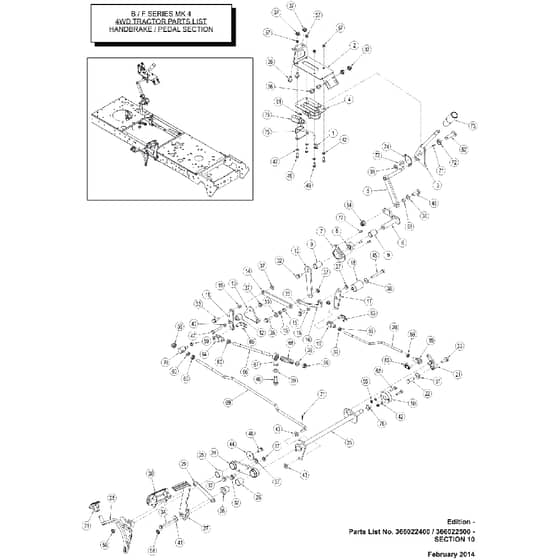

10 Handbrake Parts Diagram

	Part No.	Details
1	2035 In stock	M5 X 16mm Flang Butt Hd Sckt Drive Scre	£0.48 £0.40
2	WE549112100 Available to backorder	Handbrake Mount Bracket	£16.26 £13.55
3	WE329600800 Available to backorder	Hand Brake Handle Asm	£56.23 £46.86
4	WE148014000 Available to backorder	C Series 2002 Hanbrake Block	£12.01 £10.01
5	WE329601600 Available to backorder	Hand Brake Connecting Rod Assembly	£19.79 £16.49
6	WE329597500 Available to backorder	Asm Handbrake Lever Outer	£6.46 £5.38
7	WE301048100 Available to backorder	Tractor Pedal Cassette Bearing Housing	£52.78 £43.98
8	WE10811600 In stock	Bearing (PTO Housing)	£17.52 £14.60
9	WE183860300 Available to backorder	Spacer Idler Pulley	£2.03 £1.69
10	WE542017300 Available to backorder	Lever Inner Handbrake Pivot	£5.18 £4.32
11	WE549116300 Available to backorder	Hand Brake Transaxle Pivot	£4.40 £3.67
12	WE18833700 Available to backorder	Pivot (Deck Overlock)	£5.98 £4.98
13	WE549116200 Available to backorder	Hand Brake Transaxle Bracket	£2.21 £1.84
14	WE549115200 Available to backorder	Hand Brake Link Plate	£6.62 £5.52
15	WE183016900 Available to backorder	Track Rod End Spacer 12.7Od X 10Id X 7	£13.12 £10.93
16	WE549116000 Available to backorder	Hand Brake Crank Link	£4.40 £3.67
17	WE549115000 Available to backorder	Hand Brake Pivot Plate	£4.40 £3.67
18	WE186003500 Available to backorder	Hand Brake Crank Boss	£6.14 £5.12
19	WE108001100 Available to backorder	M8 Clevis Pin	£12.94 £10.78
20	WE174517900 Available to backorder	Hand Brake Link Rod	£15.05 £12.54
21	WE329595000 Available to backorder	Assy Locking Lever	£18.07 £15.06
22	WE184000500 Available to backorder	Body Pivot Locking	£5.93 £4.94
23	WE329594800 Available to backorder	Assy Crossshaft Pedal	£107.40 £89.50
24	WE329602300 Available to backorder	Pedal Hub Asm	£36.19 £30.16
25	WE109011700 Available to backorder	Chassis Pedal Boss Brg	£9.46 £7.88
26	WE183861300 Available to backorder	Tube Support Pedal Drive	£38.32 £31.93
27	WE329594900 Available to backorder	Assy Forward Pedal	£42.28 £35.23
28	WE329650200 Available to backorder	Reverse Pedal Welded Asm	£63.12 £52.60
29	WE405080300 Available to backorder	Pedal Cassette Link Assembly	£15.79 £13.16
30	WE148013700 Available to backorder	C Series Fwd Large Pedal Rubber 2002	£15.67 £13.06
31	WE148013800 In stock	C Series Small Rev Pedal Rubber 2002	£14.30 £11.92
32	WE019483600 In stock	M8 X 20 Flange Bolt	£0.48 £0.40
33	2175 In stock	M8X25 Flange Bolt	£0.48 £0.40
34	WE019484700 Available to backorder	M6X55 Flange Non Serrated Hex Bolt	£0.73 £0.61
35	WE019483700 Available to backorder	M8 X 30 Flange Bolt	£1.58 £1.32
36	WE019483500 Available to backorder	M8 X 16 Flange Bolt	£1.12 £0.93
38	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
39	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
41	8417 In stock	Washer M8 X 25 X 3 Unplated	£0.48 £0.40
42	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.48 £0.40
45	WE028662700 Available to backorder	Bolt M8X65mm	£0.64 £0.53
46	8984 In stock	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.48 £0.40
47	WE02941000 Available to backorder	Bolt M8 X 45mm (Vac)	£0.68 £0.57
48	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.48 £0.40
49	2184 Available to backorder	M6X16mm Set Screw	£0.48 £0.40
50	WE189544100 Available to backorder	Pedal Shaft End Hub Tractor 2013	£8.50 £7.08
51	8418 In stock	Nylon Washer	£0.48 £0.40
52	WE31336800 In stock	Deck Lift Pin (Front)	£38.65 £32.21
53	WE189502700 Available to backorder	Spacer 12.7Od 10.2 Id 9mm Long	£28.09 £23.41
54	WE049381600 Available to backorder	M10 Flanged Nyloc Nut	£0.41 £0.34
55	WE048111000 Available to backorder	M6 Grd 8 Nylon Self Lock Nuts Din 985	£1.00 £0.83
56	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
57	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
58	WE089418300 Available to backorder	38 Starlock Washer	£1.49 £1.24
60	2173 In stock	M10 Locknut	£0.48 £0.40
61	WE048001800 Available to backorder	M5 Half Nut Black Finish	£0.94 £0.78
62	WE019485000 Available to backorder	M6 X 25 Socket Cap Screw Steel Zinc Tri	£0.64 £0.53
63	WE108001200 Available to backorder	8mm Spring Pin	£11.34 £9.45
64	WE108000600 Available to backorder	10mm X 1.5 Clevis Short	£16.22 £13.52
65	WE108000500 Available to backorder	10mm Spring Pin Short	£5.75 £4.79
66	WE313514600 Available to backorder	Rod Trans Brake To Crossshaft	£16.98 £14.15
67	WE10872600 In stock	10mm Rod End	£20.66 £17.22
69	WE313514400 Available to backorder	Rod Forwardreverse	£45.76 £38.13
70	WE183020200 Available to backorder	2050 Diff Lock Pedal Trunnion	£12.85 £10.71
71	2202 Available to backorder	18 X 12 Split Pin	£0.48 £0.40
72	WE149498000 Available to backorder	C Series Handbrake Mechanism Nylon Bush	£7.00 £5.83
73	WE149557300 Available to backorder	Handbrake Handle	£15.56 £12.97
74	WE258000600 Available to backorder	Spring Handbrake Block Torsion 1.75 Dia	£5.16 £4.30
75	WE549007000 Available to backorder	Hand Brake Plunger Switch Bracket	£1.15 £0.96
76	WE449880800 In stock	Plunger Switch Nonc	£20.96 £17.47
77	WE12824400 Available to backorder	Pop Rivet 4.8mm X 10mm	£1.30 £1.08
78	WE109011900 Available to backorder	Cross Shaft End Brg	£5.84 £4.87
