Countax B250 4Trac - From 09-09-2019 - 12 Seat And Seat Box

Name: Countax B250 4Trac - From 09-09-2019 - 12 Seat And Seat Box
SKU: b2504trac_09092019_12-group
Price: 0.4 GBP
Availability: InStock

Part No. b2504trac_09092019_12-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax B250 4Trac - From 09-09-2019 - 12 Seat And Seat Box

Description

Countax B Series

B250 4TRAC - Tractor

From 09-09-2019

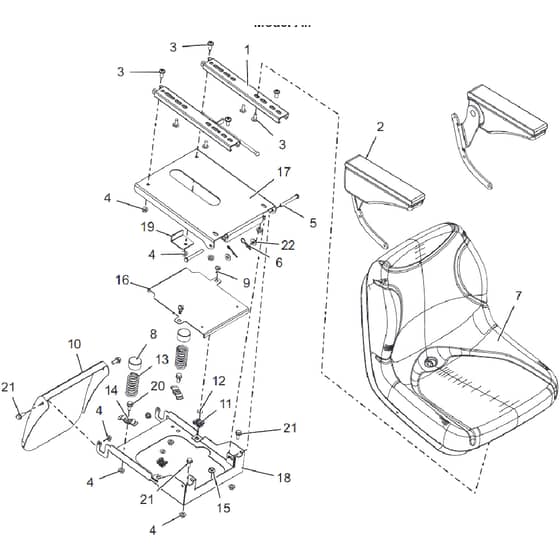

12 Seat And Seat Box Parts Diagram

	Part No.	Details
1	WE148021200 Available to backorder	Seat Slide Rails 2015	£59.84 £49.87
2	WE148021300 Available to backorder	Seat Arm Rest Kit 2015	£174.24 £145.20
3	WE019485200 Available to backorder	M8X20 Flange Dome Head Screw Zinc & C	£0.68 £0.57
5	WE059169000 Available to backorder	Clevis Pin Dia8mm X 70mmlong	£6.94 £5.78
6	WE06849100 In stock	2mm R Clip	£0.48 £0.40
7	WE148021100 Available to backorder	Seat 4Wd Cnt180M 2015	£340.08 £283.40
8	WE148021400 Available to backorder	Cap Round Plastic 34mm X 19.05mm	£3.41 £2.84
9	WE148996800 In stock	Stud ¼ Turn Slot Hd Dzus D1004050030	£7.76 £6.47
10	WE149496300 Available to backorder	PTO Flap Tractor He (Plastic)	£59.81 £49.84
11	WE149499900 In stock	Dzus Receptacle	£4.50 £3.75
12	WE149500000 Available to backorder	Dzus 14 Turn Retain Washer	£2.06 £1.72
13	WE258001000 Available to backorder	Seat Springcompression 71mm Long	£4.84 £4.03
15	WE52849700 Available to backorder	Grommet Small	£1.00 £0.83
16	WE549128600 Available to backorder	Guard MK4 PTO Cut Out Infill	£19.57 £16.31
17	WE549128700 Available to backorder	Plate Seat Running	£85.08 £70.90
18	WE549129900 Available to backorder	Brkt Seat Running Plate Mount	£94.80 £79.00
19	WE549130200 Available to backorder	Brkt Stop Seat Slide Rails 2015	£5.88 £4.90
20	WE019483600 In stock	M8 X 20 Flange Bolt	£0.48 £0.40
22	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
