Description

Countax A Series

A2550 - Tractor

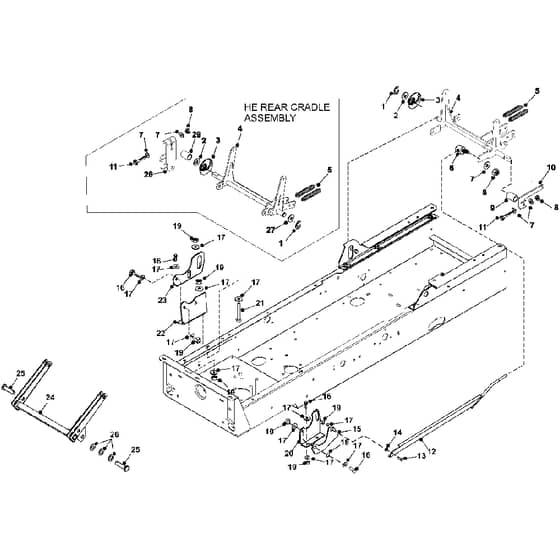

6 Rear Cradle Parts Diagram

	Part No.	Details
1	WE078000800 Available to backorder	E Clip M12 Plated	£0.91 £0.76
2	WE08942700 Available to backorder	M20 X 32 X 2mm Washe	£7.10 £5.92
3	WE30117601 Available to backorder	Rear Deck Level Cam	£25.84 £21.53
4	WE328968300 Available to backorder	Dk Manal Rear Deck Hanging Cradle Assem	£140.04 £116.70
4	WE321126200 Available to backorder	Diesel Rear Deck Hanging Cradle Assy	£152.40 £127.00
5	WE25885300 Available to backorder	Deck Assist Spring	£19.55 £16.29
6	WE189497900 Available to backorder	2002 A Series Deck Level Trunion	£20.34 £16.95
7	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
8	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
9	WE31323500 Available to backorder	H.E Lift Bar Spacer	£20.44 £17.03
10	WE301965400 Available to backorder	Ad Manual Deck Lift Lower Linkage Arm	£61.00 £50.83
11	WE018002400 Available to backorder	M10 X 55 Hex Head Bolt	£0.73 £0.61
12	WE327007900 Available to backorder	2050 Deck Level Bar	£95.04 £79.20
13	WE01902300 Available to backorder	Bolt M8X25mm	£0.40 £0.33
14	WE183529500 Available to backorder	Cseries Deck Lift Pivot Spacer	£11.52 £9.60
15	WE541109600 Available to backorder	2050 Deck Carry Plate	£47.38 £39.48
16	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.48 £0.40
17	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
18	WE18303500 Available to backorder	Spacer Deck Swing Plate	£8.52 £7.10
19	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
20	WE301054000 In stock	2050 Right Hand Front Deck Level Bracket	£41.38 £34.48
21	2182 In stock	M8X70mm Hex Bolt Zinc & Clear Passivate	£0.48 £0.40
22	WE301053900 Available to backorder	2050 Left Hand Front Deck Level Bracket	£70.32 £58.60
24	WE32703701 Available to backorder	Deck Carry Cradle Assembly Front	£186.12 £155.10
25	WE31339401 In stock	Deck Swing Lift Pin 12 X 46.5mm	£21.05 £17.54
26	2114 In stock	Washer M12 X 24 X 1.6	£0.48 £0.40
27	WE18302700 Available to backorder	Spacer	£10.37 £8.64
28	WE307192400 Available to backorder	Universal Deck Lift Arm Hiwin Actuator	£69.48 £57.90
29	WE01935700 Available to backorder	M8 X 35mm Bolt Compressor 119	£1.28 £1.07
