Countax A2550 - 3 Bonnet

Name: Countax A2550 - 3 Bonnet
SKU: a2550___3-group
Price: 0.32 GBP
Availability: InStock

Part No. a2550___3-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Countax A Series

A2550 - Tractor

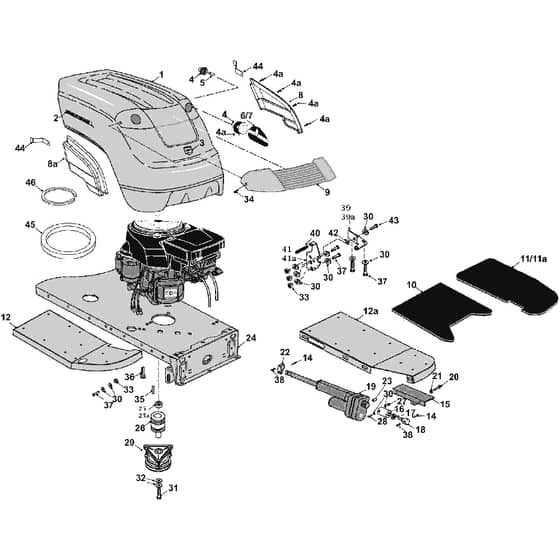

3 Bonnet Parts Diagram

	Part No.	Details
1	WE405007400 Available to backorder	2002 Countax Bonnet C800	£564.20 £470.17
2	WE359010100 Available to backorder	Alluminium Brush Finish Countax Badge	£12.58 £10.48
4	WE448008400 Available to backorder	Light C Series 2002 2Ba 008 221007	£55.88 £46.57
4	WE148014900 Available to backorder	Fir Tree Fixing C Series Head Lights (4a)	£0.38 £0.32
5	WE448008500 Available to backorder	Bulb C Series 2002 Py21W	£6.14 £5.12
6	WE148013500 Available to backorder	C Series LH Light Can 2002	£4.19 £3.49
7	WE148013600 Available to backorder	C Series RH Light Can 2002	£3.00 £2.50
8	WE149550800 Available to backorder	C Series Side Panel 2008 RH (8a)	£73.32 £61.10
8	WE149550900 Available to backorder	C Series Side Panel 2008 LH	£123.72 £103.10
9	WE148013400 Available to backorder	C Series Bonnet Lens 2002	£41.74 £34.78
10	WE148007400 Available to backorder	Yr 2000 2050 Centre Running Board Mat	£25.31 £21.09
11	WE148007300 Available to backorder	Yr 2000 2050 RH Running Mat (11a)	£17.83 £14.86
11	WE148007200 Available to backorder	Yr 2000 2050 LH Running Mat	£35.59 £29.66
12	WE321122500 Available to backorder	2050 RH Running Board	£194.40 £162.00
12	WE321122400 Available to backorder	2050 LH Running Board (12a)	£100.08 £83.40
14	WE189504800 Available to backorder	10mm Actuator Pin	£4.93 £4.11
15	WE327363500 Available to backorder	La12 Actuator Mounting Bracket	£29.82 £24.85
16	WE183028100 Available to backorder	Universal Act Attachment Body Aug 03	£10.60 £8.83
18	WE187184900 Available to backorder	Deck Lift Actuator Adjustment Screw	£5.16 £4.30
19	WE449664100 Available to backorder	X Series Hiwin Actuator +	£370.54 £308.78
20	WE018002400 Available to backorder	M10 X 55 Hex Head Bolt	£0.73 £0.61
21	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
22	WE307192400 Available to backorder	Universal Deck Lift Arm Hiwin Actuator	£69.48 £57.90
23	WE183023500 Available to backorder	La10 Fast Lift Actuator Bush	£9.26 £7.72
24	WE327006300 Available to backorder	2050 Chassis	£781.72 £651.43
25	WE189520100 Available to backorder	Engine Pulley Spacer (25a)	£35.59 £29.66
25	WE183028300 Available to backorder	Hanbrake C Series Only Eng Pulley Spacer	£3.72 £3.10
26	WE32957200 Available to backorder	Kawasaki Engine Clutch Pulley Weld Assy	£156.72 £130.60
28	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.00 £0.83
29	WE44815200 Available to backorder	Electric Clutch 2050	£505.28 £421.07
30	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
31	2193 In stock	Bolt 716 X 6In	£4.68 £3.90
32	WE18312200 Available to backorder	Engine Pulley Cap	£29.26 £24.38
33	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
34	WE18005100 Available to backorder	M4 X 16 Sckt Hd Counter Sunk Screw Sc	£0.42 £0.35
35	WE09853401 Available to backorder	Key14Sq X 1 14 American Spec Rounded	£2.06 £1.72
36	WE01848700 Available to backorder	38UNC X 1 14 Bolt BZP	£1.69 £1.41
37	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.48 £0.40
38	WE06861500 Available to backorder	332 X 12 Split Pin	£0.56 £0.47
39	WE301136400 Available to backorder	MK3 C Series Bonnet Hinge Brkt 2002 (39a)	£38.26 £31.88
39	WE301136300 Available to backorder	MK3 C Series Bonnet Hinge Brkt 2002	£38.02 £31.68
40	WE25805200 Available to backorder	Spring	£13.39 £11.16
41	WE301136500 Available to backorder	LH Bonnet Stop MK3 Plastic Bonnet	£11.62 £9.68
41	WE301136600 Available to backorder	RH Bonnet Stop MK3 Plastic Bonnet (41a)	£11.62 £9.68
42	WE183529500 Available to backorder	Cseries Deck Lift Pivot Spacer	£11.52 £9.60
43	7746 In stock	Bolt M8 X 25mm	£0.48 £0.40
44	WE308419300 Available to backorder	C800 Side Pannel Support Bracket 2008	£11.04 £9.20
45	WE149549100 Available to backorder	Kawasaki Engine Seal Discontinued	£29.26 £24.38
