Description

Countax A Series

A2550 - Tractor

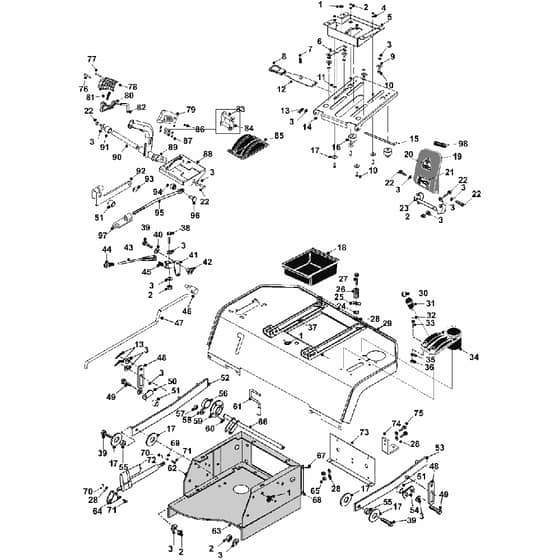

12 Seat And Deck Lift Parts Diagram

	Part No.	Details
1	WE52849700 Available to backorder	Grommet Small	£1.00 £0.83
2	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
3	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
5	WE301985401 Available to backorder	Seat Base Plate 2008	£66.12 £55.10
6	WE301985700 Available to backorder	Seat Mechanism Spring Retainer Plate	£34.79 £28.99
7	WE25831100 Available to backorder	Spring	£7.78 £6.48
8	WE149551800 Available to backorder	Tractor Seat Handle 2008	£1.93 £1.61
9	6408 In stock	M8 Internally Serrated Shakeproof Washe	£0.48 £0.40
10	6872 In stock	M8 X 16 Mscrew BZP	£0.48 £0.40
11	WE183856700 Available to backorder	Seat Running Plate Spacer	£1.80 £1.50
12	WE325000601 Available to backorder	Seat Release Mehcanism Lever Assembly	£17.76 £14.80
13	WE06849100 In stock	2mm R Clip	£0.48 £0.40
14	WE301985503 Available to backorder	Seat Running Plate 2008	£54.52 £45.43
15	WE31301800 Available to backorder	Seat Pivot Rod	£35.77 £29.81
16	WE149551900 Available to backorder	Rubber Seat Spring Retainer	£9.58 £7.98
18	WE14848500 Available to backorder	Tool Tray	£31.49 £26.24
19	WE149496300 Available to backorder	PTO Flap Tractor He (Plastic)	£59.81 £49.84
20	WE35809500 Available to backorder	PTO Danger Label	£32.11 £26.76
21	WE35891200 Available to backorder	Sweeper Belt Decal (Symbols Only)	£5.89 £4.91
22	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.48 £0.40
23	WE542032800 Available to backorder	Brkt PTO Flap A Series	£18.16 £15.13
24	WE31330800 Available to backorder	Spacer(He Cseries Seat Spring)	£5.41 £4.51
26	WE25858100 Available to backorder	Spring Sliding Seat	£12.52 £10.43
27	WE028003400 Available to backorder	M10 X 40mm Socket Capscrew Zinc Plated	£0.85 £0.71
28	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
29	WE327809500 Available to backorder	Adkv Rear Body	£335.88 £279.90
30	WE359505100 Available to backorder	Hbrake Handle Badge	£7.12 £5.93
31	WE149557300 Available to backorder	Handbrake Handle	£15.56 £12.97
32	WE148014300 Available to backorder	M6 Socket Screw Cap	£0.64 £0.53
33	2148 In stock	Bolt M6 X 20mm (Vac) ( Af037868 )	£0.48 £0.40
34	WE148013900 Available to backorder	C Series 2002 Cup Holder	£23.18 £19.32
35	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.48 £0.40
36	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
37	WE301985800 Available to backorder	Seat Attachment Channel 2008	£55.06 £45.88
38	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.00 £0.83
39	WE02941000 Available to backorder	Bolt M8 X 45mm (Vac)	£0.68 £0.57
40	WE08819800 In stock	Washer 516Id X 1Od Hd	£21.10 £17.58
42	WE183027400 Available to backorder	C Series Hbrake Chassis Joggle Plt Boss	£12.84 £10.70
43	WE32708701 Available to backorder	PTO Lever	£51.74 £43.12
44	WE14804800 Available to backorder	Lever Knob	£7.74 £6.45
46	WE18318000 Available to backorder	Rider Deck Brake Trunnion	£15.67 £13.06
47	WE313010800 Available to backorder	Rod	£105.36 £87.80
48	WE30133500 Available to backorder	H.E. Sweeper Lift Plate	£31.61 £26.34
49	7746 In stock	Bolt M8 X 25mm	£0.48 £0.40
50	WE327171600 Available to backorder	RH Sweep Lift Crossbar Con Pl Asy D1820	£40.06 £33.38
51	WE31323500 Available to backorder	H.E Lift Bar Spacer	£20.44 £17.03
52	WE32720300 Available to backorder	H.E. Sweeper Lift Arm RH	£132.48 £110.40
53	WE32721100 Available to backorder	H.E. Sweper Lift Arm LH	£109.32 £91.10
54	WE327171700 Available to backorder	LH Sweeper Crossbar Con Plate Asy D1820	£39.14 £32.62
55	WE189502700 Available to backorder	Spacer 12.7Od 10.2 Id 9mm Long	£28.09 £23.41
56	WE10811600 In stock	Bearing (PTO Housing)	£17.52 £14.60
57	2047 In stock	Nut	£0.34 £0.28
58	2053 In stock	M5 Washer Form C Od 12.5mm	£0.48 £0.40
59	WE27106601 In stock	Bearing Housing 17mm	£30.67 £25.56
60	2035 In stock	M5 X 16mm Flang Butt Hd Sckt Drive Scre	£0.48 £0.40
61	WE327012700 Available to backorder	5 Pulley Modified Pig Tail Assembly 98	£32.33 £26.94
62	WE327010401 Available to backorder	2050 Seat Box Welded Assembly 98	£132.12 £110.10
63	WE327006300 Available to backorder	2050 Chassis	£781.72 £651.43
64	WE302005600 Available to backorder	2050 Rear Lift Actuator Mounting	£32.23 £26.86
65	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
66	WE327009400 In stock	2050 Sweeper Lift Bar	Was £104.74 £87.28 Special Price £75.41 £62.84
67	WE128000100 Available to backorder	Rivet For Mulch Deck Liner	£1.00 £0.83
68	WE301140300 Available to backorder	Stainless Steel Wearstrip	£8.32 £6.93
69	WE183023500 Available to backorder	La10 Fast Lift Actuator Bush	£9.26 £7.72
70	2202 Available to backorder	18 X 12 Split Pin	£0.48 £0.40
71	WE189504800 Available to backorder	10mm Actuator Pin	£4.93 £4.11
73	WE301041600 Available to backorder	2050 Rear Chassis Panel	£42.00 £35.00
74	WE29200101 Available to backorder	Tow Bracket	£86.88 £72.40
75	8984 In stock	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.48 £0.40
76	2107 Available to backorder	M5 X 35 Csk Socket Head Screw Black	£0.48 £0.40
77	WE028004000 Available to backorder	M5 X 30mm Csk Socket Head Screw Black	£1.12 £0.93
78	WE149550400 Available to backorder	Deck Lift RH Handle Cover Black	£17.86 £14.88
79	WE149550500 Available to backorder	Deck Lift LH Handle Cover Black	£17.86 £14.88
80	WE149550601 Available to backorder	Manual Deck Lift Handle Trigger	£29.77 £24.81
81	WE259405900 Available to backorder	Manual Deck Lift Handle Spring 2008	£1.00 £0.83
82	WE327878100 Available to backorder	Deck Lift Handle Link Welded Assembly	£60.77 £50.64
83	WE301965300 Available to backorder	Manual Deck Lift Slide Plate	£12.25 £10.21
84	WE183528801 Available to backorder	Manual Deck Lift Link Slide Pin	£6.46 £5.38
85	WE149550700 Available to backorder	Manual Deck Lift RH Rear Body Cover	£29.77 £24.81
86	WE048001800 Available to backorder	M5 Half Nut Black Finish	£0.94 £0.78
87	WE07986100 Available to backorder	4mm Eclip D15004mm	£0.65 £0.54
88	WE327805900 Available to backorder	Manual Deck Lift Carry Plate Weld Assm	£177.72 £148.10
89	WE327805802 Available to backorder	Manual Deck Lift Handle Weld Assm	£131.04 £109.20
90	WE183528600 Available to backorder	Manual Deck Lift Handle Cross Shaft	£31.28 £26.07
91	WE183013800 Available to backorder	D1850Diesel PTO Spacer	£6.72 £5.60
92	WE301965400 Available to backorder	Ad Manual Deck Lift Lower Linkage Arm	£61.00 £50.83
93	WE183529500 Available to backorder	Cseries Deck Lift Pivot Spacer	£11.52 £9.60
94	WE183025600 Available to backorder	C Serieswestwood Sweeper Ball J Spacer	£27.25 £22.71
95	WE328968400 Available to backorder	Dk Deck Height Adjuster Yoke Assembly	£43.50 £36.25
96	WE313513100 Available to backorder	Clevis Pin	£14.63 £12.19
97	WE327806100 Available to backorder	Manual Deck Lift Adjuster Rod Plate Asse	£57.89 £48.24
98	WE148012200 Available to backorder	Plastic PTO Flap Foam Strip 140302	£7.93 £6.61
