Description

Countax A Series

A230D - Tractor

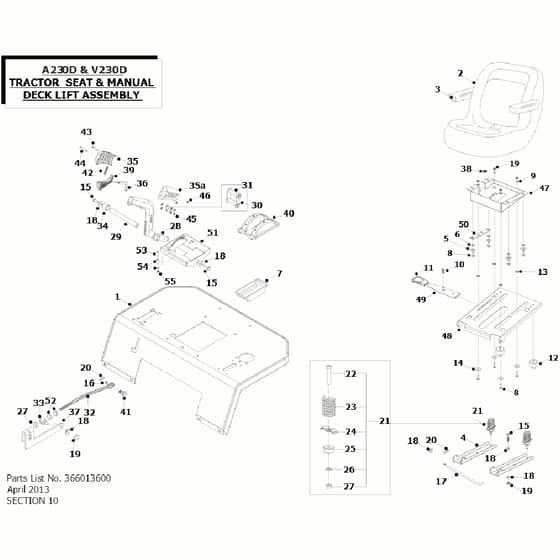

10 Seat And Deck Lift Parts Diagram

	Part No.	Details
1	WE328968900 Available to backorder	Diesel Rear Body Welded Assembly	£365.11 £304.26
2	WE405463500 Available to backorder	Kita25 Seat Conversion Milsco To Seat	£376.07 £313.39
4	WE301985800 Available to backorder	Seat Attachment Channel 2008	£55.06 £45.88
5	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
6	6408 In stock	M8 Internally Serrated Shakeproof Washe	£0.48 £0.40
7	WE148003700 Available to backorder	He Series Toolbox	£25.79 £21.49
8	6872 In stock	M8 X 16 Mscrew BZP	£0.48 £0.40
9	WE089422300 Available to backorder	M8 X 13 X 1 Mild Steel Washer Scolour	£1.00 £0.83
10	WE25831100 Available to backorder	Spring	£7.78 £6.48
11	WE149551800 Available to backorder	Tractor Seat Handle 2008	£1.93 £1.61
12	WE149551900 Available to backorder	Rubber Seat Spring Retainer	£9.58 £7.98
15	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.48 £0.40
16	WE183025600 Available to backorder	C Serieswestwood Sweeper Ball J Spacer	£27.25 £22.71
17	WE31301800 Available to backorder	Seat Pivot Rod	£35.77 £29.81
19	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
20	WE06849100 In stock	2mm R Clip	£0.48 £0.40
21	WE405003200 Available to backorder	Seat Spring Kit Assy	£9.20 £7.67
22	WE028003400 Available to backorder	M10 X 40mm Socket Capscrew Zinc Plated	£0.85 £0.71
23	WE25858100 Available to backorder	Spring Sliding Seat	£12.52 £10.43
25	WE31330800 Available to backorder	Spacer(He Cseries Seat Spring)	£5.41 £4.51
26	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
27	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
28	WE327805802 Available to backorder	Manual Deck Lift Handle Weld Assm	£131.04 £109.20
29	WE183528600 Available to backorder	Manual Deck Lift Handle Cross Shaft	£31.28 £26.07
30	WE301965300 Available to backorder	Manual Deck Lift Slide Plate	£12.25 £10.21
31	WE183528801 Available to backorder	Manual Deck Lift Link Slide Pin	£6.46 £5.38
32	WE328968400 Available to backorder	Dk Deck Height Adjuster Yoke Assembly	£43.50 £36.25
33	WE183020200 Available to backorder	2050 Diff Lock Pedal Trunnion	£12.85 £10.71
34	WE183013800 Available to backorder	D1850Diesel PTO Spacer	£6.72 £5.60
35	WE149550400 Available to backorder	Deck Lift RH Handle Cover Black	£17.86 £14.88
35	WE149550500 Available to backorder	Deck Lift LH Handle Cover Black (35a)	£17.86 £14.88
36	WE327878100 Available to backorder	Deck Lift Handle Link Welded Assembly	£60.77 £50.64
37	WE301965400 Available to backorder	Ad Manual Deck Lift Lower Linkage Arm	£61.00 £50.83
38	WE52849700 Available to backorder	Grommet Small	£1.00 £0.83
39	WE149550601 Available to backorder	Manual Deck Lift Handle Trigger	£29.77 £24.81
40	WE149550700 Available to backorder	Manual Deck Lift RH Rear Body Cover	£29.77 £24.81
41	WE313513100 Available to backorder	Clevis Pin	£14.63 £12.19
42	WE259405900 Available to backorder	Manual Deck Lift Handle Spring 2008	£1.00 £0.83
43	WE028004000 Available to backorder	M5 X 30mm Csk Socket Head Screw Black	£1.12 £0.93
44	2107 Available to backorder	M5 X 35 Csk Socket Head Screw Black	£0.48 £0.40
45	WE07986100 Available to backorder	4mm Eclip D15004mm	£0.65 £0.54
46	WE048001800 Available to backorder	M5 Half Nut Black Finish	£0.94 £0.78
47	WE301985401 Available to backorder	Seat Base Plate 2008	£66.12 £55.10
48	WE549000400 Available to backorder	Seat Running Plate	£21.48 £17.90
49	WE325000601 Available to backorder	Seat Release Mehcanism Lever Assembly	£17.76 £14.80
50	WE301985700 Available to backorder	Seat Mechanism Spring Retainer Plate	£34.79 £28.99
51	WE327805900 Available to backorder	Manual Deck Lift Carry Plate Weld Assm	£177.72 £148.10
52	2173 In stock	M10 Locknut	£0.48 £0.40
53	2148 In stock	Bolt M6 X 20mm (Vac) ( Af037868 )	£0.48 £0.40
54	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.48 £0.40
55	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
