Description

Countax A Series

A230D - Tractor

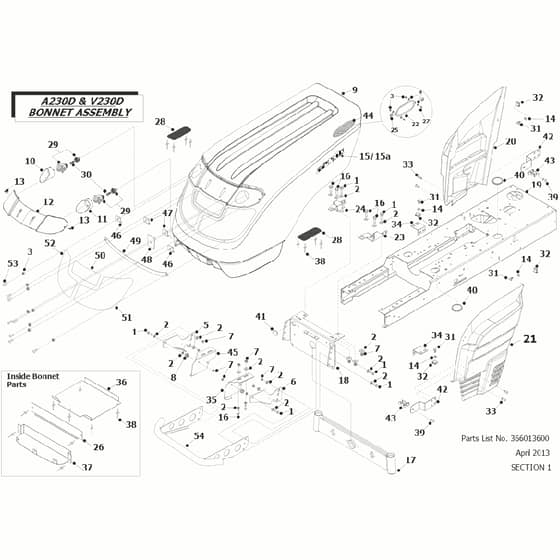

1 Bonnet Parts Diagram

	Part No.	Details
1	WE018005700 Available to backorder	Hx Hd Bolt Zink Plt & Clear Passivated	£0.91 £0.76
2	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
3	WE04826400 Available to backorder	M4 Nyloc T	£0.37 £0.31
5	WE541144500 Available to backorder	Diesel LH Bonnet Side Plate	£13.91 £11.59
6	WE541144600 Available to backorder	Dlesel RH Bonnet Side Plate	£13.91 £11.59
7	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
8	WE183017700 Available to backorder	Foot Control Clutch Pedal Pivot Boss	£4.38 £3.65
9	WE148015600 Available to backorder	2007 Diesel Bonnet	£336.90 £280.75
10	WE148013600 Available to backorder	C Series RH Light Can 2002	£3.00 £2.50
11	WE148013500 Available to backorder	C Series LH Light Can 2002	£4.19 £3.49
12	WE148013400 Available to backorder	C Series Bonnet Lens 2002	£41.74 £34.78
13	WE18005100 Available to backorder	M4 X 16 Sckt Hd Counter Sunk Screw Sc	£0.42 £0.35
14	WE149500000 Available to backorder	Dzus 14 Turn Retain Washer	£2.06 £1.72
15	WE359006400 Available to backorder	Westwood Right Hand Side Bonnet Badge	£30.72 £25.60
15	WE359010100 Available to backorder	Alluminium Brush Finish Countax Badge (15a)	£12.58 £10.48
16	7746 In stock	Bolt M8 X 25mm	£0.48 £0.40
17	WE327179300 Available to backorder	Kawasaki Solid Front Axle Welded Assy	£204.48 £170.40
18	WE327885900 Available to backorder	Axle Beam Bracket Welded Assembly	£70.08 £58.40
20	WE148992500 Available to backorder	Bonnet Side Panel Right Hand Side	£101.64 £84.70
21	WE148992400 Available to backorder	Bonnet Side Panel Left Hand Side	£99.60 £83.00
22	WE542002700 Available to backorder	Diesel Side Grille Clamp Plate	£0.74 £0.62
23	WE541094600 Available to backorder	Radiator Mounting Bracket (LH)	£6.85 £5.71
24	WE541094700 Available to backorder	Radiator Mounting Bracket (RH)	£6.85 £5.71
26	WE541127600 Available to backorder	D2350Ln Bonnet Foam Bracket	£2.39 £1.99
27	WE029427700 Available to backorder	M4 X 16mm Pozi Pan Set Screw	£0.48 £0.40
28	WE541106000 Available to backorder	Diesel Bonnet Grill	£1.52 £1.27
29	WE448008400 Available to backorder	Light C Series 2002 2Ba 008 221007	£55.88 £46.57
30	WE448008500 Available to backorder	Bulb C Series 2002 Py21W	£6.14 £5.12
31	WE149501800 Available to backorder	Dzus 14 Turn Alpha Console Wrap Fastene	£1.39 £1.16
32	WE149499900 In stock	Dzus Receptacle	£4.50 £3.75
33	WE128000100 Available to backorder	Rivet For Mulch Deck Liner	£1.00 £0.83
34	WE541094100 Available to backorder	Side Panel Bracket	£1.07 £0.89
35	WE328002700 Available to backorder	Asm Diesel RH Bonnet Bracket	£12.98 £10.82
36	WE541105800 Available to backorder	Diesel Yanmar Bonnet Engine Plate	£16.91 £14.09
37	WE541105900 Available to backorder	Diesel Yanmar Bonnet Bottom Plate	£8.29 £6.91
38	WE12950200 Available to backorder	Pop Rivet Lsr 16mm ( PTO Flap )	£0.43 £0.36
39	WE12860100 In stock	Rivet 4.8 X 16mm Alloy Pop 10314816	£0.35 £0.29
40	WE14945600 Available to backorder	Grommet (Large) Black11072	£2.42 £2.02
41	WE52848000 Available to backorder	Grommet Large	£1.82 £1.52
42	WE542001900 Available to backorder	Diesel Side Panel Clip Bracket	£7.48 £6.23
43	WE078861100 Available to backorder	58 Spring Steel Clip Rs Re ( 507804	£2.84 £2.37
44	WE541108300 Available to backorder	Diesel Bonnet Side Vent	£1.52 £1.27
45	WE328002600 Available to backorder	Asm Diesel LH Bonnet Bracket	£12.98 £10.82
46	WE542002300 Available to backorder	Diesel Bonnet Grille Outer Fixing Angle	£0.48 £0.40
47	WE542002400 Available to backorder	Diesel Bonnet Grille Inner Fixing Angle	£0.48 £0.40
48	WE542002200 Available to backorder	Diesel Middle Grille Base Fixing Brkt	£0.68 £0.57
49	WE542002100 Available to backorder	Diesel Bonnet Grille Base Fixing Strip	£1.92 £1.60
50	WE542011900 Available to backorder	Diesel Bonnet Centre Grill	£30.79 £25.66
51	WE542016400 Available to backorder	Grille Bonnet LH Diesel	£32.02 £26.68
52	WE542016500 Available to backorder	Grille Bonnet RH Diesel	£32.02 £26.68
53	WE029428500 Available to backorder	M4X20 Pozi Pan Head Screw	£0.96 £0.80
54	WE327125600 Available to backorder	Diesel Bull Bar Assembly	£109.92 £91.60
