Countax A2050 - From 01-01-2008 To 01-02-2008 - 3 Bonnet

Name: Countax A2050 - From 01-01-2008 To 01-02-2008 - 3 Bonnet
SKU: a2050_01012008_01022008_3-group
Price: 0.35 GBP
Availability: InStock

Part No. a2050_01012008_01022008_3-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax A2050 - From 01-01-2008 To 01-02-2008 - 3 Bonnet

Description

Countax A Series

A2050 - Tractor

From 01-01-2008 To 01-02-2008

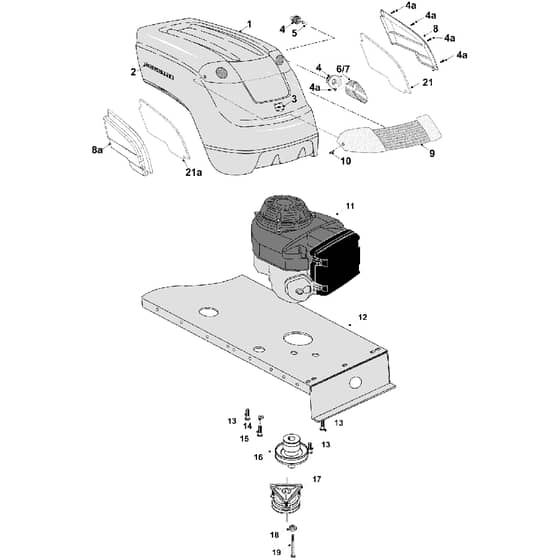

3 Bonnet Assembly Parts Diagram

	Part No.	Details
1	WE405007300 Available to backorder	2002 Countax Bonnet C300C400C600	£630.92 £525.77
2	WE359010100 Available to backorder	Alluminium Brush Finish Countax Badge	£12.58 £10.48
4	WE448008400 Available to backorder	Light C Series 2002 2Ba 008 221007	£55.88 £46.57
4	WE148012300 Available to backorder	Fir Tree Fixing For V2050 From Tfc (4a)	£3.54 £2.95
5	WE448008500 Available to backorder	Bulb C Series 2002 Py21W	£6.14 £5.12
6	WE148013500 Available to backorder	C Series LH Light Can 2002	£4.19 £3.49
7	WE148013600 Available to backorder	C Series RH Light Can 2002	£3.00 £2.50
8	WE149550900 Available to backorder	C Series Side Panel 2008 LH	£123.72 £103.10
8	WE149550800 Available to backorder	C Series Side Panel 2008 RH (8a)	£73.32 £61.10
9	WE148013400 Available to backorder	C Series Bonnet Lens 2002	£41.74 £34.78
10	WE18005100 Available to backorder	M4 X 16 Sckt Hd Counter Sunk Screw Sc	£0.42 £0.35
13	WE01848700 Available to backorder	38UNC X 1 14 Bolt BZP	£1.69 £1.41
14	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
15	WE01820700 Available to backorder	Bolt 516UNF X 1.12 HT ZP	£0.54 £0.45
16	WE32957200 Available to backorder	Kawasaki Engine Clutch Pulley Weld Assy	£156.72 £130.60
17	WE44815200 Available to backorder	Electric Clutch 2050	£505.28 £421.07
19	2193 In stock	Bolt 716 X 6In	£4.68 £3.90
21	WE37882101 Available to backorder	C Series Side Panel Foam LH (21a)	£23.99 £19.99
21	WE37882201 Available to backorder	C Series Side Panel Foam RH	£23.99 £19.99
