Countax A2050 - From 01-01-2007 To 01-01-2008 - 10 Deck Actuator And Hangers

Name: Countax A2050 - From 01-01-2007 To 01-01-2008 - 10 Deck Actuator And Hangers
SKU: a2050_01012007_01012008_10-group
Price: 0.28 GBP
Availability: InStock

Part No. a2050_01012007_01012008_10-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax A2050 - From 01-01-2007 To 01-01-2008 - 10 Deck Actuator And Hangers

Description

Countax A Series

A2050 - Tractor

From 01-01-2007 To 01-01-2008

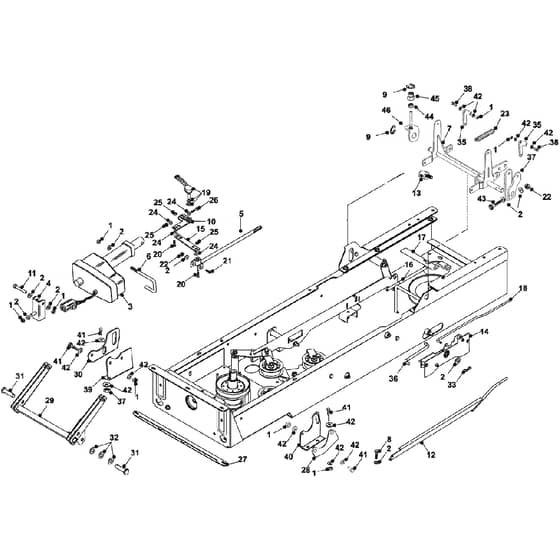

10 Deck Actuator And Hangers Parts Diagram

	Part No.	Details
1	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
2	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
4	WE327008300 Available to backorder	Deck Lift Actuator Mounting Bracket	£19.58 £16.32
5	WE327007801 Available to backorder	A2050 Deck Lift Con Rod	£40.10 £33.42
6	WE313004900 Available to backorder	2050 Front Actuator Clamp	£4.81 £4.01
7	WE321126200 Available to backorder	Diesel Rear Deck Hanging Cradle Assy	£152.40 £127.00
8	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.48 £0.40
9	2147 In stock	E Clip 34	£0.91 £0.76
10	WE301040600 Available to backorder	98 He Potentiometer Bracket	£5.93 £4.94
11	WE018002300 Available to backorder	M10 X 50 Hex Head Bolt	£0.73 £0.61
12	WE327007900 Available to backorder	2050 Deck Level Bar	£95.04 £79.20
13	WE189497500 Available to backorder	2002 Tractor Deck Level Trunion	£26.23 £21.86
14	WE405002300 Available to backorder	2050 Transmission Cassette	£175.92 £146.60
16	WE313004700 Available to backorder	2050 Brake Rod	£21.40 £17.83
17	WE302005300 Available to backorder	2050 Transaxle Brake Ext	£21.44 £17.87
18	WE313022000 Available to backorder	K1850D1850 & 2050 Metric Rod	£40.28 £33.57
20	7274 In stock	M5 X 16mm Pozi Pan	£0.48 £0.40
22	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
23	WE25885300 Available to backorder	Deck Assist Spring	£19.55 £16.29
25	2047 In stock	Nut	£0.34 £0.28
26	WE18000100 Available to backorder	Bolt M5 X 20mm (Vac)	£0.58 £0.48
27	WE302005100 Available to backorder	2050 Clutch Bar	£45.83 £38.19
29	WE32703701 Available to backorder	Deck Carry Cradle Assembly Front	£186.12 £155.10
31	WE31339401 In stock	Deck Swing Lift Pin 12 X 46.5mm	£21.05 £17.54
32	2114 In stock	Washer M12 X 24 X 1.6	£0.48 £0.40
33	WE06849100 In stock	2mm R Clip	£0.48 £0.40
35	WE301143200 Available to backorder	Multible Deck Lift Link	£59.98 £49.98
36	WE327175600 Available to backorder	D1850A2050 Fwd & Rev Cassette Rod Assy	£40.25 £33.54
37	WE30840300 Available to backorder	Extended Deck Lift Arm Hiwin Actuator	£60.83 £50.69
38	WE018005700 Available to backorder	Hx Hd Bolt Zink Plt & Clear Passivated	£0.91 £0.76
39	WE301053900 Available to backorder	2050 Left Hand Front Deck Level Bracket	£70.32 £58.60
40	WE301054000 In stock	2050 Right Hand Front Deck Level Bracket	£41.38 £34.48
43	WE018002400 Available to backorder	M10 X 55 Hex Head Bolt	£0.73 £0.61
44	WE049382500 Available to backorder	M16 Half Nut BZP	£1.72 £1.43
45	WE189501800 Available to backorder	Deck Level Hex Adjuster Nut Nov 04	£16.74 £13.95
46	WE328961400 Available to backorder	Diesel & Kawasaki Rear Deck Adjust Brkt	£35.21 £29.34
