Countax A2050 - From 01-01-1998 To 01-01-2007 - 9 Deck Actuator And Hangers

Name: Countax A2050 - From 01-01-1998 To 01-01-2007 - 9 Deck Actuator And Hangers
SKU: a2050_01011998_01012007_9-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax A2050 - From 01-01-1998 To 01-01-2007 - 9 Deck Actuator And Hangers

Description

Countax A Series

A2050 - Tractor

From 01-01-1998 To 01-01-2007

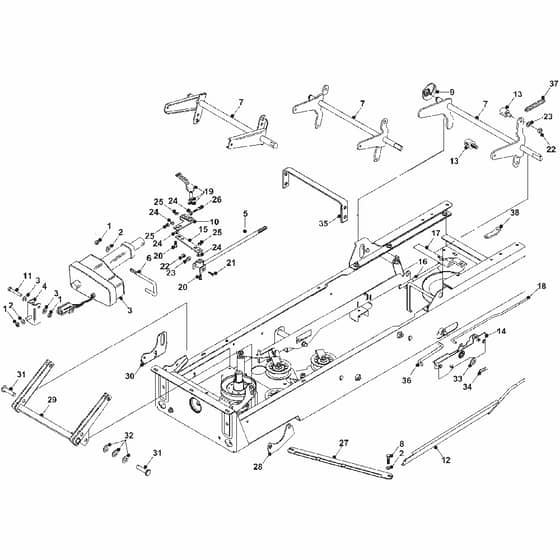

9 Deck Actuator And Hangers Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	2094 Available to backorder	Nyloc Nut 516 UNF	£0.26 £0.22
2	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
4	WE327008300 Available to backorder	Deck Lift Actuator Mounting Bracket	£18.94 £15.78
5	WE327007801 Available to backorder	A2050 Deck Lift Con Rod	£38.78 £32.32
6	WE313004900 Available to backorder	2050 Front Actuator Clamp	£4.66 £3.88
7	WE321126200 Available to backorder	Diesel Rear Deck Hanging Cradle Assy	£152.36 £126.97
7	WE328954300 Available to backorder	A2050 He 1999 Rear Cradle	£144.77 £120.64
7	WE328954200 Available to backorder	V A Manual Series Rear Deck Hang Brkt	£132.68 £110.57
8	2141 In stock	Set Screw	£0.64 £0.53
9	WE30117601 Available to backorder	Rear Deck Level Cam	£24.98 £20.82
10	WE301040600 Available to backorder	98 He Potentiometer Bracket	£5.74 £4.78
11	2186 Available to backorder	Bolt 516UNF X 2 Zincclear UNF	£0.90 £0.75
12	WE327007900 Available to backorder	2050 Deck Level Bar	£95.00 £79.17
13	WE189497500 Available to backorder	2002 Tractor Deck Level Trunion	£25.36 £21.13
14	WE405002300 Available to backorder	2050 Transmission Cassette	£175.90 £146.58
16	WE313004700 Available to backorder	2050 Brake Rod	£20.69 £17.24
17	WE302005300 Available to backorder	2050 Transaxle Brake Ext	£20.72 £17.27
20	7274 In stock	M5 X 16mm Pozi Pan	£0.40 £0.33
21	WE01902300 Available to backorder	Bolt M8X25mm	£0.38 £0.32
22	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
23	WE08819800 In stock	Washer 516Id X 1Od Hd	£19.68 £16.40
25	2047 In stock	Nut	£0.90 £0.75
26	WE18000100 Available to backorder	Bolt M5 X 20mm (Vac)	£0.58 £0.48
27	WE302005100 Available to backorder	2050 Clutch Bar	£44.30 £36.92
28	WE541109600 Available to backorder	2050 Deck Carry Plate	£45.80 £38.17
29	WE32703701 Available to backorder	Deck Carry Cradle Assembly Front	£178.68 £148.90
30	WE301040000 Available to backorder	2050 Deck Lever Bracket	£38.48 £32.07
31	WE31339401 In stock	Deck Swing Lift Pin 12 X 46.5mm	£19.64 £16.37
32	2114 In stock	Washer M12 X 24 X 1.6	£0.47 £0.39
33	2110 Available to backorder	Washer 38 T3 ZP	£0.14 £0.12
34	2195 In stock	Rue Clip	£0.76 £0.63
36	WE327175600 Available to backorder	D1850A2050 Fwd & Rev Cassette Rod Assy	£38.90 £32.42
37	WE25885300 Available to backorder	Deck Assist Spring	£19.90 £16.58
38	WE307183500 Available to backorder	V2050 Deck Lift Spring Anchor 060302	£20.57 £17.14
