Countax A2050 - From 01-01-1998 To 01-01-2007 - 6 Bonnet After 2003

Description

Countax A Series

A2050 - Tractor

From 01-01-1998 To 01-01-2007

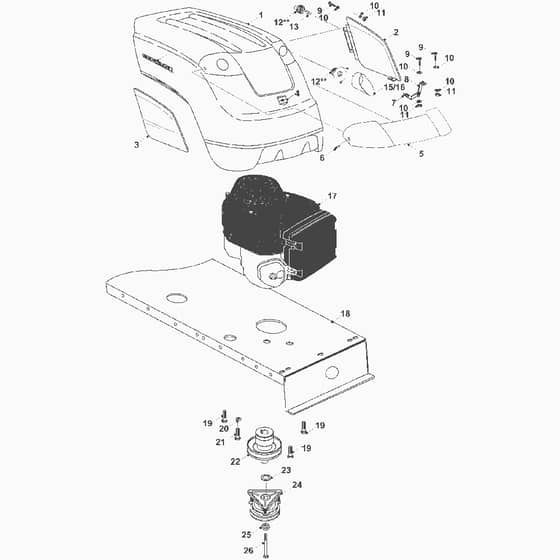

6 Bonnet Assembly After 2003 Parts Diagram

	Part No.	Details
1	WE405008100 Available to backorder	Bonnet A2050 MK2 2003	£307.32 £256.10
2	WE148014100 Available to backorder	Side Panel LH C Series 2002	£88.20 £73.50
3	WE148014200 Available to backorder	Side Panel RH C Series 2002	£88.68 £73.90
5	WE148013400 Available to backorder	C Series Bonnet Lens 2002	£41.74 £34.78
6	WE18005100 Available to backorder	M4 X 16 Sckt Hd Counter Sunk Screw Sc	£0.42 £0.35
7	WE301137200 Available to backorder	Common Front Side Panel Fixing Brkt LH	£16.81 £14.01
8	WE301137700 Available to backorder	C Series Front Side Panel Fix Brkt RH	£16.81 £14.01
9	WE019479400 Available to backorder	M6 X 20mm Lng Sckt Hd Cap Screw Sc	£0.68 £0.57
10	2010 Available to backorder	14 T4 Hp Washer	£0.48 £0.40
11	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
13	WE448008500 Available to backorder	Bulb C Series 2002 Py21W	£6.14 £5.12
15	WE148013500 Available to backorder	C Series LH Light Can 2002	£4.19 £3.49
16	WE148013600 Available to backorder	C Series RH Light Can 2002	£3.00 £2.50
19	WE01848700 Available to backorder	38UNC X 1 14 Bolt BZP	£1.69 £1.41
20	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
21	WE01820700 Available to backorder	Bolt 516UNF X 1.12 HT ZP	£0.54 £0.45
22	WE183005300 Available to backorder	2050 Upper Engine Pulley	£168.72 £140.60
24	WE44815200 Available to backorder	Electric Clutch 2050	£505.28 £421.07
25	WE183016800 Available to backorder	2050 Engine Pulley Cap	£45.48 £37.90
26	2193 In stock	Bolt 716 X 6In	£4.68 £3.90
