Countax A2050 - From 01-01-1998 To 01-01-2007 - 19 Running Board And Rear Body

Description

Countax A Series

A2050 - Tractor

From 01-01-1998 To 01-01-2007

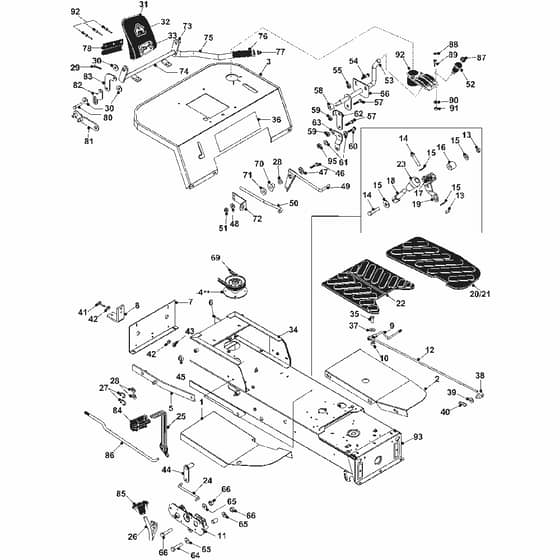

19 Running Board And Rear Body Parts Diagram

	Part No.	Details
1	WE321122500 Available to backorder	2050 RH Running Board	£194.40 £162.00
3	WE328954600 Available to backorder	A2050H Rear Body Welded Assembly	£190.68 £158.90
4	WE208000400 Available to backorder	5 PTO Pulley	£43.03 £35.86
5	WE32720300 Available to backorder	H.E. Sweeper Lift Arm RH	£132.48 £110.40
6	WE32721100 Available to backorder	H.E. Sweper Lift Arm LH	£109.32 £91.10
7	WE301041600 Available to backorder	2050 Rear Chassis Panel	£42.00 £35.00
8	WE29200101 Available to backorder	Tow Bracket	£86.88 £72.40
9	WE32958300 Available to backorder	A D Deck Ten Lvr Ass	£16.39 £13.66
10	WE18317400 Available to backorder	Deck Height Pivot Boss	£9.26 £7.72
11	WE401002100 Available to backorder	Pedal Cassette Kit To Replace 405006000	£128.28 £106.90
12	WE318963201 Available to backorder	C Series PTO Rod	£72.60 £60.50
13	2094 In stock	Nyloc Nut 516 UNF	£0.48 £0.40
14	WE01820700 Available to backorder	Bolt 516UNF X 1.12 HT ZP	£0.54 £0.45
15	WE08819800 In stock	Washer 516Id X 1Od Hd	£21.10 £17.58
16	WE31329200 Available to backorder	Cseries Roller Plate Bush	£33.17 £27.64
17	WE25831100 Available to backorder	Spring	£7.78 £6.48
18	WE32708701 Available to backorder	PTO Lever	£51.74 £43.12
23	WE14804800 Available to backorder	Lever Knob	£7.74 £6.45
24	WE327175600 Available to backorder	D1850A2050 Fwd & Rev Cassette Rod Assy	£40.25 £33.54
25	WE321123900 Available to backorder	Forward Pedal A2050 Hcbc Models	£49.90 £41.58
26	WE321124000 Available to backorder	Reverse Pedal A2050 Hcbc Models	£86.76 £72.30
27	WE078000800 Available to backorder	E Clip M12 Plated	£0.91 £0.76
28	2114 In stock	Washer M12 X 24 X 1.6	£0.48 £0.40
29	WE06849100 In stock	2mm R Clip	£0.48 £0.40
30	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
31	WE149496400 Available to backorder	PTO Flap Shell Tractor Manual (Plastic)	£59.81 £49.84
33	WE35891200 Available to backorder	Sweeper Belt Decal (Symbols Only)	£5.89 £4.91
34	WE327010400 Available to backorder	2050 Seat Box Assy	£94.80 £79.00
35	2188 In stock	Bolt 516 UNF X 1 34 BZP	£0.71 £0.59
39	2110 In stock	Washer 38 T3 ZP	£0.48 £0.40
40	2195 In stock	Rue Clip	£1.25 £1.04
41	WE01915300 Available to backorder	M10 X 110mm Bolt Sc (Kohler 14Hp Only)	£2.40 £2.00
42	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
43	2173 In stock	M10 Locknut	£0.48 £0.40
44	WE327022200 Available to backorder	2050 Brake Link Bracket	£81.00 £67.50
45	WE31323500 Available to backorder	H.E Lift Bar Spacer	£20.44 £17.03
46	2186 Available to backorder	Bolt 516UNF X 2 Zincclear UNF	£1.08 £0.90
47	WE183529500 Available to backorder	Cseries Deck Lift Pivot Spacer	£11.52 £9.60
49	WE321122200 Available to backorder	2050 Pedal Plate Assy	£32.40 £27.00
50	WE313010400 Available to backorder	2050 Diff Lock Control Rod	£56.46 £47.05
54	2148 In stock	Bolt M6 X 20mm (Vac) ( Af037868 )	£0.48 £0.40
55	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
56	WE301119100 Available to backorder	2050 Park Brake Lever Support Plate	£13.75 £11.46
57	8999 In stock	M8 X 30 Roofing Bolt	£0.48 £0.40
58	WE183018700 In stock	2050 Park Brake Lever Spacer	Was £3.44 £2.87 Special Price £1.19 £0.99
59	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
60	8416 In stock	Bolt M8 X 50mm	£0.46 £0.38
62	WE301120100 Available to backorder	2050 Park Brake Upper Link Plate	£31.88 £26.57
63	WE301120200 Available to backorder	2050 Park Brake Lower Link Plate	£21.97 £18.31
64	WE028662400 Available to backorder	Bolt 14In X 3In	£0.58 £0.48
65	WE08822700 Available to backorder	Washer 58 T3 Lp	£1.00 £0.83
66	WE01857700 Available to backorder	14 X 2 HT Bolt	£0.58 £0.48
69	WE228001200 In stock	Belt A49 Super Ii	£27.20 £22.67
70	WE183853800 Available to backorder	Universal Jockey Pivot Spacer	£51.43 £42.86
71	WE31326100 Available to backorder	P.T.O. Bridge Spacer H.E. Tractor	£7.06 £5.88
72	WE307190600 Available to backorder	Adkv Brake Switch Plate 2003	£7.04 £5.87
73	WE327181300 Available to backorder	V2050 Sweeper Lift Lever Shaft Link Plt	£17.95 £14.96
74	WE327181000 Available to backorder	V2050 Sweeper Lift Handle Tube Assembly	£60.71 £50.59
76	WE38936500 In stock	Foam Grip ( Fg13 )	£14.33 £11.94
78	WE149496500 Available to backorder	PTO Flap Hinge Tractor Manual (Plastic)	£21.85 £18.21
80	2141 In stock	Set Screw	£0.38 £0.32
81	WE328954500 Available to backorder	A2050H Sweeper Lift Arm Assy LH	£19.86 £16.55
82	WE307189900 Available to backorder	A2050H Sweeper Lift Lower Link	£18.30 £15.25
83	WE307190000 Available to backorder	A2050H Sweeper Lift Upper Link	£15.40 £12.83
84	WE148013700 Available to backorder	C Series Fwd Large Pedal Rubber 2002	£15.67 £13.06
85	WE148013800 In stock	C Series Small Rev Pedal Rubber 2002	£14.30 £11.92
87	WE359505100 Available to backorder	Hbrake Handle Badge	£7.12 £5.93
88	WE148014300 Available to backorder	M6 Socket Screw Cap	£0.64 £0.53
89	WE18000100 Available to backorder	Bolt M5 X 20mm (Vac)	£0.58 £0.48
90	2010 Available to backorder	14 T4 Hp Washer	£0.48 £0.40
92	WE148013900 Available to backorder	C Series 2002 Cup Holder	£23.18 £19.32
93	WE327023301 Available to backorder	Chassis Cseries MK3	£456.52 £380.43
