Countax 36 Side Discharge Deck Mk2 - - 36 Side Discharge Deck Mk2

Name: Countax 36 Side Discharge Deck Mk2 - - 36 Side Discharge Deck Mk2
SKU: countax_deck_36sidedischargedeckmk2_36-group
Price: 0.32 GBP
Availability: InStock

Part No. countax_deck_36sidedischargedeckmk2_36-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax 36 Side Discharge Deck Mk2 - - 36 Side Discharge Deck Mk2

Description

Countax SIDE DISCHARGE

36 SIDE DISCHARGE DECK MK2 - Deck

From To -

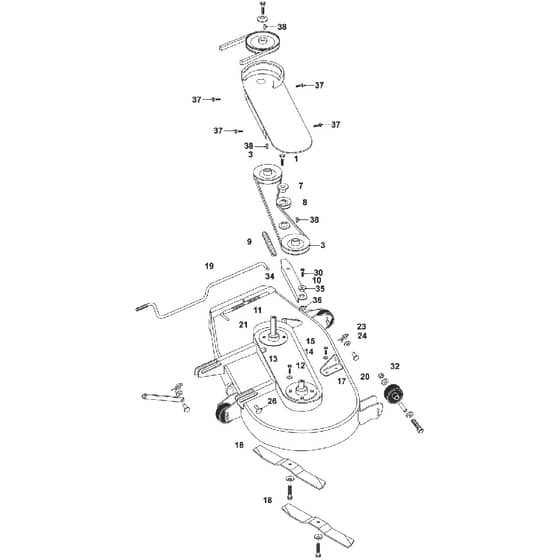

36 Side Discharge Deck Mk2 Parts Diagram

	Part No.	Details
1	2106 In stock	Set Screw	£0.48 £0.40
3	WE20869502 In stock	5Internal Pulley.Keyway	£74.11 £61.76
7	WE18831600 Available to backorder	Spacer Jockey Wheel	£45.41 £37.84
8	WE20880800 Available to backorder	F1875 X0750 Plastic Pulley	£60.24 £50.20
9	WE25906200 In stock	Deck Tension Spring	£21.19 £17.66
11	WE40503507 In stock	Deck Bearing Housing Assy Long	£128.50 £107.08
13	2146 In stock	Set Screw	£0.50 £0.42
14	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
15	2141 In stock	Set Screw	£0.38 £0.32
23	2195 In stock	Rue Clip	£1.25 £1.04
24	2114 In stock	Washer - M12 X 24 X 1.6	£0.48 £0.40
26	WE31336800 In stock	Deck Lift Pin (Front)	£38.65 £32.21
30	WE01821200 In stock	Bolt 5.16 X 2.3.4	£1.21 £1.01
35	WE52824700 Available to backorder	Oilite Bush	£13.55 £11.29
37	2198 In stock	Self Drilling Screw Hex Head 4	£0.60 £0.50
38	2191 In stock	Key 1.4 X 1 Rounded	£0.48 £0.40
