Countax 36 Side Discharge Deck Mk1 - - 36 Side Discharge Deck Mk1

Description

Countax SIDE DISCHARGE

36 SIDE DISCHARGE DECK MK1 - Deck

From To -

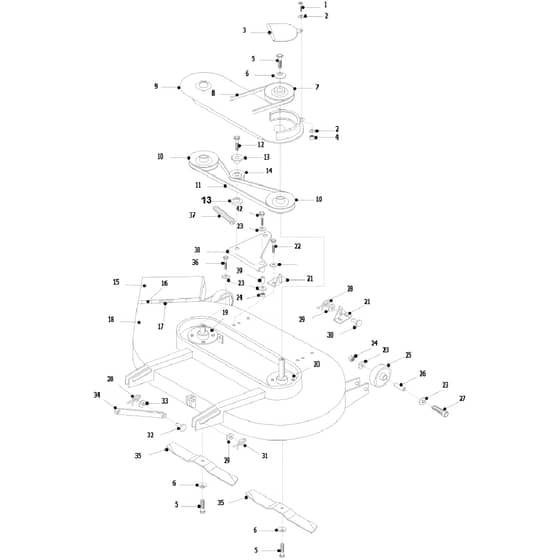

36 Side Discharge Deck Mk1 Parts Diagram

	Part No.	Details
1	2106 In stock	Set Screw	£0.48 £0.40
2	2010 Available to backorder	1.4 T4 Hp Washer	£0.48 £0.40
3	2185 Available to backorder	Nyloc Nut1.4UNF	£0.48 £0.40
5	8419 In stock	Bolt 3.8 X 1 1.4 UNF	£0.72 £0.60
6	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£15.24 £12.70
10	WE20869502 In stock	5Internal Pulley.Keyway	£74.11 £61.76
12	WE307187100 Available to backorder	Belt Keeper	£17.66 £14.72
13	WE18831600 Available to backorder	Spacer Jockey Wheel	£45.41 £37.84
14	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
17	WE22926000 Available to backorder	Spring Side Discharge Deck	£4.57 £3.81
21	WE30121400 Available to backorder	Rear Deck Hanger Bracket L.H	£21.64 £18.03
22	2141 In stock	Set Screw	£0.38 £0.32
25	WE19905500 In stock	Anti Scalp Wheel 1.2 Bore (Box	£16.61 £13.84
26	WE31337600 In stock	Scuff Wheel Hub. Belt Guard Sp	Was £46.94 £39.12 Special Price £32.86 £27.38
27	WE01821200 In stock	Bolt 5.16 X 2.3.4	£1.21 £1.01
28	2195 In stock	Rue Clip	£1.25 £1.04
29	2114 In stock	Washer - M12 X 24 X 1.6	£0.48 £0.40
30	WE31337200 In stock	Deck Lift Pin (Rear)	£14.56 £12.13
31	WE31336800 In stock	Deck Lift Pin (Front)	£38.65 £32.21
32	WE31338200 In stock	Deck Push Rod Pin	£24.84 £20.70
33	2110 In stock	Washer 3.8 T3 Z.P	£0.48 £0.40
36	2146 In stock	Set Screw	£0.50 £0.42
37	WE25906200 In stock	Deck Tension Spring	£21.19 £17.66
39	WE183853800 Available to backorder	Universal Jockey Pivot Spacer	£51.43 £42.86
42	WE01820700 Available to backorder	Bolt 5.16UNF X 1.1.2 HT Z.P	£0.54 £0.45
