Countax 30100024 Pgc+ And Cassettes - 03 Body Stiffener Bracker

Name: Countax 30100024 Pgc+ And Cassettes - 03 Body Stiffener Bracker
SKU: 30100024pgcandcassettes___03-group
Price: 0.26 GBP
Availability: InStock

Part No. 30100024pgcandcassettes___03-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax 30100024 Pgc+ And Cassettes - 03 Body Stiffener Bracker

Description

Countax PGC

30100024 PGC+ AND CASSETTES - Power Grass Collector

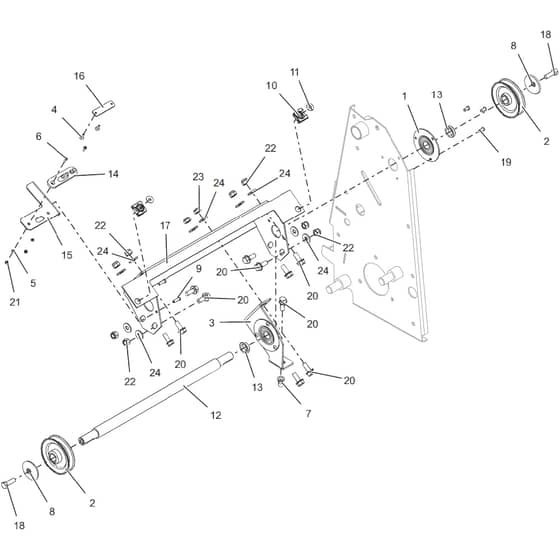

03 Body Stiffener Bracker Parts Diagram

	Part No.	Details
1	WE407001700 Available to backorder	Asm Bearing 17mm	£33.52 £27.93
2	WE209046300 Available to backorder	Pulley 3 PGC Input With Keyway	£57.64 £48.03
3	WE325001800 Available to backorder	Wldmt Input Bearing Housing	£53.63 £44.69
4	WE019484400 Available to backorder	K3.0mm X 12mm Pt Screws	£0.31 £0.26
5	WE019485400 Available to backorder	M3 Form A Washer	£0.48 £0.40
6	WE028003600 Available to backorder	M3 X 10 Pozi Pan Hd Screw - Zi	£0.37 £0.31
7	WE048382300 Available to backorder	M8 Flanged Rivet Nut 0.5-3.0 G	£1.58 £1.32
8	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£15.24 £12.70
9	WE12860100 In stock	Rivet 4.8 X 16mm Alloy Pop 103	£0.35 £0.29
10	WE149499900 In stock	Dzus Receptacle	£4.50 £3.75
11	WE149500000 Available to backorder	Dzus 1.4 Turn Retain Washer	£2.06 £1.72
12	WE184000900 Available to backorder	Shaft Input	£176.76 £147.30
14	WE449883800 Available to backorder	Switch Spring Loaded Contact	£7.16 £5.97
15	WE541152900 Available to backorder	Brkt Front Guard Switch	£9.72 £8.10
16	WE549109900 Available to backorder	Plate Guard Contact Switch	£6.35 £5.29
17	WE549305900 Available to backorder	Brkt PGC Body Stiffener	£21.22 £17.68
19	WE12824400 Available to backorder	Pop Rivet 4.8mm X 10mm	£1.30 £1.08
20	WE019483600 In stock	M8 X 20 Flange Bolt	£0.48 £0.40
21	WE04912700 Available to backorder	M3 Nyloc Nut He Tractor	£0.56 £0.47
22	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
24	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
