Countax 30100022 Pgc+ And Cassettes - 08 Scarifier Cassette

Description

Countax PGC

30100022 PGC+ AND CASSETTES - Power Grass Collector

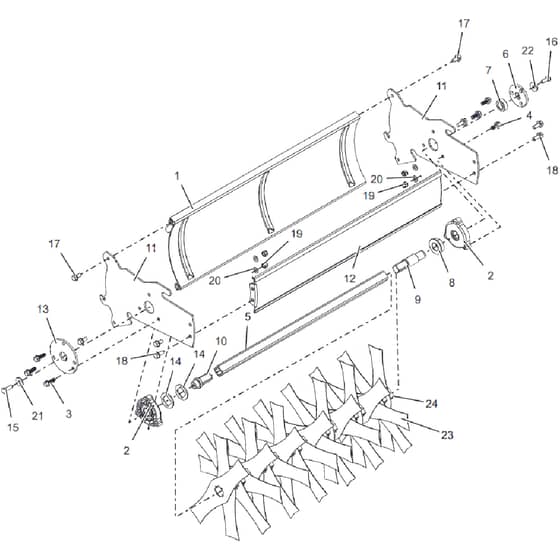

08 Scarifier Cassette Assembly Parts Diagram

	Part No.	Details
1	WE324000800 Available to backorder	Wldmtpgc Rear Curved Panel	£88.92 £74.10
2	WE501003900 Available to backorder	Subhousing & Bear 184044800 +	£81.44 £67.87
3	WE028004800 In stock	Screwm8 X 25mm Taptite Din7500	£2.10 £1.75
4	WE028715200 Available to backorder	Screwm8 X 20mm Taptite Din7500	£1.12 £0.93
5	WE178125900 In stock	Tube Scarifier Cassette Drive	Was £94.43 £78.69 Special Price £65.72 £54.77
6	WE184045000 Available to backorder	Plate Cassette Female Drive	£11.75 £9.79
7	WE185094000 Available to backorder	Spcr Drive Plate	£17.44 £14.53
8	WE187189700 Available to backorder	Collar Blade Lock (Scarifier C	£10.01 £8.34
10	WE189548200 Available to backorder	Spindle Scarifier Driven	£64.20 £53.50
11	WE542033400 Available to backorder	Plate Cassette End	£27.25 £22.71
12	WE542033600 Available to backorder	Throwplate Cassette Front	£35.46 £29.55
13	WE542034000 Available to backorder	Plate Cassette Locking	£13.01 £10.84
14	WE549306100 Available to backorder	Washer Scarifier Shim	£14.71 £12.26
16	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
17	WE019483500 Available to backorder	M8 X 16 Flange Bolt	£1.12 £0.93
18	WE019483600 In stock	M8 X 20 Flange Bolt	£0.48 £0.40
19	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
21	WE08819800 In stock	Washer 5.16Id X 1Od Hd	£21.10 £17.58
22	8417 In stock	Washer M8 X 25 X 3 Unplated	£0.48 £0.40
23	WE169384300 In stock	Blade Scarifier Tine	£18.23 £15.19
24	WE179555400 Available to backorder	Spacer Scarrifier Tine Plated	£5.42 £4.52
