Countax 30100022 Pgc+ And Cassettes - 05 Left Hand Controls

Name: Countax 30100022 Pgc+ And Cassettes - 05 Left Hand Controls
SKU: 30100022pgcandcassettes___05-group
Price: 0.32 GBP
Availability: InStock

Part No. 30100022pgcandcassettes___05-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax 30100022 Pgc+ And Cassettes - 05 Left Hand Controls

Description

Countax PGC

30100022 PGC+ AND CASSETTES - Power Grass Collector

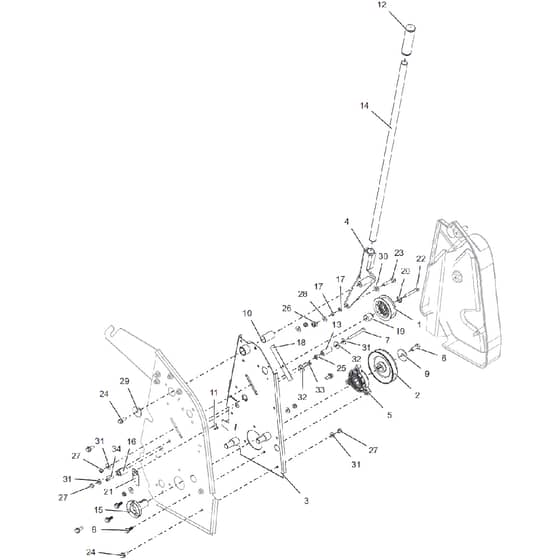

05 Left Hand Controls Parts Diagram

	Part No.	Details
1	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
2	WE20869502 In stock	5Internal Pulley.Keyway	£74.11 £61.76
3	WE325001600 Available to backorder	Wldmt LH Cassette Carrier	£145.68 £121.40
4	WE327182100 Available to backorder	Asm Net Pivot Arm	£98.16 £81.80
5	WE407001500 Available to backorder	Housing Asm Main Shaft Bearing	£76.56 £63.80
6	8420 In stock	M10 X 25 S.Screw BZP	£0.48 £0.40
7	2182 In stock	M8X70mm Hex Bolt Zinc & Clear	£0.48 £0.40
8	WE028715200 Available to backorder	Screwm8 X 20mm Taptite Din7500	£1.12 £0.93
9	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£15.24 £12.70
10	WE109011600 Available to backorder	Axle Bearing Plastic - Igus Ps	£27.20 £22.67
11	WE128000700 Available to backorder	4.8 X 20mm Pop Rivet	£1.00 £0.83
12	WE148987100 Available to backorder	Rubber Handle Grip Ig166	£6.24 £5.20
13	WE149498300 Available to backorder	Spacer 8.2 X 18X 40 0056110000	£8.40 £7.00
14	WE179555800 Available to backorder	Tube Net Tipping Handle	£98.16 £81.80
15	WE184045100 Available to backorder	Spindle Cassette Male Drive	£43.18 £35.98
16	WE184045300 Available to backorder	Pin Cassette Lock	£33.43 £27.86
17	WE186003600 Available to backorder	Steerng Rodend Spacer	£9.97 £8.31
18	WE30121900 Available to backorder	Bearing Shield	£4.04 £3.37
19	WE31350400 Available to backorder	Sweeper Jockey Spacer	£13.39 £11.16
20	WE31351100 Available to backorder	Sweeper Jockey Cap	£44.03 £36.69
21	WE542033959 Available to backorder	Brkt Guard Location - Orange	£6.11 £5.09
22	WE028662600 Available to backorder	Bolt M8 X 55	£0.65 £0.54
23	WE019479100 Available to backorder	Bolt M10X40 Scarifier 00	£1.99 £1.66
24	WE019483600 In stock	M8 X 20 Flange Bolt	£0.48 £0.40
26	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
27	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
28	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.38 £0.32
31	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
32	8417 In stock	Washer M8 X 25 X 3 Unplated	£0.48 £0.40
33	WE049383800 Available to backorder	M6 Nyloc Flange Nut	£0.47 £0.39
34	WE029425700 Available to backorder	M6 X 25 Caps Screw	£0.38 £0.32
