Countax - - 06 C A Series Pgc

Name: Countax - - 06 C A Series Pgc
SKU: countax_pgc_aseries___06-group
Price: 0.28 GBP
Availability: InStock

Part No. countax_pgc_aseries___06-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Countax A Series

- Power Grass Collector

From To -

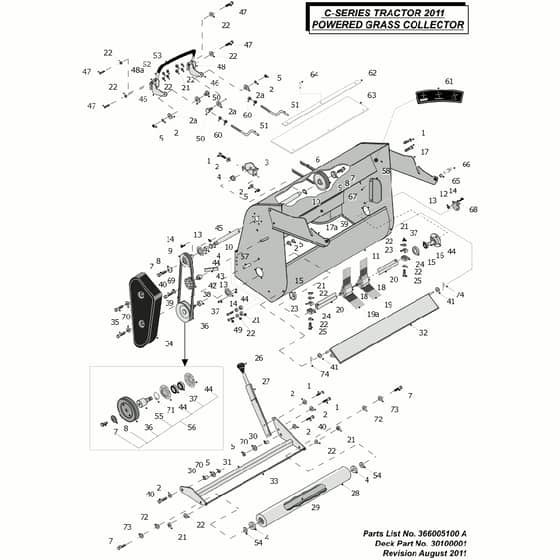

06 C A Series Pgc Parts Diagram

	Part No.	Details
1	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
2	8418 In stock	Nylon Washer (2a)	£0.48 £0.40
2	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
3	WE307025600 Available to backorder	Zzc Series Idler Shaft Plate &	£65.16 £54.30
4	WE10811600 In stock	Bearing (PTO Housing)	£17.52 £14.60
5	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
6	WE228001200 In stock	Grass Collector Belt	£27.20 £22.67
7	8420 In stock	M10 X 25 S.Screw BZP	£0.48 £0.40
8	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£15.24 £12.70
9	WE32727600 Available to backorder	3 Pulley (Non Keyed)	£24.25 £20.21
10	WE31306200 Available to backorder	PTO End Spacer	£36.54 £30.45
11	WE327816100 Available to backorder	300L PGC Main Body Welded Assy	£907.68 £756.40
12	WE30117500 Available to backorder	Sweeper Bearing Cap	£7.20 £6.00
13	2047 In stock	Nut	£0.34 £0.28
14	7274 In stock	M5 X 16mm Pozi Pan	£0.48 £0.40
15	WE32121800 In stock	Slinger	£16.93 £14.11
16	WE31323900 In stock	Brush Stock Spindle (Short)	£39.13 £32.61
17	WE327845100 Available to backorder	2008 Bag Ear Weld Assy	£43.01 £35.84
17	WE327845200 Available to backorder	2008 Bag Ear Weld Assy (17a)	£60.23 £50.19
18	WE14833000 In stock	Bristle Boss	£2.20 £1.83
19	WE14898101 In stock	Yellow Sweeper Bristles Non We (19a)	£1.52 £1.27
19	WE14936301 In stock	Webbed Yellow PGC Bristle	£1.52 £1.27
20	WE17400200 In stock	Brush Stock	£34.27 £28.56
21	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
22	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.48 £0.40
23	WE14834100 In stock	Brush Drive Moulding Small	£4.57 £3.81
24	WE14832900 In stock	Brush Drive Moulding Large	£4.60 £3.83
25	2482 In stock	M6 X 50 Bolt Hex Head BZP	£0.48 £0.40
26	WE14804800 Available to backorder	Lever Knob	£7.74 £6.45
27	WE327171800 Available to backorder	Sweep Roller Height Handle Ass	£143.04 £119.20
28	WE32731900 In stock	Roller-PGC-C-Series	£186.46 £155.38
29	WE183024400 In stock	C Series Sweeper 2000 Internal	£62.52 £52.10
30	WE183024300 Available to backorder	A.C.D Sweeper 2000 Pivot Boss	£12.19 £10.16
31	WE327172400 Available to backorder	Roller Carrier C Series 2000 A	£130.56 £108.80
32	WE327016500 In stock	C Series Swp - Flap Plate	Was £53.62 £44.68 Special Price £38.71 £32.26
33	WE528004401 In stock	C Series Sweeper Roller Scrape	£14.42 £12.02
34	WE148005400 In stock	Belt Guard C & 20.5	£65.05 £54.21
35	WE028662700 Available to backorder	Bolt M8X65mm	£0.64 £0.53
36	WE209044100 In stock	Pulley 5 Sweeper	£59.30 £49.42
37	WE10845500 In stock	Bearing 6203Zz	£14.17 £11.81
38	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
39	WE22832800 In stock	Grass Collector Belt	£23.96 £19.97
40	8416 In stock	Bolt M8 X 50mm	£0.46 £0.38
42	WE31350400 Available to backorder	Sweeper Jockey Spacer	£13.39 £11.16
43	WE30121900 Available to backorder	Bearing Shield	£4.04 £3.37
44	WE27106601 In stock	Bearing Housing 17mm	£30.67 £25.56
45	WE183005700 Available to backorder	98 Model C-Series PGC Idler Sh	£116.76 £97.30
46	WE307024500 Available to backorder	Locking Handle Plate	£18.64 £15.53
47	2184 Available to backorder	M6X16mm Set Screw	£0.48 £0.40
48	WE30149800 Available to backorder	L.H PGC Lever Lock	£11.42 £9.52
48	WE30150300 Available to backorder	R.H PGC Lever Lock (48a)	£11.63 £9.69
49	2148 In stock	Bolt M6 X 20mm (Vac) ( Af037	£0.48 £0.40
50	WE183003800 In stock	PGC Belt Tension Adjust Trunni	£33.49 £27.91
52	WE178966300 Available to backorder	2002 PGC Locking Handle	£60.48 £50.40
53	WE149496600 Available to backorder	Sweeper Black Grip 22Lx0.5Idx0	£20.32 £16.93
54	WE31330002 Available to backorder	Roller Shaft Spacer	£21.96 £18.30
55	WE189497400 In stock	2002 Brush Stock Spindle Long	£30.62 £25.52
57	WE31337600 In stock	Scuff Wheel Hub. Belt Guard Sp	Was £46.94 £39.12 Special Price £32.86 £27.38
58	WE307030100 Available to backorder	C Series Sweeper 2000 Side Pan	£8.82 £7.35
61	WE35937601 Available to backorder	Sweeper Height Decal 2003	£14.94 £12.45
62	WE541113000 Available to backorder	Sweeper & Combi Deck Flap Stri	£24.41 £20.34
63	WE148005200 In stock	2050 PGC Sweeper Air Chute Rub	£16.93 £14.11
64	WE12860100 In stock	Rivet 4.8 X 16mm Alloy Pop 103	£0.35 £0.29
65	WE183025600 Available to backorder	C Series.Westwood Sweeper Ball	£27.25 £22.71
66	WE183010300 In stock	Q.R. Ball End Shaft	£5.83 £4.86
67	WE12824400 Available to backorder	Pop Rivet 4.8mm X 10mm	£1.30 £1.08
69	WE31351100 Available to backorder	Sweeper Jockey Cap	£44.03 £36.69
70	8417 In stock	Washer M8 X 25 X 3 Unplated	£0.48 £0.40
71	2112 Available to backorder	Circlip (PGC Pulley & Shaft)	£0.72 £0.60
72	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.38 £0.32
73	10125 In stock	M10 Single Coil Spring Washer	£0.48 £0.40
74	2202 Available to backorder	1.8 X 1.2 Split Pin	£0.48 £0.40
