Countax - - 04 Main

Name: Countax - - 04 Main
SKU: countax_pgc_aseries___04-group
Price: 0.23 GBP
Availability: InStock

Description

Countax A Series

- Power Grass Collector

From To -

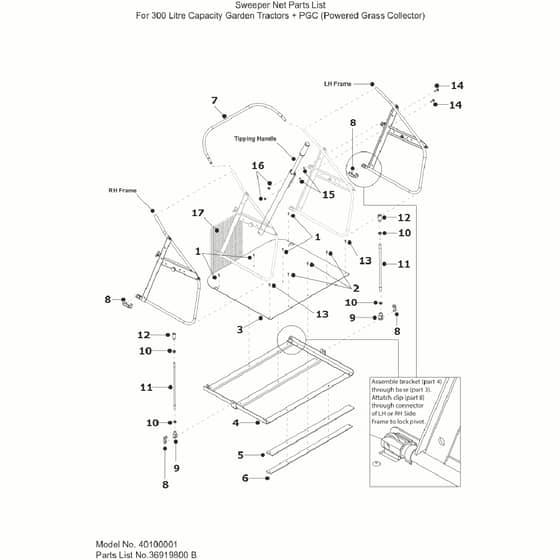

04 Main Assembly Parts Diagram

	Part No.	Details
1	WE12824400 Available to backorder	Pop Rivet 4.8mm X 10mm	£1.25 £1.04
2	WE12860100 Available to backorder	Rivet 4.8 X 16mm Alloy Pop 103	£1.25 £1.04
3	WE408800200 Available to backorder	C Series Net P Clip & Base Ass	£133.44 £111.20

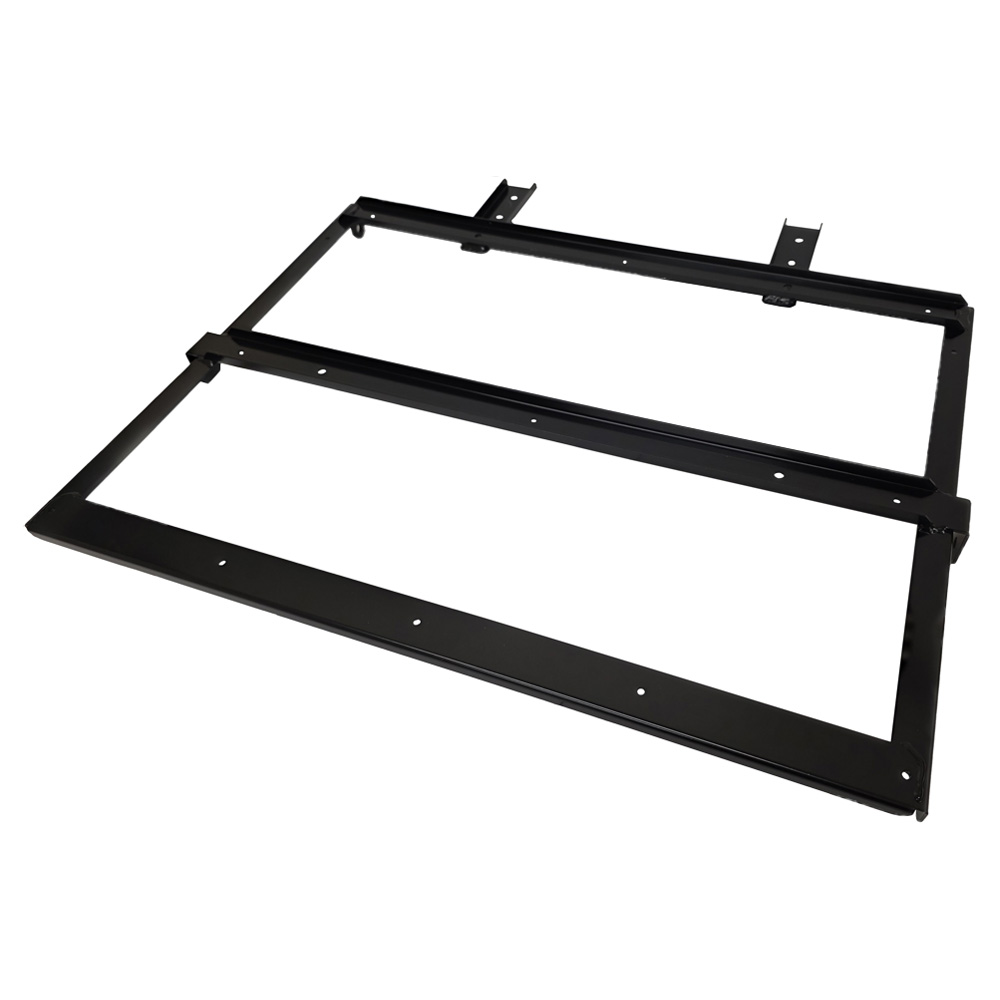

4	WE327812800 Available to backorder	C Series Net Floor Welded Asse	£175.72 £146.43
5	WE14937101 Available to backorder	Venturie PGC Rubber - C Series	£4.10 £3.42
6	WE30146800 Available to backorder	PGC Scraper Plate	£6.50 £5.42

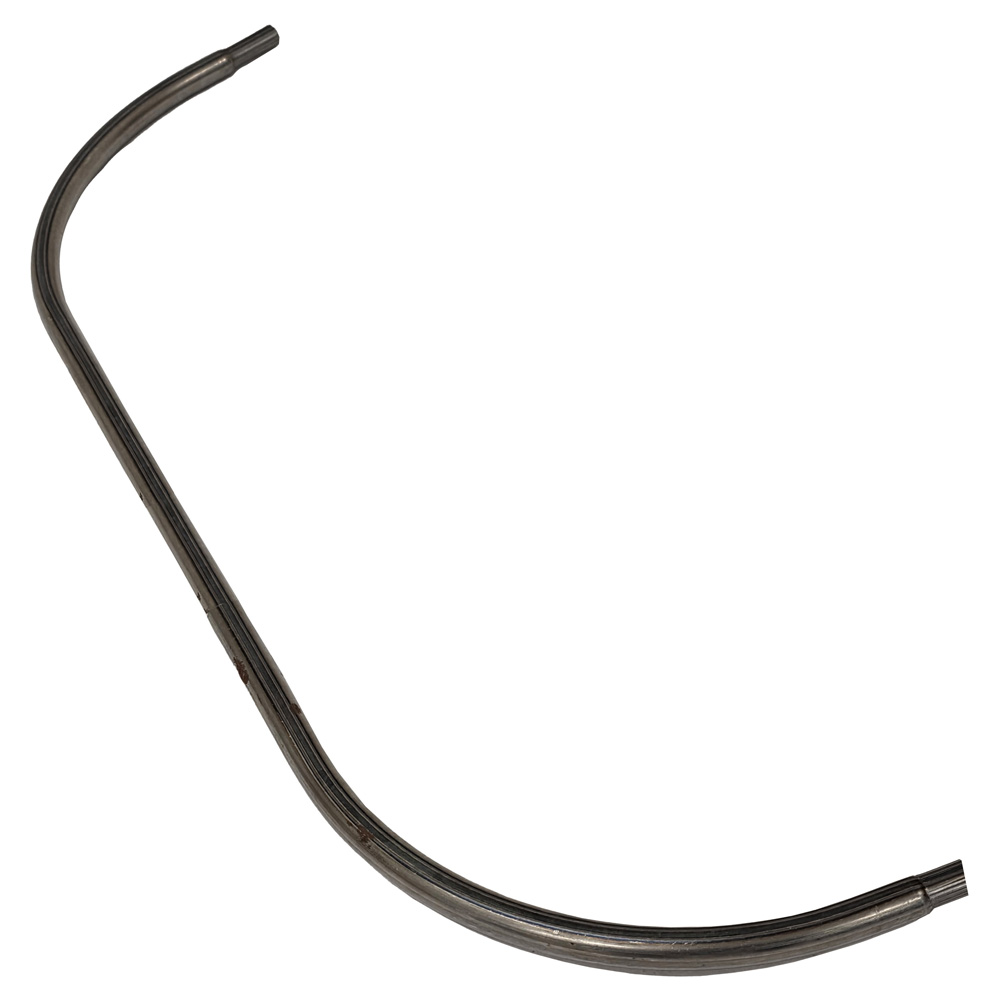

7	WE178974700 Available to backorder	C Series Net Back Tube T007	£116.30 £96.92
8	WE108000500 In stock	10mm Spring Pin Short	£5.62 £4.68
9	WE108000600 Available to backorder	10mm X 1.5 Clevis Short	£16.50 £13.75
10	2173 Available to backorder	M10 Locknut	£0.38 £0.32
11	WE183010402 Available to backorder	Adjuster Link Rod	£74.68 £62.23
12	WE183024900 Available to backorder	Quick Release Ball Joint	£20.72 £17.27
13	WE128000700 Available to backorder	4.8 X 20mm Pop Rivet	£0.96 £0.80
14	WE019482500 Available to backorder	Coach Bolt M8X20 Zinc Plated	£1.90 £1.58
15	WE08819500 Available to backorder	Washer 5.16 T3 Lp Zinc Plated	£1.25 £1.04
16	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
