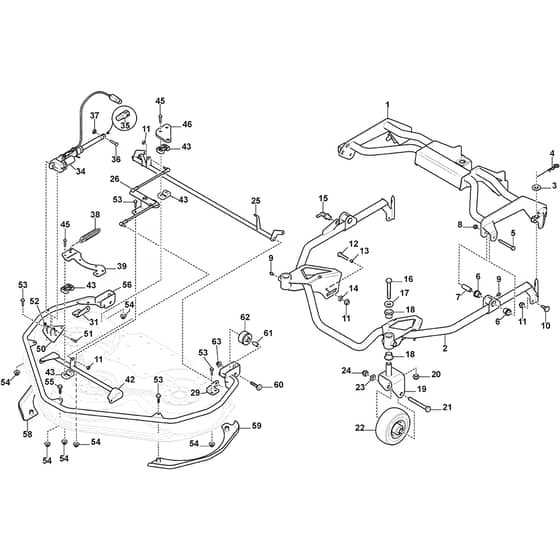

Stiga COMBI RM125H Parts Diagram

Product Name - DECK RM125H COMBI

Model Year - 2011-2018

Model Type - 125C H

Art.N - 13-7822-24

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO1134-7577-01 Available to backorder	Frame Assy	£3,024.00 £2,520.00
3	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
4	MO9598-2001-02 Available to backorder	Spring Pin	£4.78 £3.98

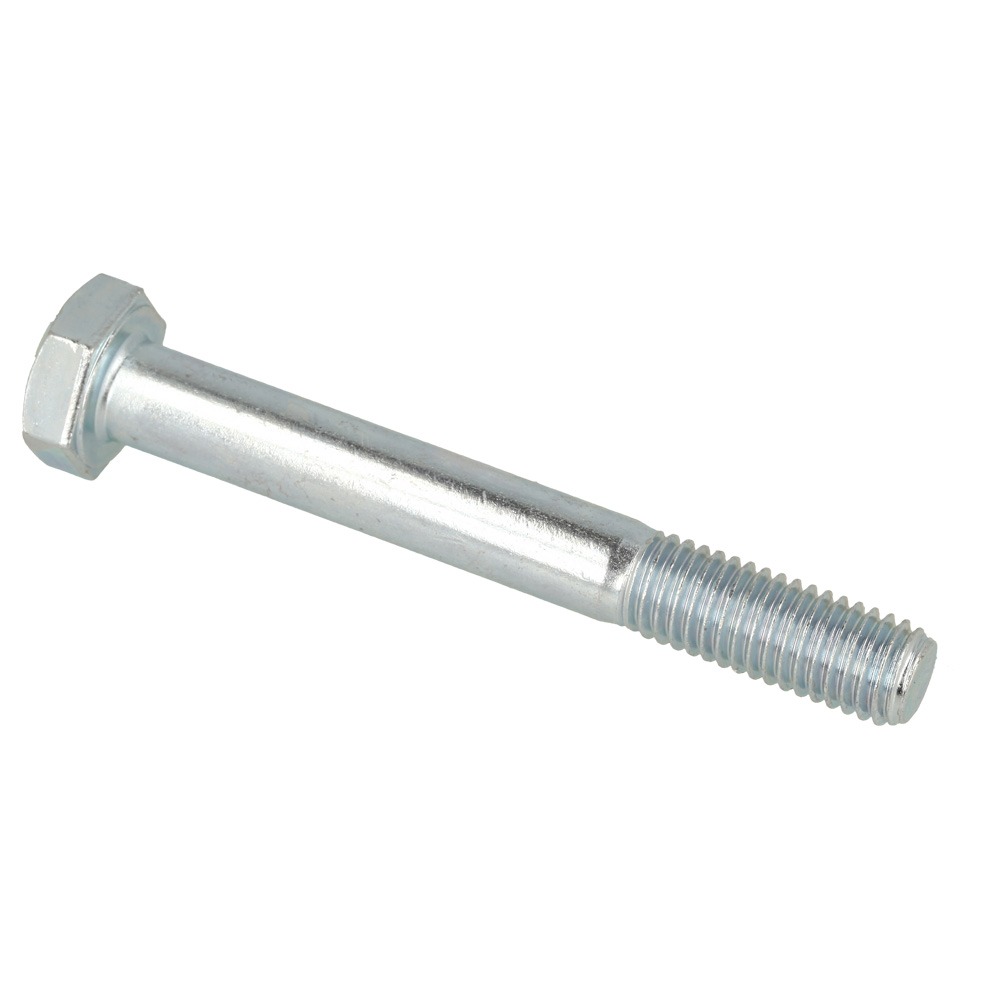

5	MO9997-1080-12 In stock	Screw	£4.08 £3.40
6	MO9544-0002-01 Available to backorder	Bushing	£7.88 £6.57
7	MO1134-7617-01 Available to backorder	Spacer	£10.63 £8.86
8	MO112156602/0 In stock	Nut	£1.40 £1.17
9	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
10	MO1134-0240-01 Available to backorder	Shoulder Screw	£9.50 £7.92
11	MO112155000/0 In stock	Nut	£1.55 £1.29
12	MO112793301/0 In stock	Screw	£1.55 £1.29
13	MO1134-5626-01 Available to backorder	Spacer	£8.87 £7.39
14	MO1134-7595-01 Available to backorder	Spacer	£5.92 £4.93
16	MO9997-1616-02 Available to backorder	Screw	£5.35 £4.46
17	MO112521390/0 Available to backorder	Washer	£1.82 £1.52
18	MO1134-5686-01 In stock	Bearing	£14.22 £11.85
19	MO1134-7477-01 Available to backorder	Wheel Fork Assy	£117.54 £97.95
20	MO112295801/0 Available to backorder	Nut	£1.97 £1.64
21	MO9997-1211-02 In stock	Screw	£5.64 £4.70
22	MO1135-3394-01 Available to backorder	Wheel	£155.60 £129.67
23	MO1134-7410-01 In stock	Washer	£3.10 £2.58
24	MO112156603/0 Available to backorder	Nut	£1.55 £1.29
24	MO1134-7330-01 Available to backorder	Catch Bolt	£137.95 £114.96
25	MO387000162/0 Available to backorder	Rear Axle Assy	£154.86 £129.05
29	MO1134-7490-01 Available to backorder	Bracket-Lh	£38.09 £31.74
31	MO1134-7490-02 Available to backorder	Bracket-Rh	£38.09 £31.74
34	MO118001003/2 Available to backorder	Electric Lifter	£338.62 £282.18
36	MO9646-0098-22 Available to backorder	Rivet	£2.40 £2.00
38	MO1134-5847-01 Available to backorder	Spring	£19.57 £16.31
39	MO337546673/0 Available to backorder	Bearing Plate-Front	£33.79 £28.16
42	MO1134-5427-01 Available to backorder	Front Axle (Grey) 7-14	£97.14 £80.95
43	MO1134-5469-01 Available to backorder	Bearing Half	£11.69 £9.74
45	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
46	MO1134-5471-01 Available to backorder	Bearing Plate-Rear	£19.63 £16.36
50	MO1134-5981-01 Available to backorder	Bracket Assy	£35.20 £29.33
51	MO9646-0105-22 Available to backorder	Rivet	£2.95 £2.46
52	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
53	MO9959-0820-16 In stock	Screw	£1.55 £1.29
54	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
55	MO112800815/0 Available to backorder	Screw	£1.55 £1.29
56	MO387869277/0 Available to backorder	Protection Frame Assy-Grey	£450.47 £375.39
58	MO1134-7520-02 Available to backorder	Wear Protection Assy-Rh	£83.81 £69.84
59	MO1134-7520-01 Available to backorder	Wear Protection Assy-Lh	£83.81 £69.84
60	MO9897-1060-12 Available to backorder	Screw	£3.52 £2.93
61	MO1134-0041-04 In stock	Bushing	£11.06 £9.22
62	MO1134-3434-01 In stock	Roller	£13.18 £10.98
63	MO9739-1031-22 In stock	Nut M10	£1.97 £1.64
